Brother GTX-4 Service Manual

6-205
Disassembly / Replacement / Adjustment
6-2-27. Replacement of maintenance solenoid valve assy

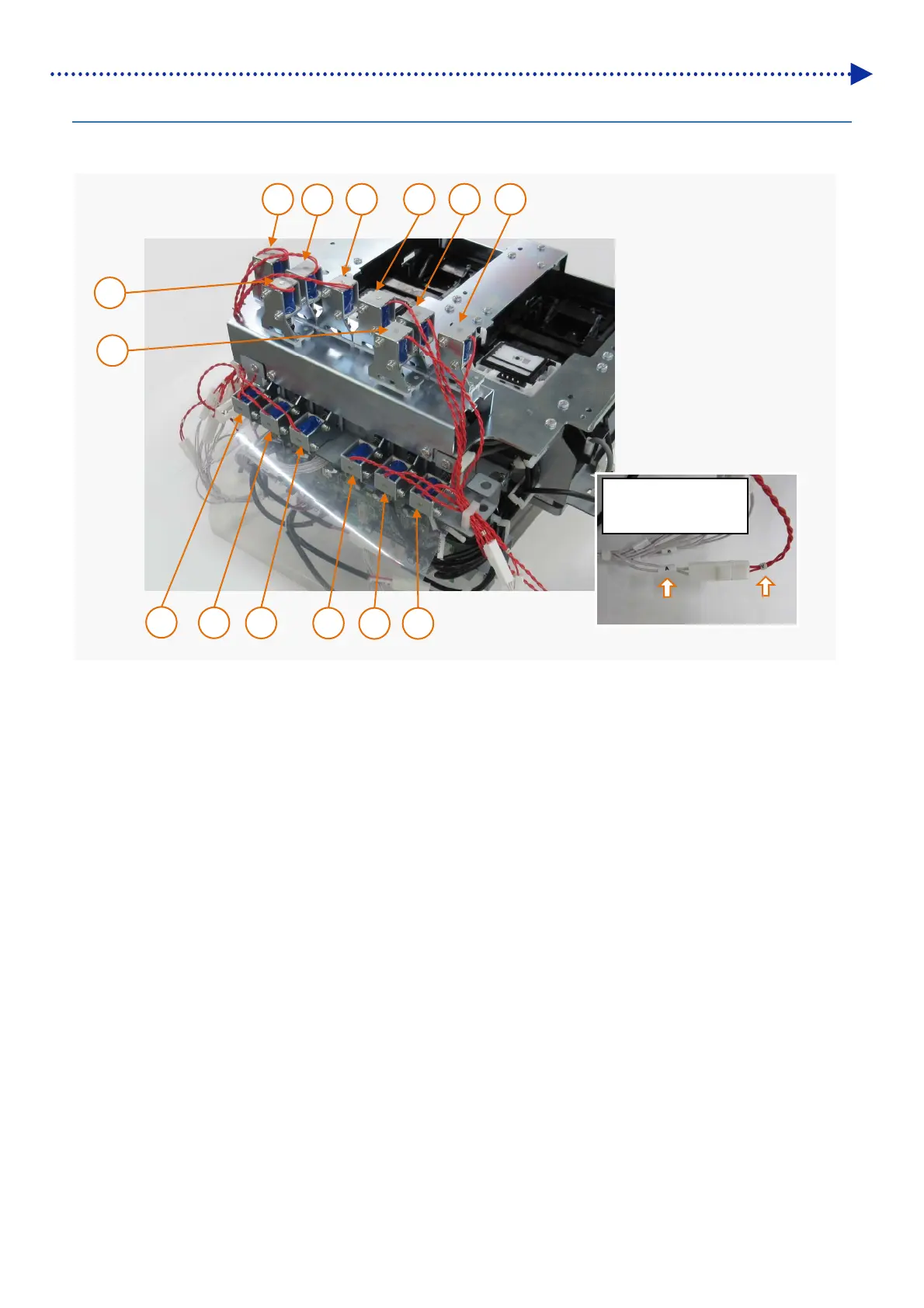

Layout of maintenance solenoid valve assy
Color ink
A: Color bamboo spear waste ink solenoid
B: CMY waste ink solenoid
C: Black waste ink solenoid
D: Color bamboo spear cleaning solenoid
E: CMY cleaning solenoid
F: Black cleaning solenoid
G: Color bamboo spear air solenoid
White ink
K: White bamboo spear waste ink solenoid
L: W1 to W3 waste ink solenoid
M: W4 waste ink solenoid
N: White bamboo spear cleaning solenoid
P: W1 to W3 cleaning solenoid
R: W4 cleaning solenoid
S: White bamboo spear air solenoid
S
M
L
K
G
C
B A
R
P
N F E
D
Identification mark
band
