Disassembly / Replacement / Adjustment

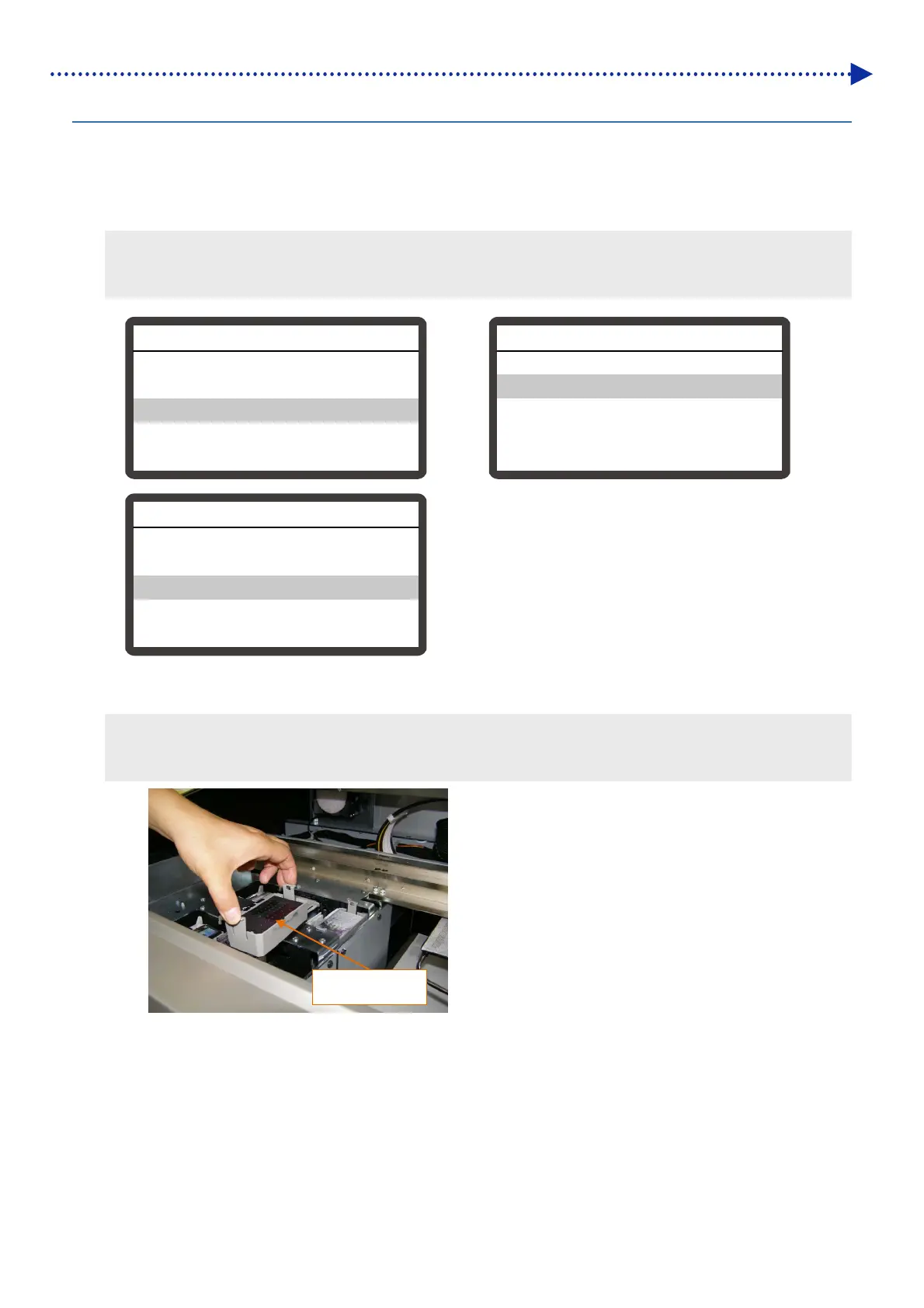

6-1-24. Replacement of the flushing case
Disassembly
(1) Select the [Output Check] from the Advanced menu and select the [Carriage Test] > [To Center]. Press and hold
down the power button to power off.
<IMPORTANT>
ï‚· Please complete the task within 30 minutes, in order to prevent the print heads from drying up.
Long-hour continuation of a head without capping may lead to non-ejection of ink-jet droplets.
(2) Remove the flushing case from the maintenance unit.
<IMPORTANT>
ï‚· Ink droplets will drop off from the hole on the bottom of flushing case. Press waste cloth against the bottom surface, and lift
the flushing case vertically to remove.
Flushing case
Print Position Adjust
Input Check
Output Check
Setting special work mode
Exchange Filter
Advabced Menu
Solenoid Test
Carriage Test
Wiper Test
Output Check
To Center
To Flushing Position
To Cap Position OK
Carriage Test
To Next Page
