6-158
Disassembly / Replacement / Adjustment
6-2-10. Replacement of panel main unit assy
In the case that the power is turned on, press the power switch to turn off the power.
Unplug the power cord from the main unit and start the work after five or more minutes have passed.

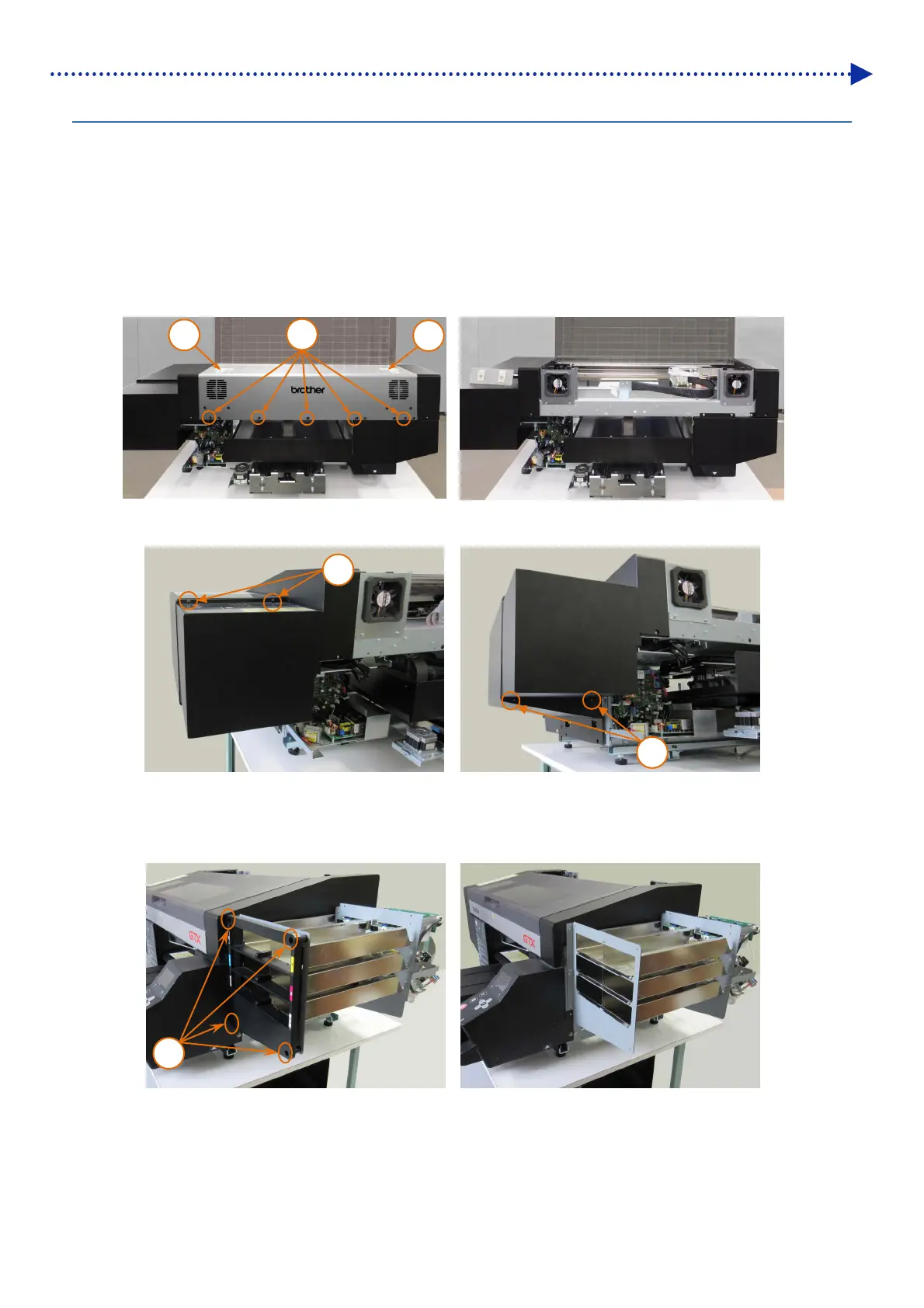

Disassembly
(1) With reference to "6-2-6. Replacement of power circuit board plate assy", detach cover PB and cover DBR.
(2) Detach the mist fan filter located on either side of the cover UB.
(3) Remove the five screws fixing the cover UB to detach it.
(4) Remove the four screws fixing the cartridge cover B on the right rear of the main unit to detach it.
(5) With reference to "6-2-9. Replacement of AC inlet", detach the cartridge cover.
(6) Remove the four screws fixing the cartridge front cover to detach it.
6
4
Cartridge cover B
4
2
2
3
To Next Page
