Brother GTX-4 Service Manual

2-24
Installation and preparation
2-5-2. V-rating setting
Set V-rating after replacing the print head or completing the setup procedure.
(1) Make sure that a connection of USB 2.0 cable or LAN cable is made between the printer and your PC.
(2) On the PC, from [All Programs] in the Start menu, select the "GTX-4 Maintenance" from "Brother GTX-4 Tools".

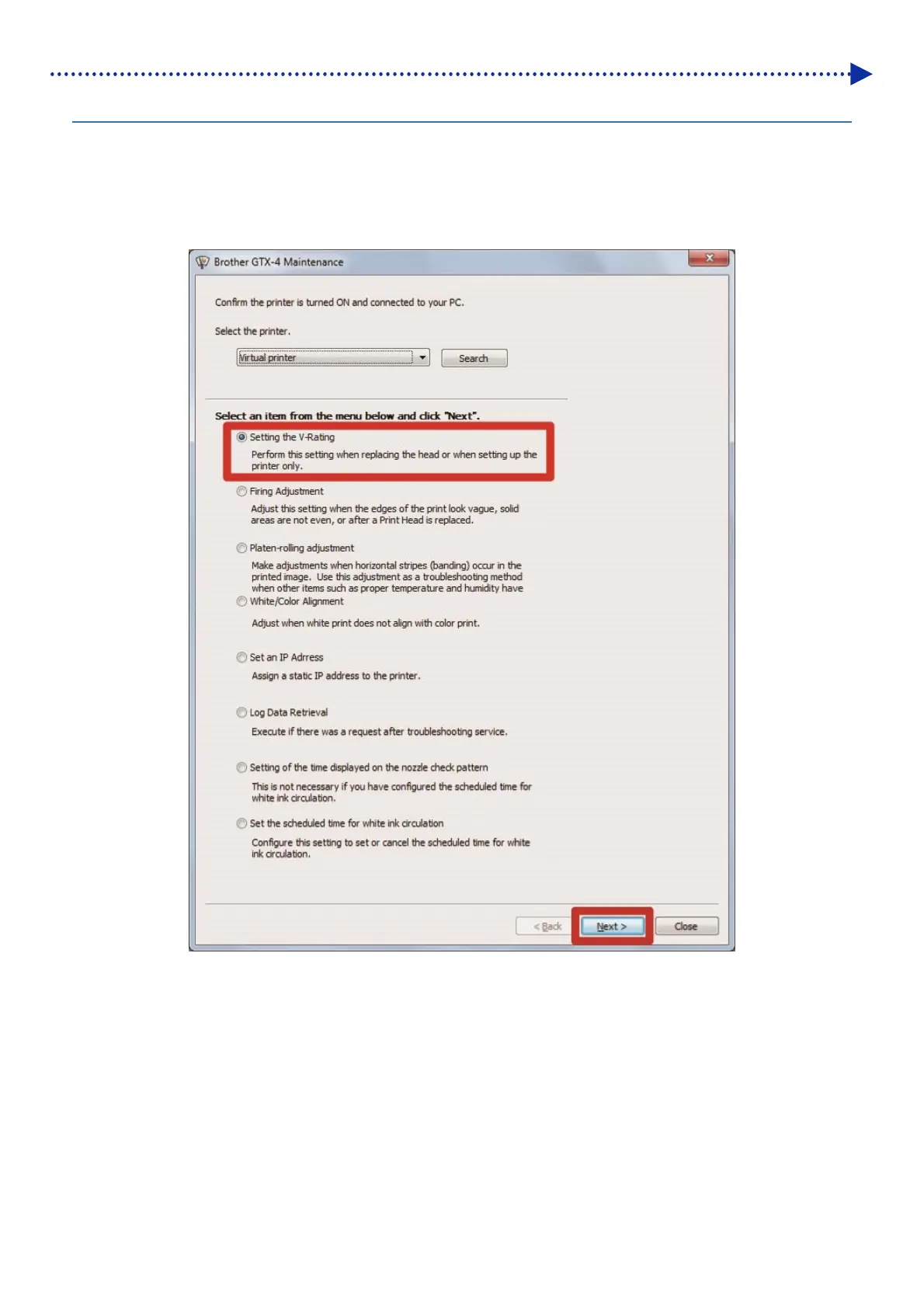

(3) After the window shown below appears, select [V-rating's settings:] and click [Next].
(4) Perform the required operation by following the on-screen instructions in the dialog box.
After the adjustment is completed, the currently displayed screen will go back to the window mentioned above.
