1-9
Before Using Your Printer for the First Time

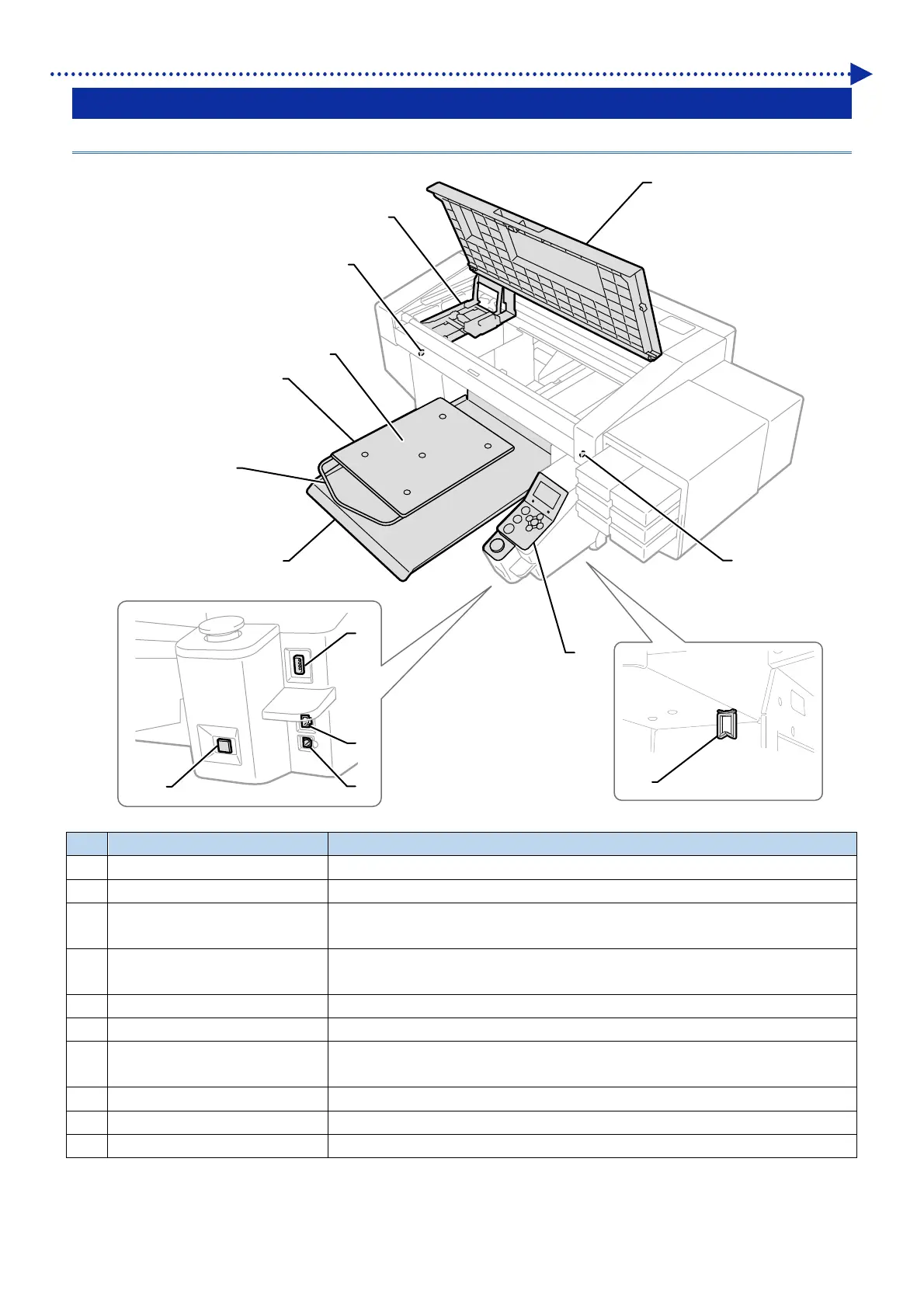

1-4. Name and function of each component
1-4-1. Front part
X0031
1
13
3
8
9
10
11
12
7
6
5
4
3
2
No. Name Function
1 Front cover Open this cover when cleaning the internal area of the printer.
2 Carriage Holds the print head.
3 Obstacle sensor
Checks the presence of any obstacles by their height (such as wrinkled T-shirt)
that are within range to collide with the print head.
4 Platen sheet
It helps to keep the T-shirt from moving/shifting during printing so that an image
can be clearly printed.
5 Platen It secures a T-shirt in place, which is to be printed.
6 Shoulder bar Align the position of a T-shirt with this bar.
7 T-shirt tray
This T-shirt tray holds such portions of T-shirt that droop down on it and feeds
the entire T-shirt into the printer.
8 USB flash insertion slot Insert a USB flash memory into this slot.
9 LAN port Into this port, insert the LAN cable which is to be connected with a PC.
10 USB port Into this port, insert the USB cable which is to be connected with a PC.
To Next Page
