Disassembly / Replacement / Adjustment
6-2-31. Replacement of tank sensor
In the case that the power is turned on, press the power switch to turn off the power.
Unplug the power cord from the main unit and start the work after five or more minutes have passed.
Disassembly

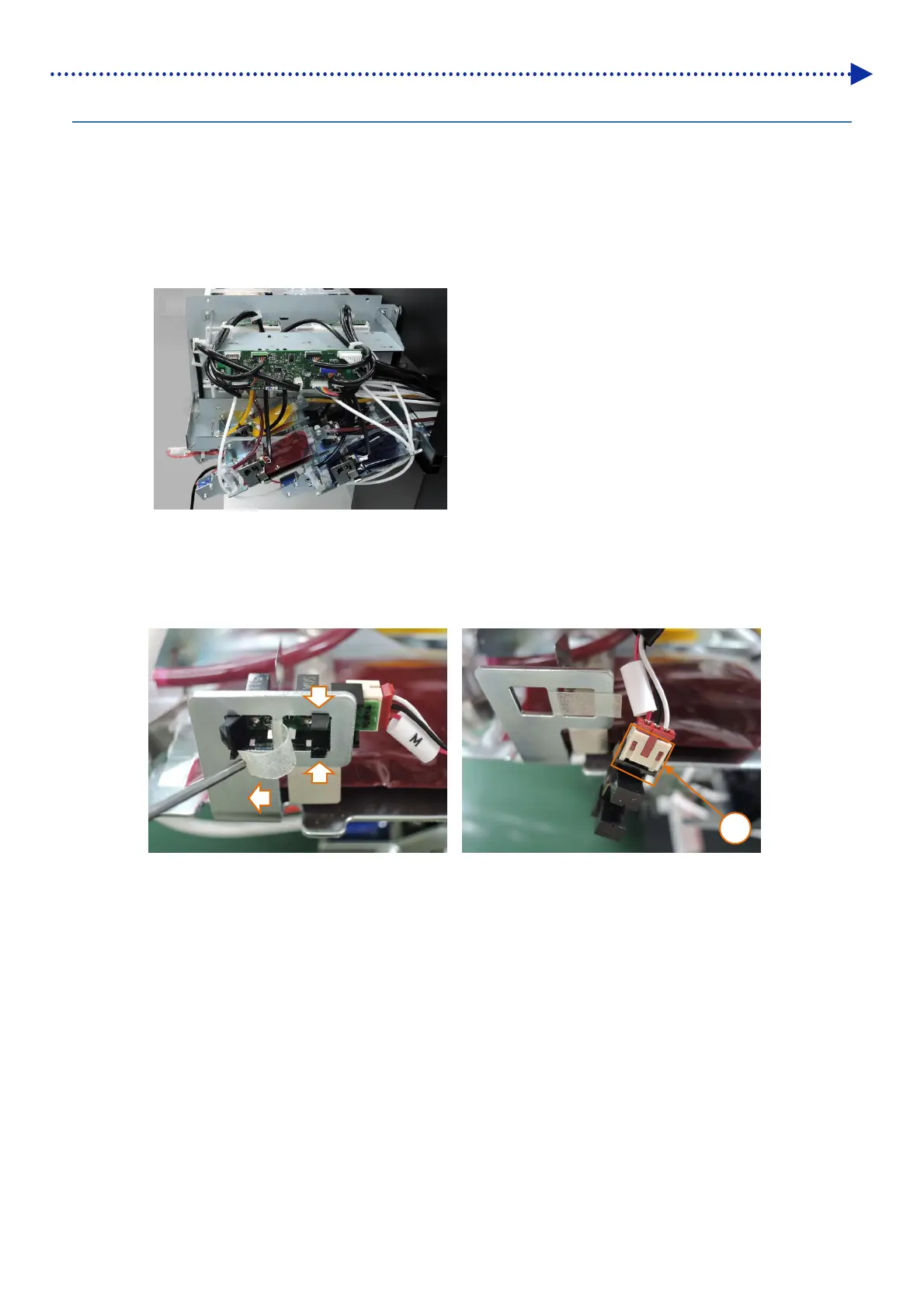

(1) With reference to step (4) described within "6-2-10. Replacement of panel main unit assy", remove cartridge cover
B.
(2) Remove sheet applied to the sensor section, and unhook the latch of the target photo interrupter from the sensor
holder to detach the interrupter.
(3) Detach the photo interrupter from the connector.
Assembly
(1) To perform the assembly, take the reverse procedures to disassembly operation.
