Delta DVP-ES3 Series Hardware Manual

Chapter 4 Installing Hardware
4-37
4_

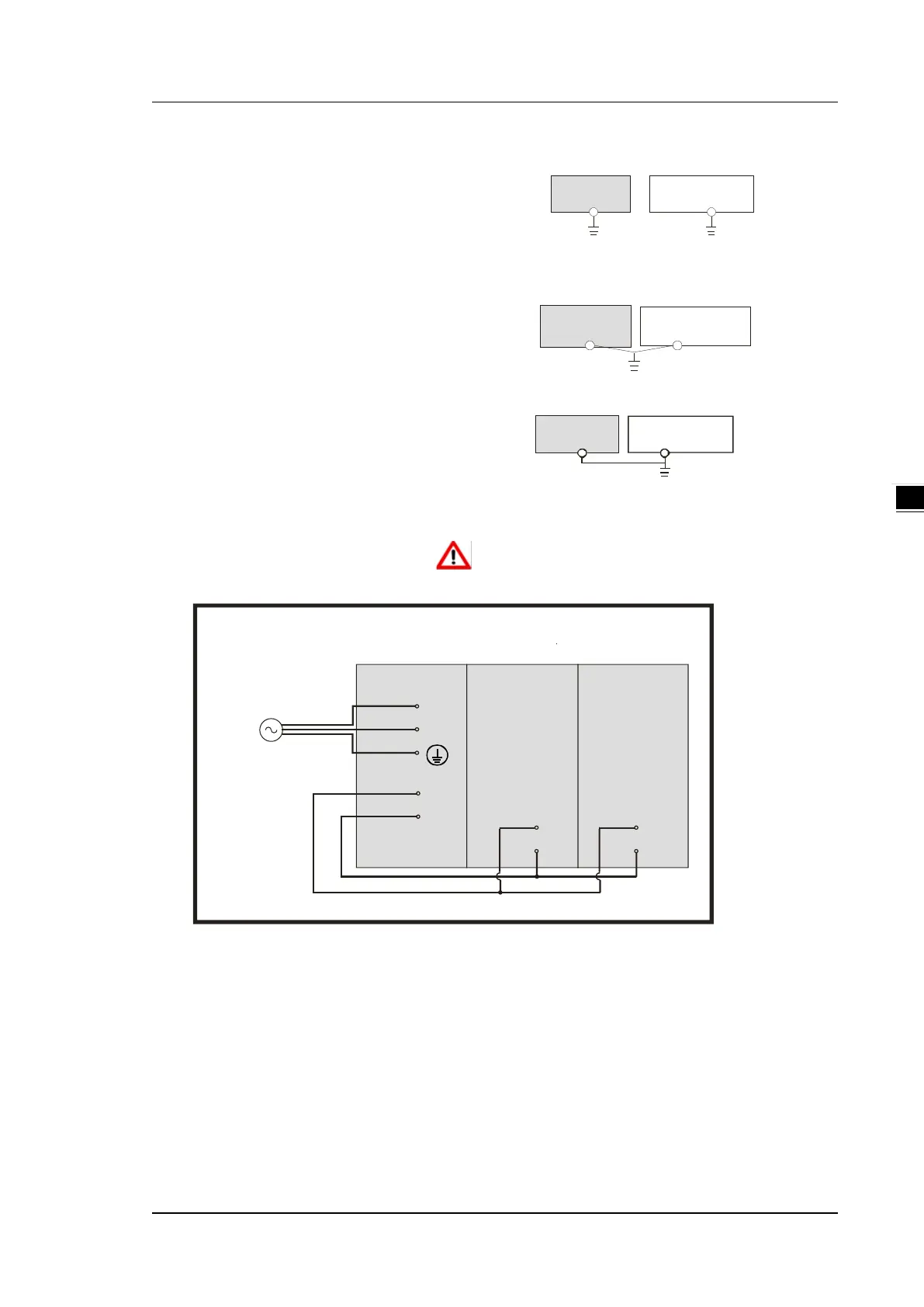

4.2.5.2 Grounding
 The diameter of the ground should not be
less than the diameters of the cables
connected to the terminals L and N.
 If using multiple pieces of equipment, use
a single-point ground.
ES3/EX3
CPU Module
Another piece of
equipment
The single-point ground is better.

If you cannot use a single-point ground,
use a common-point ground.
ES3/EX3
CPU Module
The common-point ground is permitted.
Another piece of
equipment

Do not connect equipment ground wires
together as shown on the right.
ES3/EX3
CPU Module
The equipment can n ot be grounded i n t his way.
Another piece o f
equipment
4.2.5.3 Wiring Power Supply
PS02
SX3 SV3/
06XA
24V
0V
Control B ox
24V
0V
L
N
1 00~240V
24V
0V
