Chapter 9 Ethernet Specification and Operation
9-85
Item Description
32bit Unsigned decimal: K+ Number
32bit Hexadecimal: H + hex Number
32bit Octal: O + octal Number
32bit Binary: B + binary Number
32bit Float: float Number
64bit Double: float Number
“On” / ”Off”
“ON”: the status of Bit is ON.
“OFF”: the status of Bit is OFF.
If the authority level for the logged in user is READ, this column is
read only.
Set Value
Cha
nge the value for the device to be monitored
Type the value in and click “SET” and the changed value appears
in the VALUE column as the image shown above.
If the authority level for the logged in user is READ, this column is
“Set”
Click “
Set” to confirm the changed value.
If the authority level for the logged in user is READ, this column is
read only.
9.11.5 Diagnostic
You can set diagnostic related configurations here.
9.11.5.1 Hardware Status Page
This page displays information on hardware status and CPU module. You can set CPU to run or stop. Here also shows
the CPU running status and error codes.

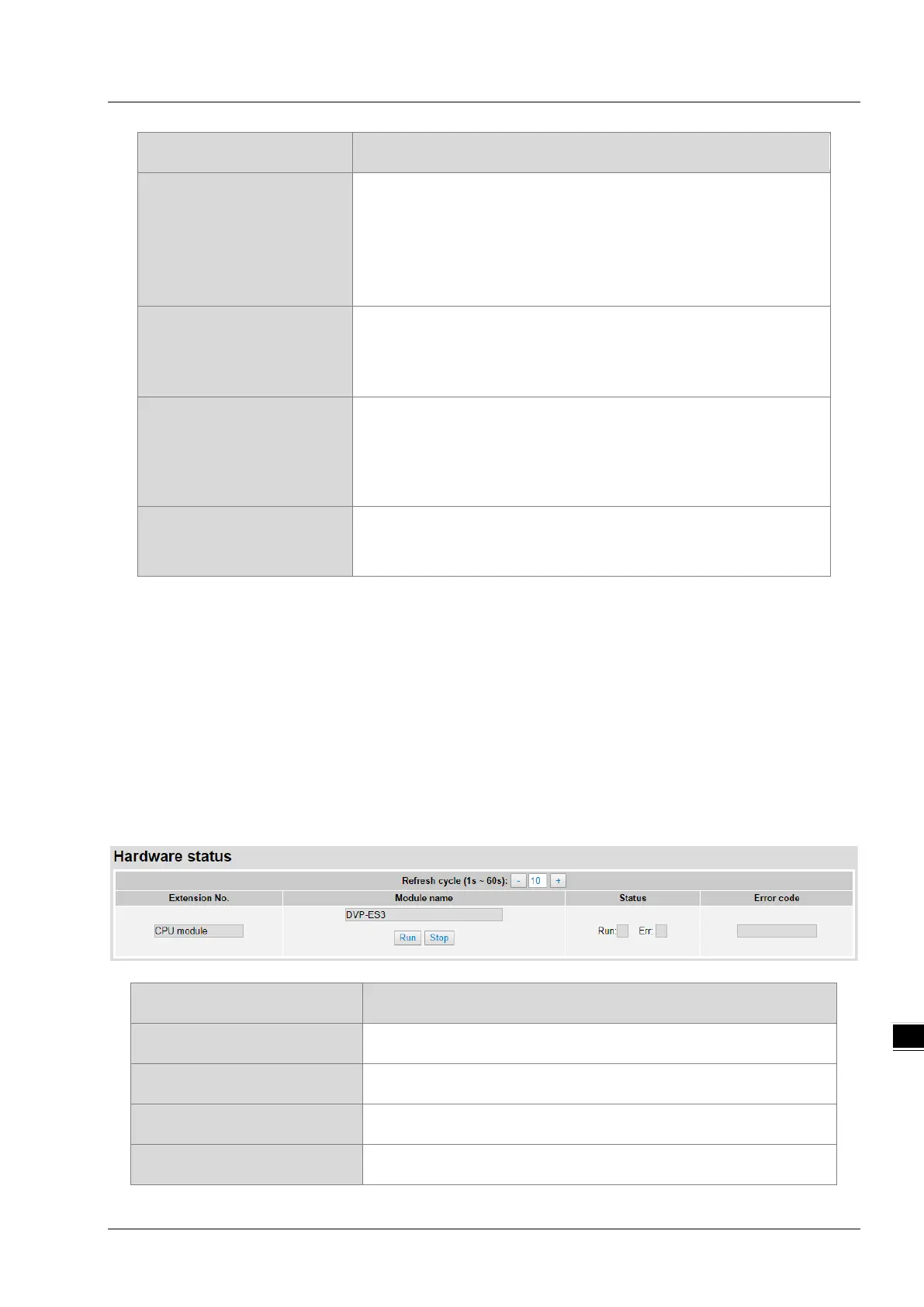

For DVP-ES3/EX3/SV3/SX3 Series, the hardware status page looks like below.
Item Description
Refresh cycle Refresh cycle time; default: 10; unit: second
“-“ Minus; click once to decrease 1; the minimum value is 1
“+“ Plus; click once to increase 1; the maximum value is 60
CPU module name Name of the CPU module; read only
