Chapter 4 Installing Hardware

4-15

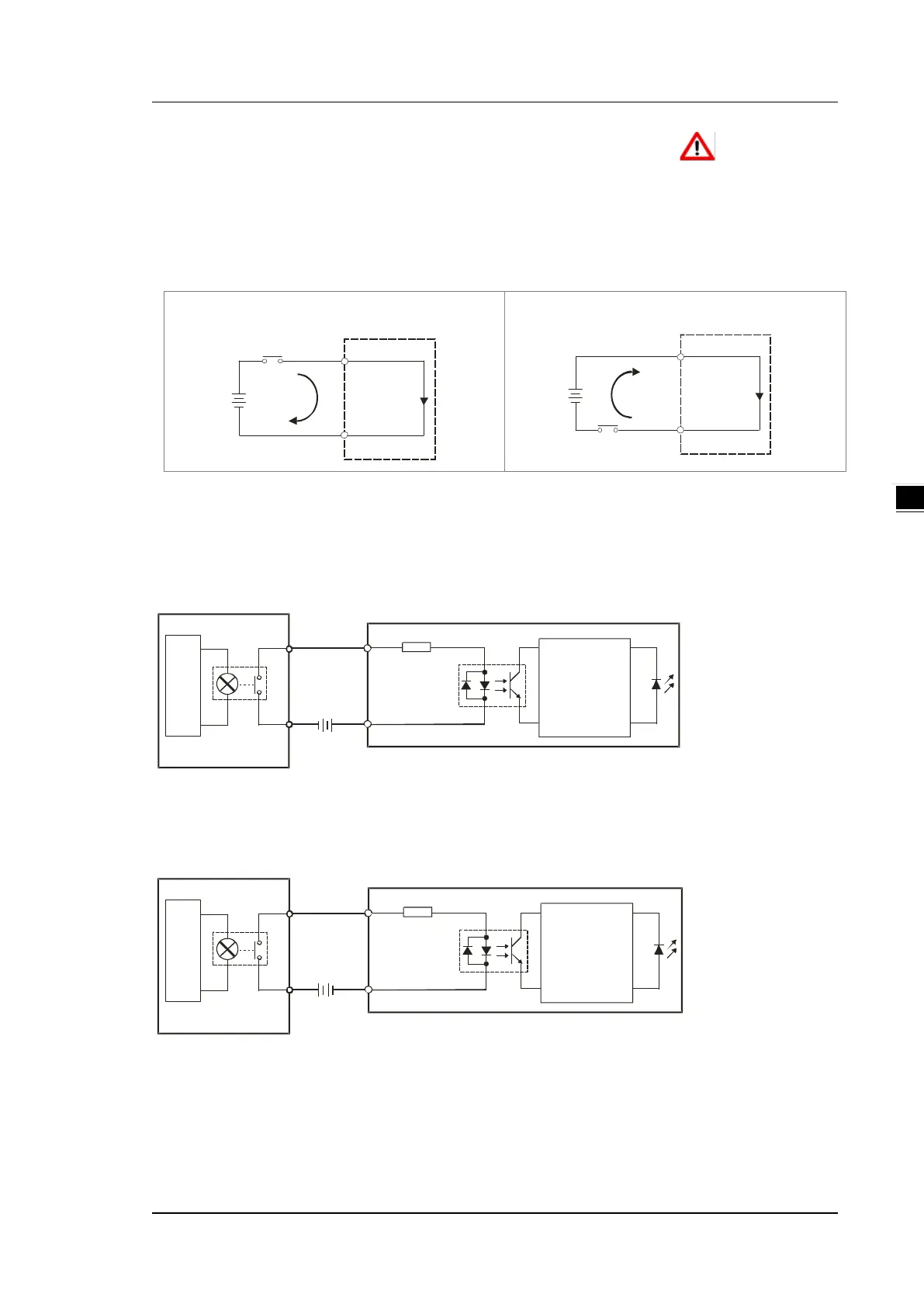

4.1.6 Wiring Digital Input Terminals on CPU Modules

4.1.6.1 Direct Current Power Supply (24 VDC)

When the digital input signal is DC input, there are two DC input types, Sinking and Sourcing. See the

definition below.



Sinking



Sourcing

Sink = The current flows into the X end.

S/S

Source = The current flows from the X end.

S/S

4.1.6.2 Relay Types

• Sinking

S/S

I/O

Internal circuit

24VDC

Inter nal circuit

Sourcing

S/S

I/O

Internal circuit

24VDC

Internal circuit
