DVP-ES3/EX3/SV3/SX3 Series Hardware and Operation Manual
9-40
_9
9.7 Studio 5000 Software Operation
This section provides an overview using Ethernet/IP to connect to a Delta Ethernet/IP Adapter with third party software.
For this example we use the Rockwell Automation software Studio 5000.

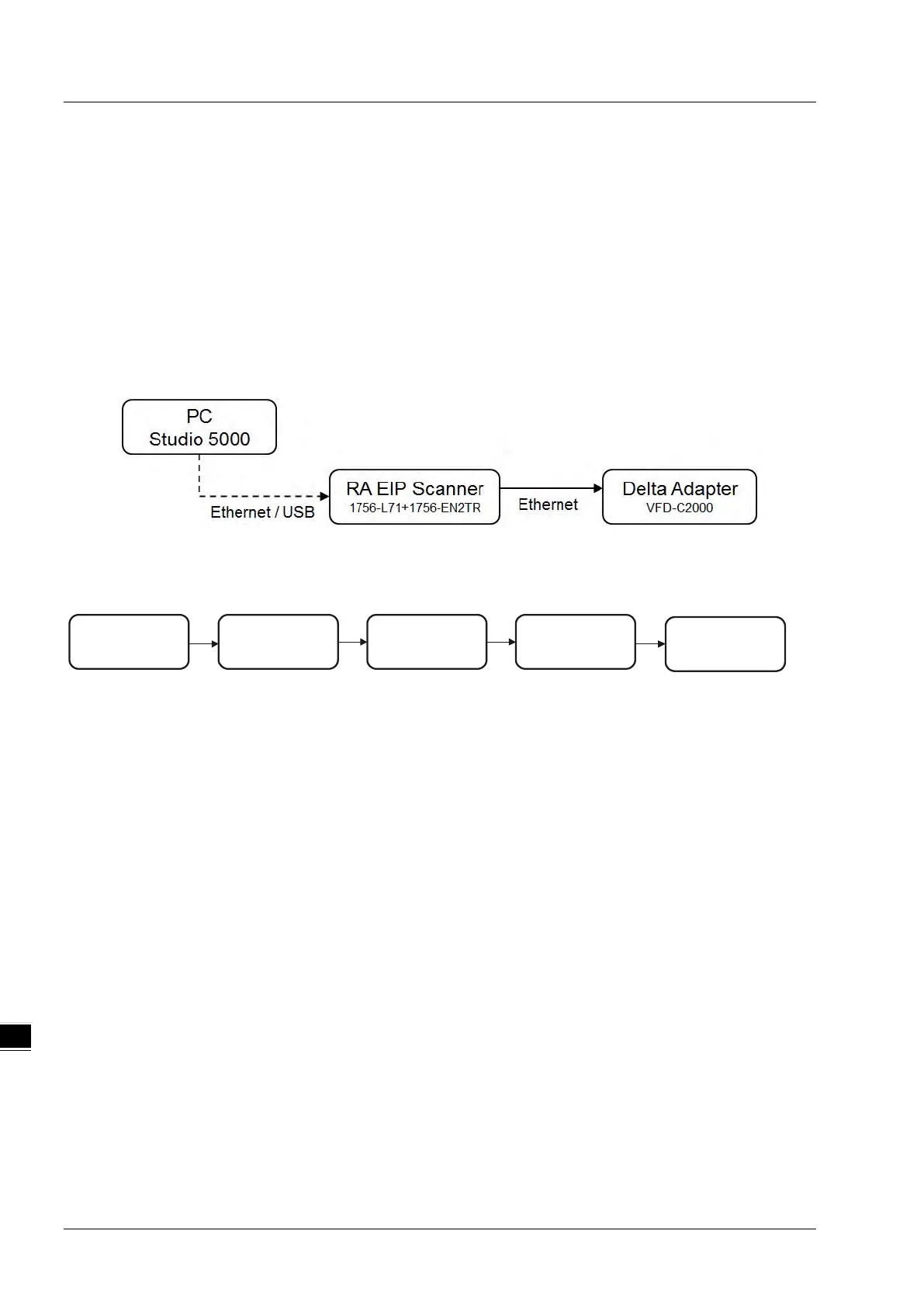

9.7.1 Architecture
The Rockwell Automation (RA) EIP Scanner uses Ethernet to connect to a Delta Adapter. The PC connects to the RA
Scanner through Ethernet or USB.
※
Rockwell Software Studio 5000, ControlLogix, RSLogix are registered trademarks of Rockwell Automation, Inc.

Operation Steps:
Download
Data Exchange
Data Exchange
Set up
Data Exchange
Table
Network View
9.7.2 Create a New Project
 Open Studio 5000 and under Create, click New Project.
 Select a PLC and select the chassis.
 Click Finish to create the new project.
 After creating the project, Studio 5000 displays the Controller Organizer and workspace.
9.7.3 Create a Scanner
Next, add the 1756-EN2TR Ethernet/IP module, and then connect to the Ethernet/IP devices through the Ethernet/IP
module.
