Delta DVP-ES3 Series Hardware Manual

Chapter 11 EtherCAT Function and Operation
11-3
11

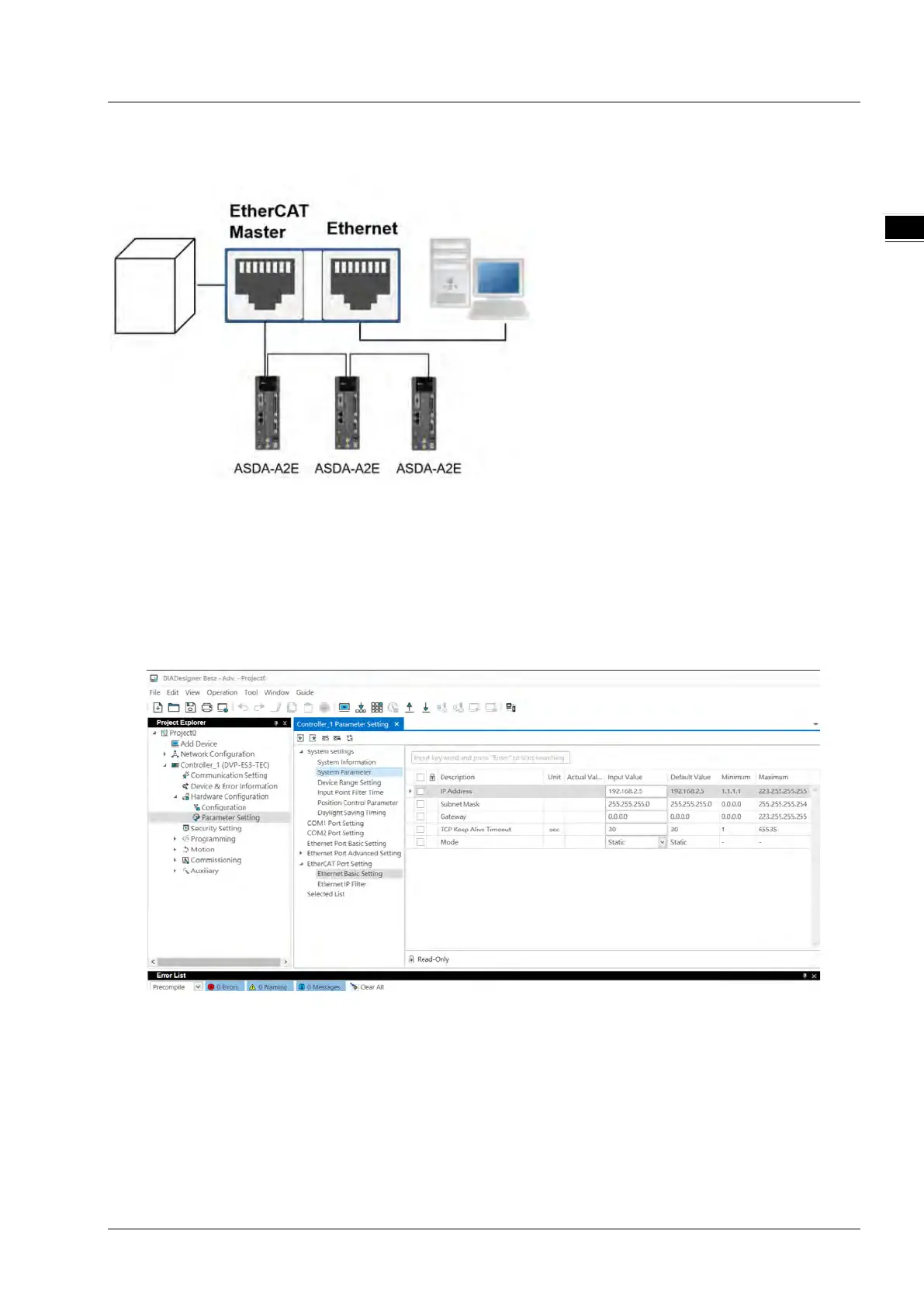

11.3 Wiring
11.4 IP Settings
 Before the execution of API2820 INITEC instruction, the EtherCAT port can be seen as Ethernet port. Go to the
EtherCAT setting web page to see the basic information and perform firmware updates.
 For configuration on DVP32ES300TEC, o to DIADesigner → Controller (DVP-ES3-(TEC)) → Hardware
Configuration → Paremeter Setting → EtherCAT Port Setting → Ethernet Basic Setting.
Note: You can use IP Manager Tool, but do not use it to set up the IP address to avoid conflicts with the PLC CPU
project.
11.5 SM/SR
Refer to API 2803 DRVIC instruction from programming manual for more information on SM/SR.
