Delta DVP-ES3 Series Hardware Manual

Chapter 9 Ethernet Specification and Operation
9-35
9_
9.4.7 Diagnosis
EIP Builder can provide diagnostic information on the connection and data mapping status. For the connection status,
refer to the Adapter connection status and indicator in the Network View tab; and for data mapping status and error
codes, refer to Network_0 in the data mapping tab.


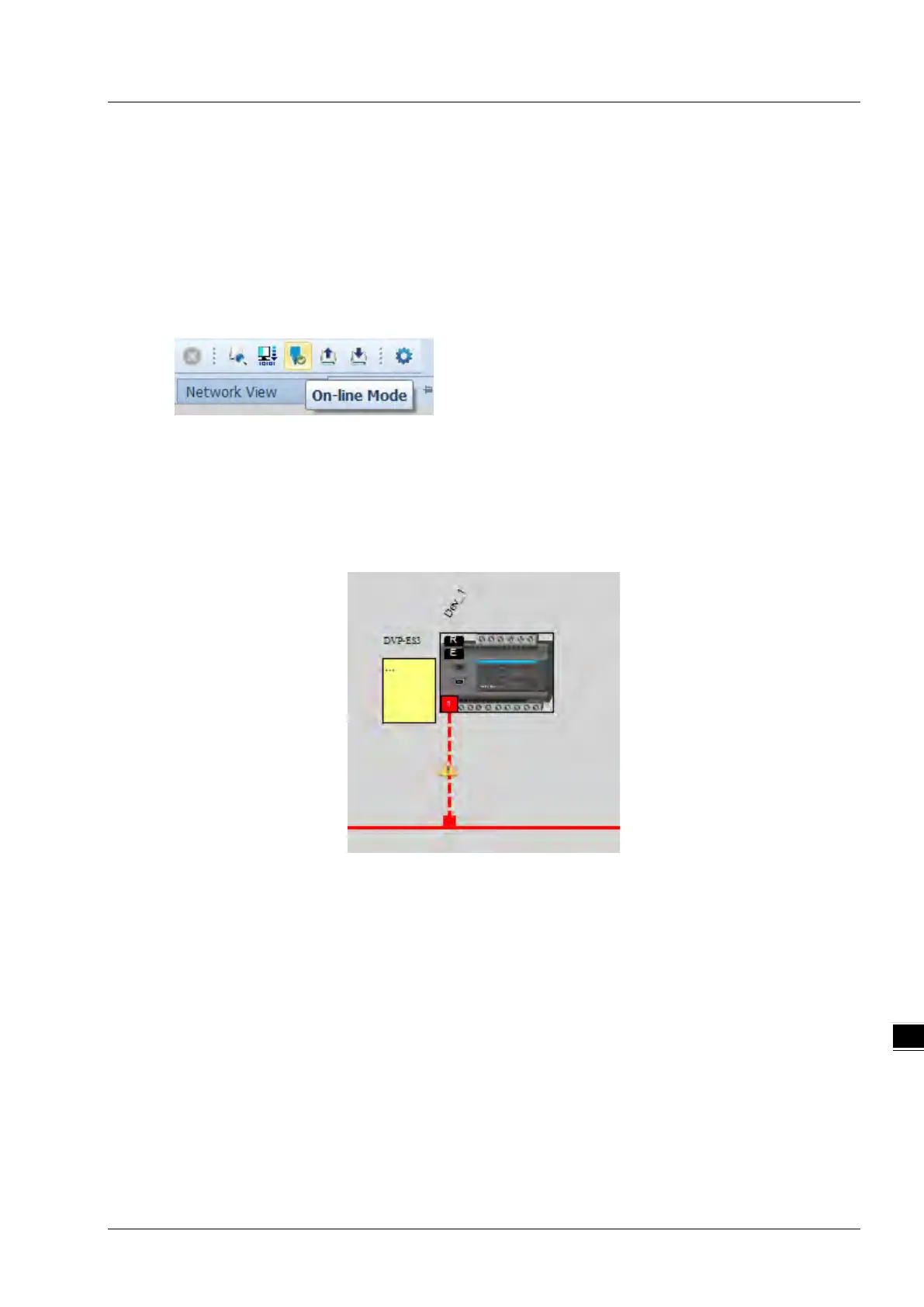

Steps to view network status
1. Click the On-line Mode button on the toolbar.
2. Network View (Connection Status)
a) Click the Network View tab to check the device status from the indicators: for example RUN / STOP and
Error indicators for the PLC.
b) The dotted line and the warning sign indicate a connection error, as shown below.
3. Network_0 (Data Mapping):
Click the Network _0 tab to check the data mapping status and the error codes for Network_0. For error code
definitions, refer to Section 9.6.2.
