Chapter 8 Hardware Configuration

8-3

8.1.2 Configuring a Module

For DVP-ES3 Series, you need AIO Wizard to configure its right-side modules. Click AIO Wizard Setting to open the

wizard. You can

Upload Module

Enter Edit Mode

by clicking the relevant radio buttons. The following example

demonstrates how to upload module data for a project of ES3+04DA-E2+DVP04AD-E2+04PT-E2.

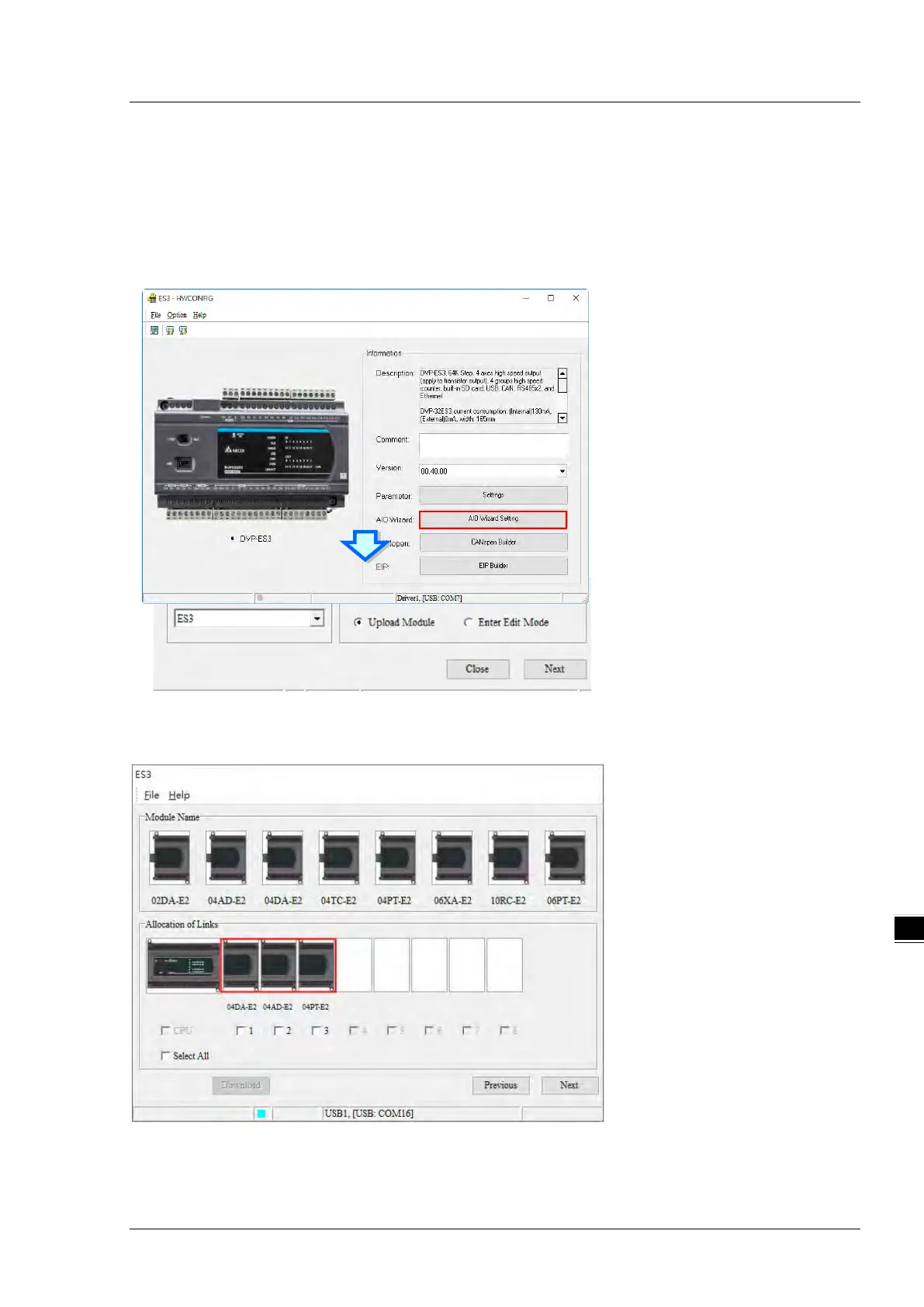

Step 1. Go to AIO Wizard from HWCONFIG of ISPSoft and then click

Upload Module

Step 2. Click the module that you need to set up in the section of Allocation of Links to enter its setting page.

DELTA_IA-PLC_DVP-ES3-EX3-SV3-SX31
