(4) After you successfully download the hardware configuration to the CPU module, the BUS FAULT
LED indicator on the CPU module is OFF. Close the
HWCONFIG
window. If the BUS FAULT LED
indicator on the CPU module is still ON or blinking, the CPU module is in an abnormal state. Make
sure the actual hardware configuration is the same as the hardware configuration in the
HWCONFIG
window, and refer to the operation manual for more information about eliminating the error. Refer to
Chapter 8 for more information about HWCONFIG.

Downloading the program

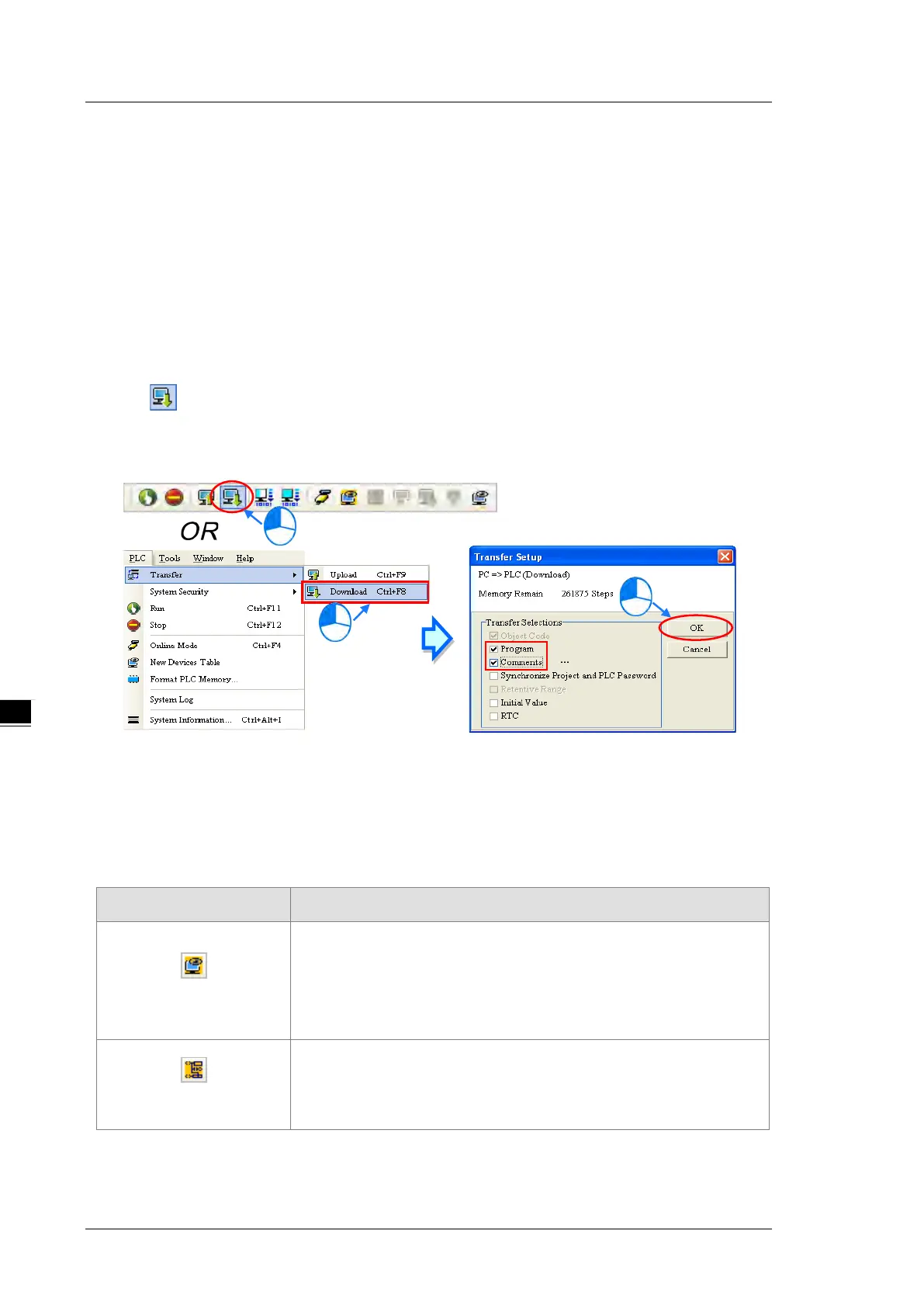

After the program compiles, on the
PLC
menu point to
Transfer
, and then click
Download
. You can also
click on the toolbar after the program compiles. In the
Transfer Setup
dialog box select the
Program
checkbox and the
Comments
checkbox so that you can upload the program in the CPU
module later, and then click
OK
.
6.6.3 Connection Test
After you download a program to a PLC, you can monitor the execution status of the PLC through ISPSoft.
ISPSoft provides two monitoring modes; device monitoring mode and program monitoring mode.
Monitoring mode Description
Device monitoring mode
You can monitor the status of the devices in the PLC through the
monitoring table. In this mode, ISPSoft updates only the status of the
devices. The current program in ISPSoft does not have to be the same as
the program in the PLC.
Program monitoring mode
In this mode, the operating status of the program is displayed in the
program editing window. The present program in ISPSoft must be the
same as the program in the PLC.
*. You can enable the device monitoring function without program monitoring; however, if you enable the program
monitoring function, the device monitoring function is also enabled.
