Chapter 7 Memory Card
7.6 Backing Up a Project
If the backup source or backup destination is a DVP series CPU module or memory card, make sure that
ISPSoft/DIADesigner is connected to the module. During backup, the CPU LED and Error LED blinks
alternatively and SM452 flag is ON. After the backup is done, the CPU LED and Error LED stops blinking and
SM452 flag is OFF. For ISPoft operation, refer to Section 2.4 in the ISPSoft User Manual or for DIADesigner,
refer to Chapter 5 in the DIADesigner User Manual for more information.
The following operation demonstration is for ISPSoft.

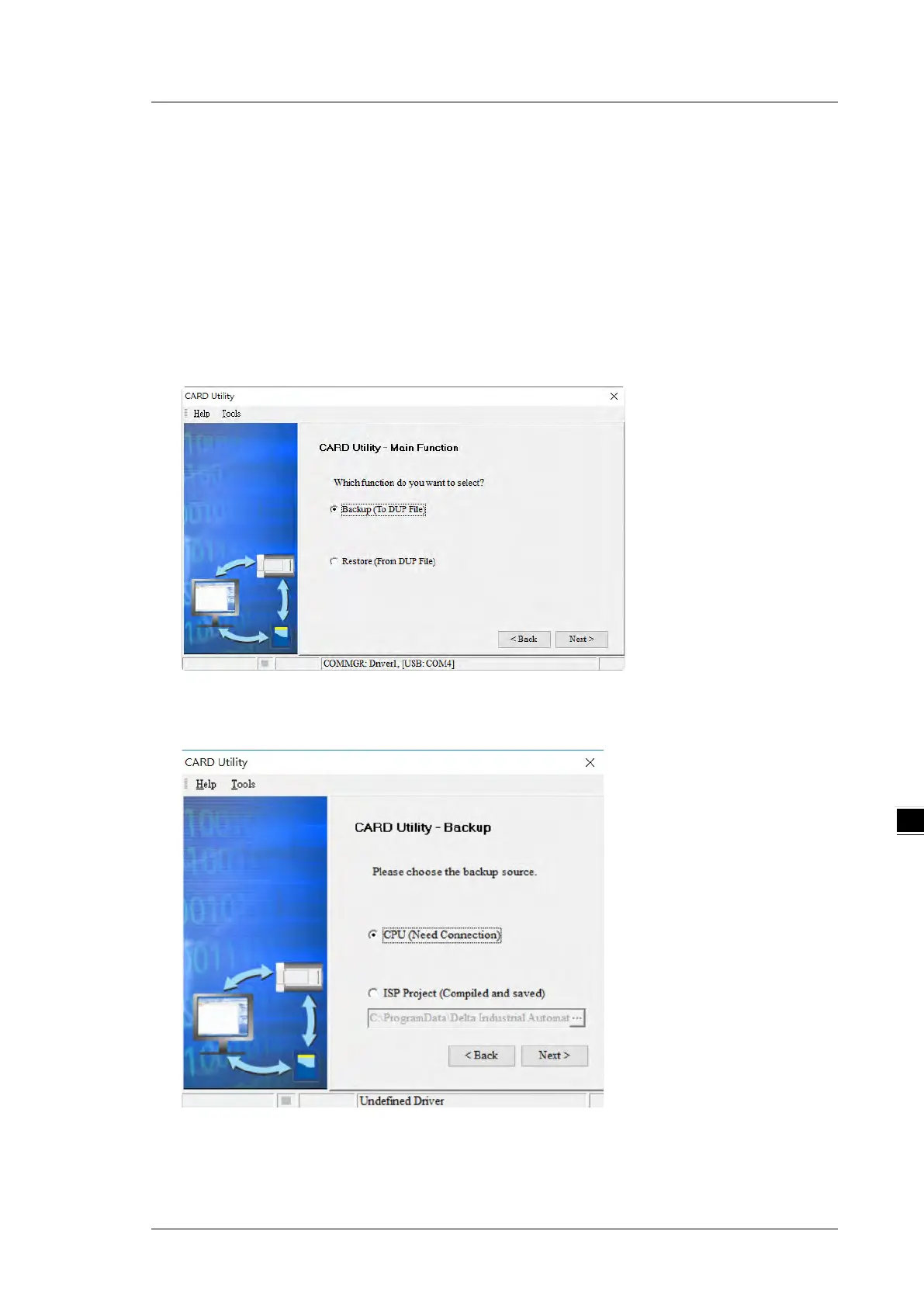

(1)
Select the
Backup (To DUP File)
option button in the
CARD Utility
wizard and then click
Next
.
(2)
Select a backup source, and then click
Next
.
a. If you select the
CPU (Need Connection)
, the backup file is stored in the memory card.
