Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 102
Confidential
3.4.2.16 LEFT BASE COVER
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the FRONT COVER. (p86)
6. Remove the LEFT UPPER COVER & LEFT ROLL COVER. (p101)
7. Remove the REAR LEFT LOWER COVER. (p104)
8. Remove the LEFT LOWER COVER. (p98)
9. Remove the two screws, and remove the LEFT BASE COVER.
A) Silver M3x8 S-tite screw with built-in washer: 2 pcs

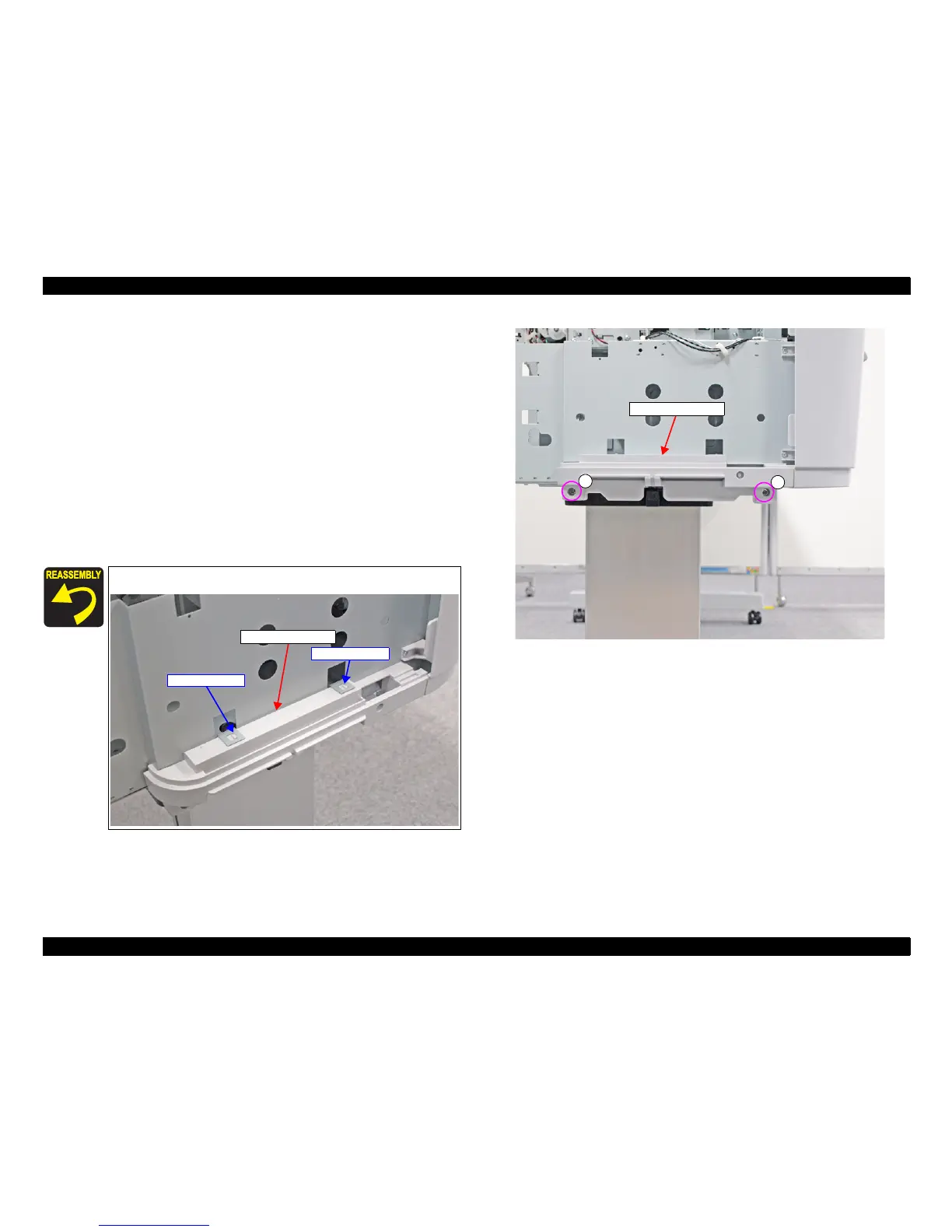

Figure 3-29. Removing the LEFT BASE COVER
Pay attention to the positioning points (See below figure).
LEFT BASE COVER
Positioning point
Positioning point
A
A
LEFT BASE COVER
