SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 141
Confidential

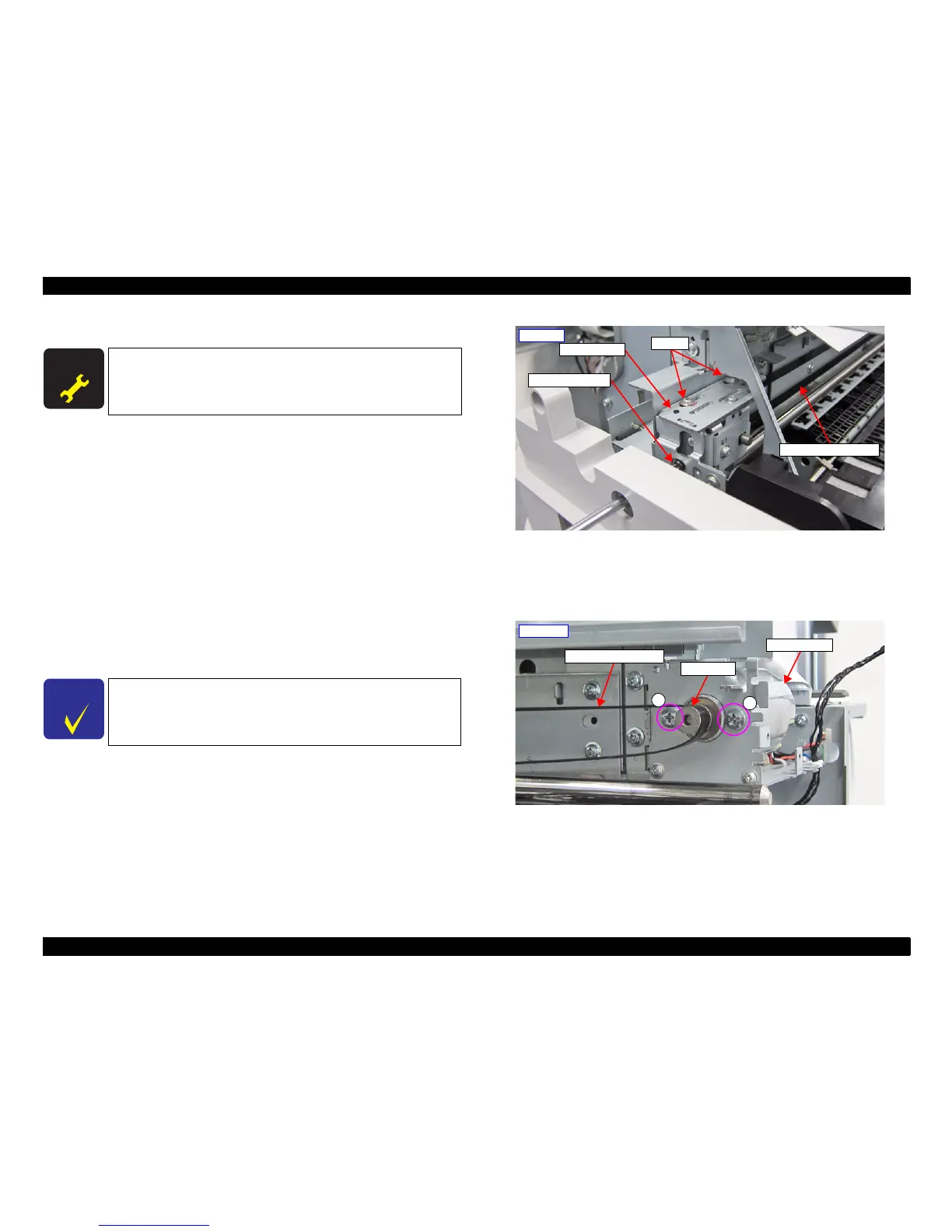

3.4.4.9 CR MOTOR
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the RIGHT UPPER COVER & RIGHT ROLL COVER. (p95)
6. Remove the REAR RIGHT LOWER COVER. (p99)
7. Remove the RIGHT LOWER COVER. (p96)
8. Remove the APG UNIT. (p144)
9. Unlock the CR UNIT. (p83)
10. Remove the LEFT UPPER COVER & LEFT ROLL COVER. (p101)
11. Loosen the two screws that secure the Pulley Holder.
12. Rotate the Belt tension screw counterclockwise to loosen the tension of the CR
TIMING BELT.
Figure 3-85. Loosening the CR TIMMING BELT tension
13. Remove the CR TIMING BELT from the pinion gear of the CR MOTOR.
14. Remove the two screws that secure the CR MOTOR.
A) Silver M4x10 Machine screw: 2 pcs
Figure 3-86. Removing the CR TIMMING BELT
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p199) and make sure to
perform the specified operations including required adjustment.
C H E C K
P O I N T
Before loosening the tension at the next step, mark the position of
the Pulley Holder to make the required adjustment easier.
Screws
CR TIMMING BELT
Belt tension screw
Pulley Holder
Left side
A
A
CR TIMMING BELT
CR MOTOR
Pinion gear
Right side
