3.4.5.9 PE SENSOR (ROLL PAPER)
1. Remove the REAR ROLL COVER FRAME. (p105)
2. Remove the two screws, and remove the PE Sensor Assy.
A) Silver M3x8 S-tite screw with built-in washer: 2 pcs

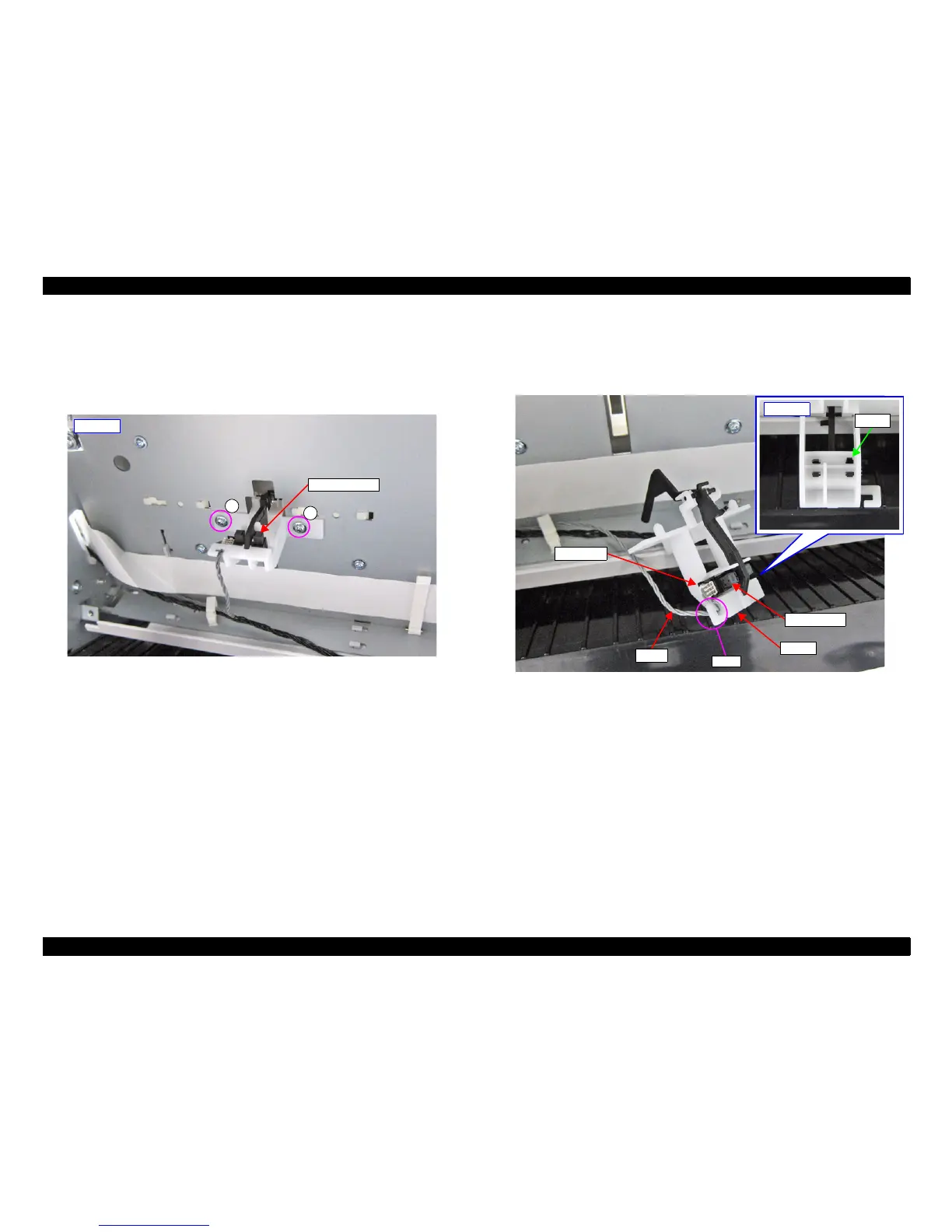

Figure 3-136. Removing the PE Sensor Assy
3. Disengage the hook, and remove the PE SENSOR.
4. Release the cable from the hook of the Holder.
5. Disconnect the cable from the PE SENSOR.
Figure 3-137. Removing the PE SENSOR (ROLL PAPER)
PE Sensor Assy
A
A
Back side
Back side
Hook
PE SENSOR
Connector
Cable
Hook
Holder
