SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
ADJUSTMENT Media Feed Related Checks and Adjustments 264
Confidential
4.13.2 PC Scale Check
EXECUTION MODE
Normal mode
PROCEDURE
1. Remove the following part in advance.
îš„ LEFT UPPER COVER (P. 101)
îš„ LEFT LOWER COVER (P. 98)
2. Turn the printer ON.
3. Start the Service Program and select PF Scale Check.
4. Click [Run] to rotate the PF SCALE.
Look at the PF ENCODER and the PF SCALE from straight above, and visually
check that the scale is not in contact with the encoder.

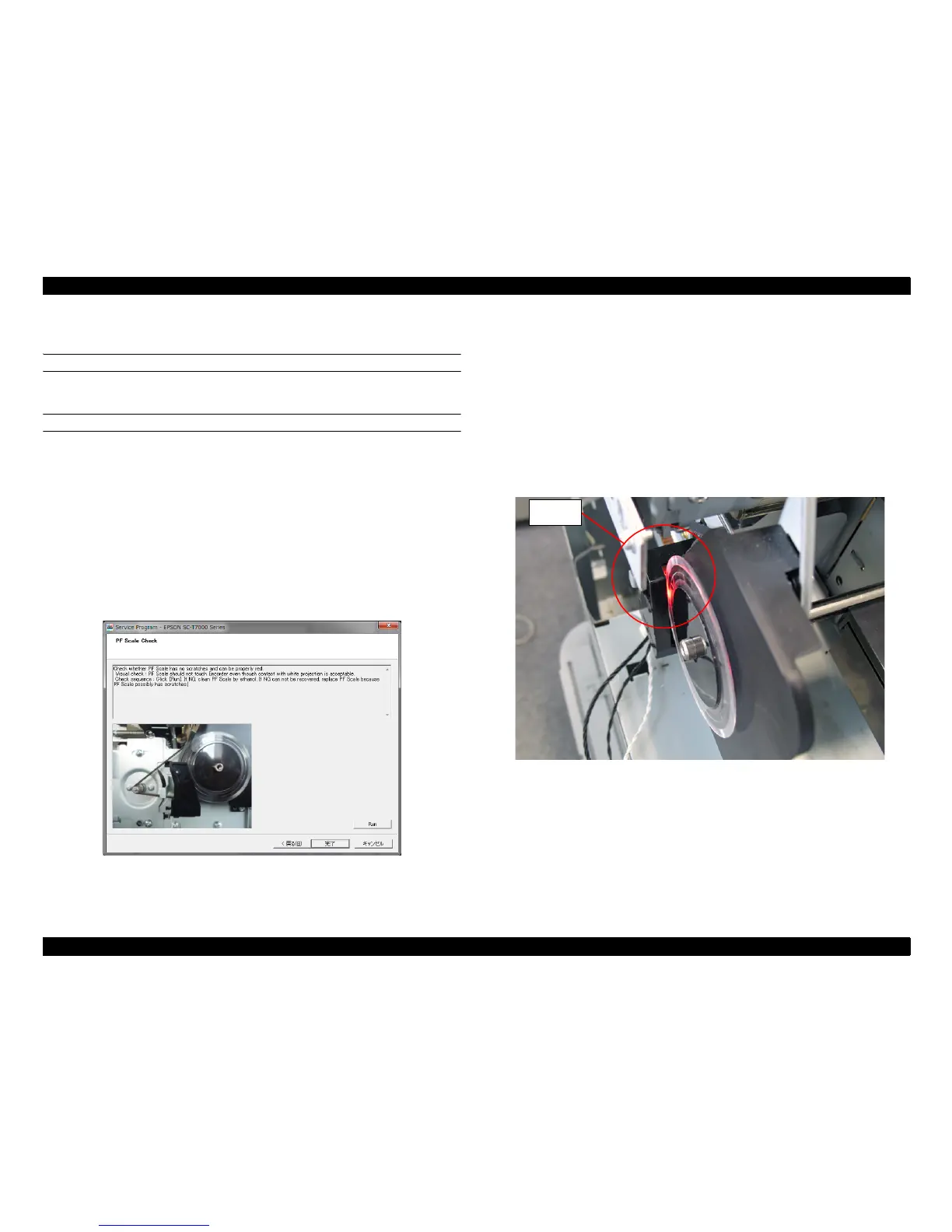

Figure 4-60. [PF Scale Check] Screen
5. After the PF SCALE has rotated 30 revolutions, the check result is displayed.
îš„ The result is OK: Go to Step 7
îš„ The result is NG: Go to Step 6
6. Since the PF SCALE may be dirty, clean it with ethanol. After cleaning the PF
SCALE, perform Step 4 to run the check again. If the result is still NG, replace the
PF ENCODER (P. 166) or the PF SCALE (P. 165) and check again.
7. Click [Finish].
8. Turn the printer OFF to finish the adjustment.
Figure 4-61. PC Scale Check
Point to be
checked
To Next Page
