Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 87
Confidential
3.4.2.3 LOWER PAPER GUIDE
1. Remove the LOWER PAPER GUIDE B. (p88)
2. Open the WASTE INK TANK COVER.
3. Remove the three screws, and remove the LOWER PAPER GUIDE.
A) Silver M3x8 S-tite screw with built-in washer: 3 pcs

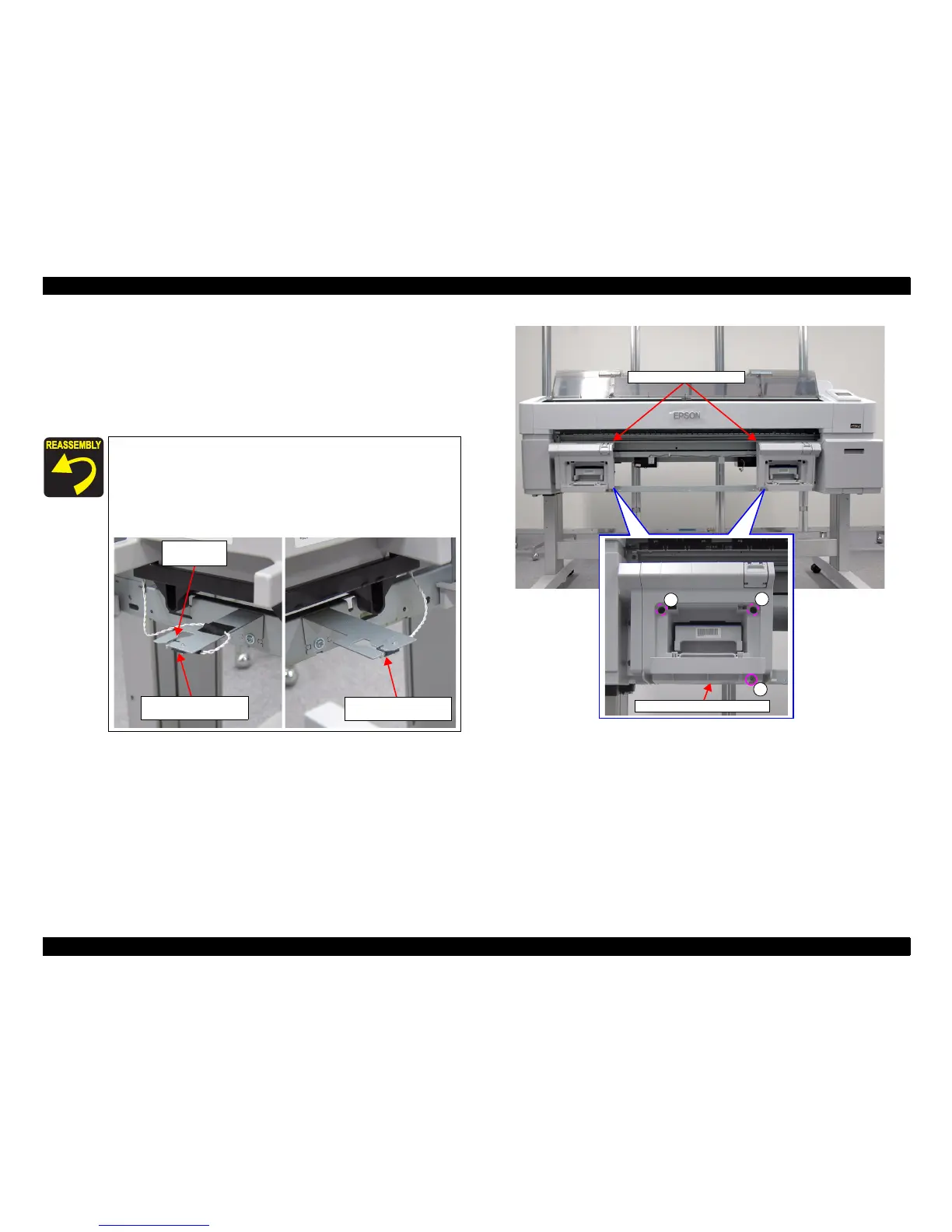

Figure 3-13. Removing the LOWER PAPER GUIDE
 To ensure the tab of WASTE INK TANK COVER is inserted
in the groove of the Sensor Frame, install the LOWER PAPER
GUIDE with the WASTE INK TANK COVER opened.
 When installing the LOWER PAPER GUIDE, take care not to
damage the L WASTE INK COVER SENSOR or R WASTE
INK COVER SENSOR.
Groove of the
Sensor Frame
L WASTE INK COVER
SENSOR
R WASTE INK COVER
SENSOR
A
A
A
WASTE INK TANK COVER
LOWER PAPER GUIDE
