Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 115
Confidential
3.4.3.4 SUB BOARD
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the FRONT COVER. (p86)
6. Remove the LEFT UPPER COVER & LEFT ROLL COVER. (p101)
7. Remove the RIGHT UPPER COVER & RIGHT ROLL COVER. (p95)
8. Unlock the CR UNIT. (p83)
9. Remove the CR COVER. (p122)
10. Move the CR UNIT to the left end.
11. Remove the two screws, and remove the CR Front Frame.
A) Silver M3x8 S-tite screw with built-in washer: 2 pcs

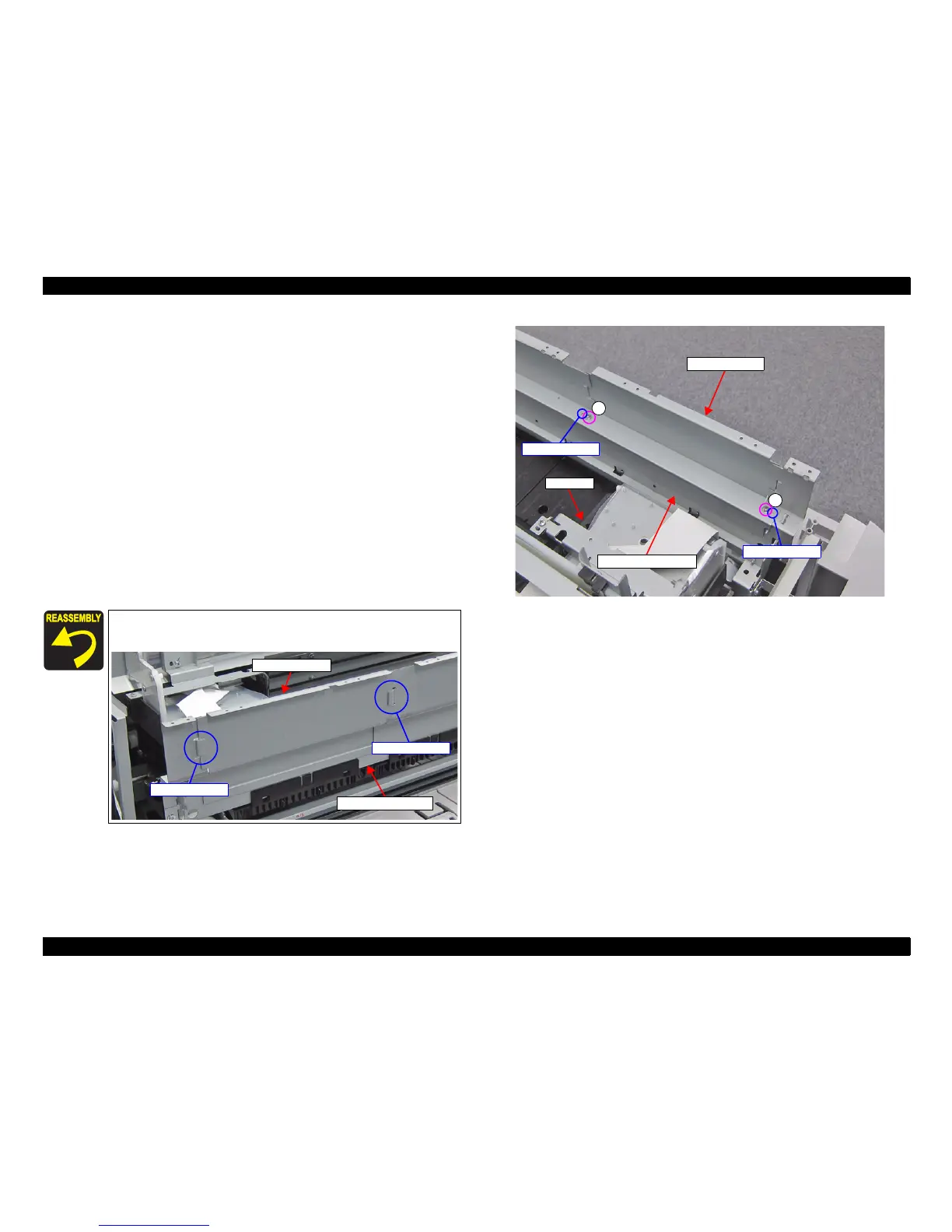

Figure 3-44. Removing the CR Front Frame
Pay attention to the positioning points (See below figure, Figure
3-44).
CR Front Frame
Front Support Frame
Positioning point
Positioning point
A
A
CR UNIT
Front Support Frame
CR Front Frame
Positioning point
Positioning point
