DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 85
Confidential
3.4.2 Housing
3.4.2.1 TOP COVER
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the screw, and remove the TOP COVER.
A) Silver M3x8 S-tite screw with built-in washer: 1 pcs
5. Remove the PRINTER COVER. (p93)

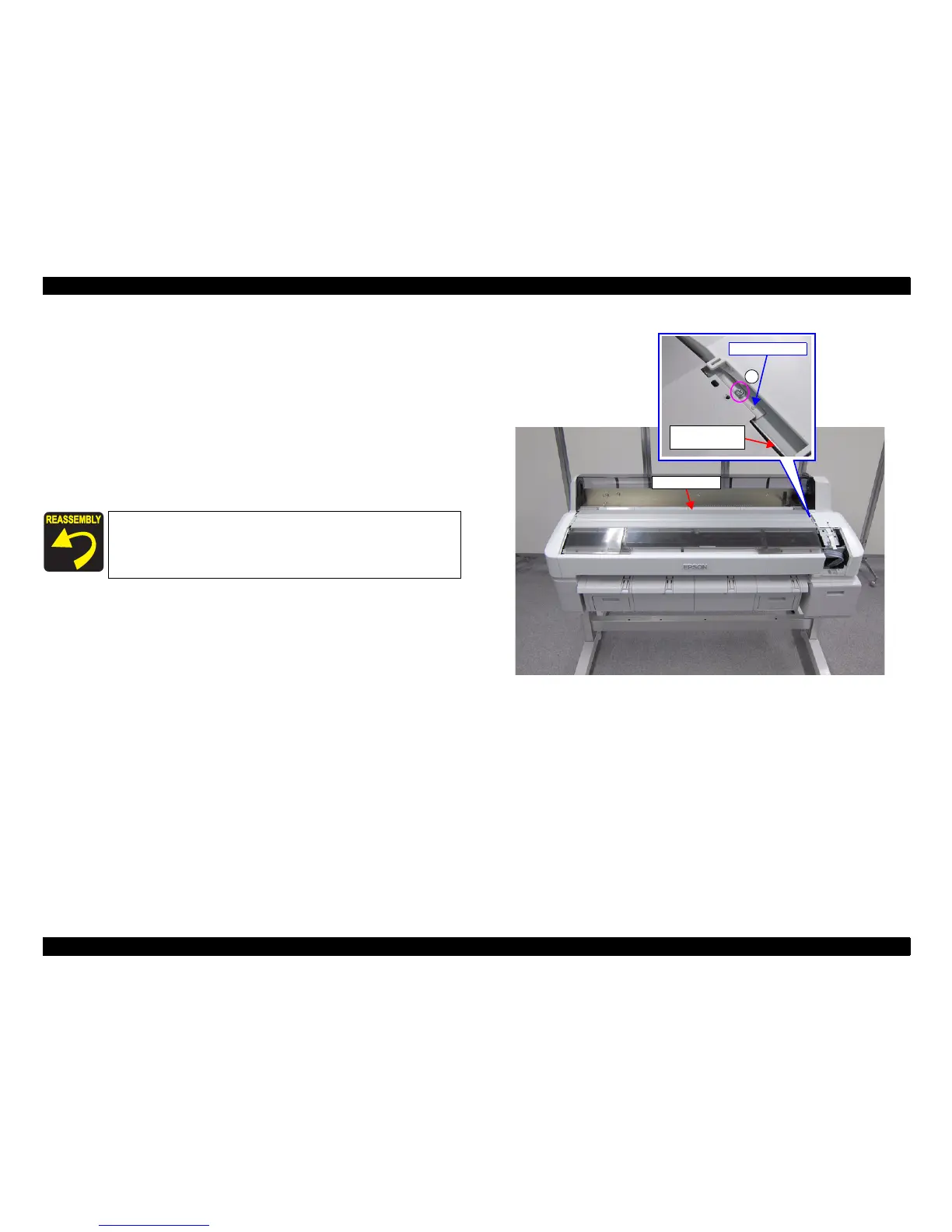

Figure 3-11. Removing the TOP COVER
Pay attention to the positioning points (See Figure 3-11).
A
Upper Support
Frame
Positioning point
TOP COVER
