Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 127
Confidential
3.4.4.4 HEAD FFC
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the FRONT COVER. (p86)
6. Remove the LEFT UPPER COVER & LEFT ROLL COVER. (p101)
7. Remove the RIGHT UPPER COVER & RIGHT ROLL COVER. (p95)
8. Unlock the CR UNIT. (p83)
9. Remove the CR COVER. (p122)
10. Remove the DAMPER KIT. (p123)
11. Remove the REAR RIGHT LOWER COVER. (p99)
12. Disconnect the HEAD FFCs from the four connectors of the PRINT HEAD.
13. Pull out the HEAD FFC from the Ferrite Core.
14. Release the HEAD FFC from the two hooks of the Ferrite Core Holder.

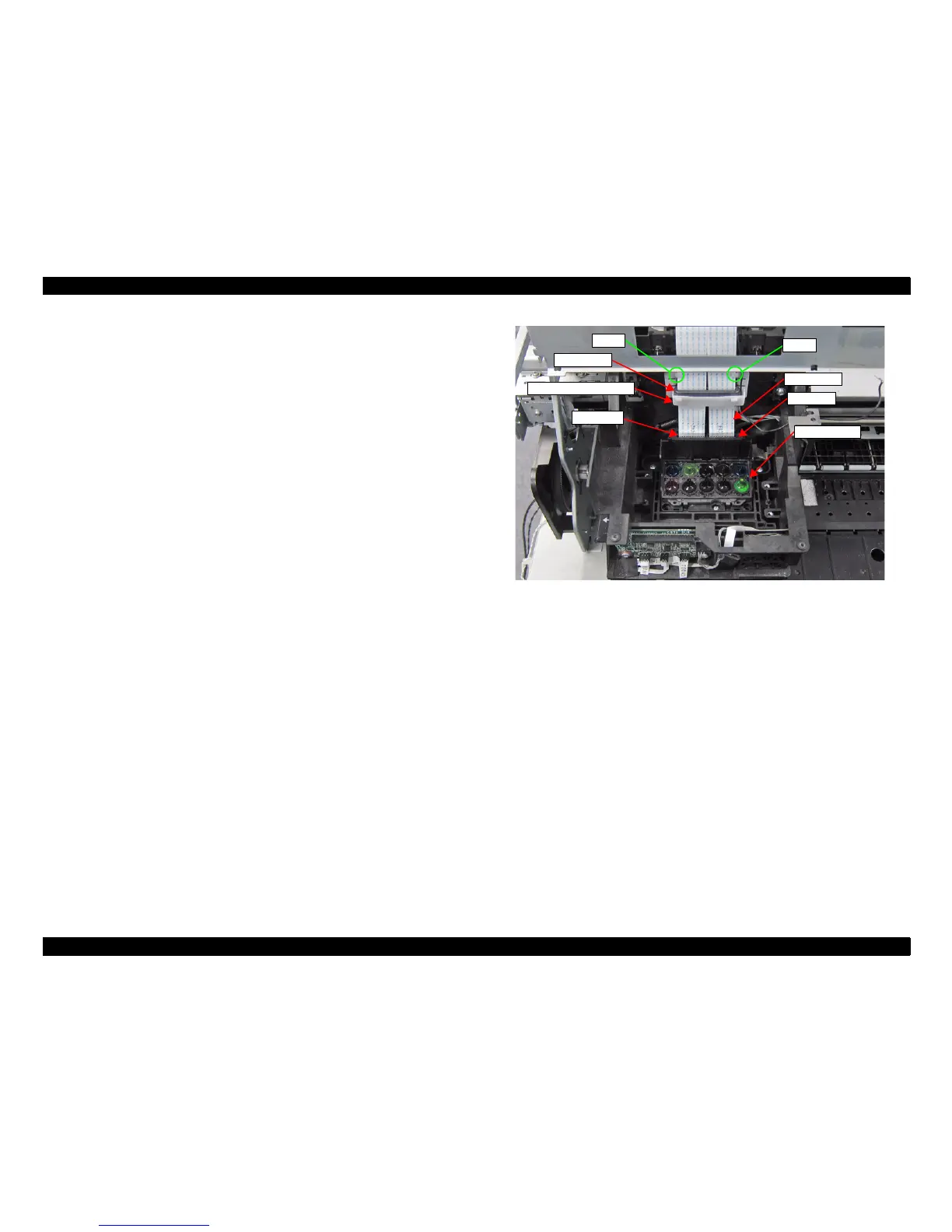

Figure 3-61. Removing the HEAD FFC
PRINT HEAD
HEAD FFC
Ferrite Core
Hook
Hook
Ferrite Core HOLDER
Connector
Connector
