Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 180
Confidential
3.4.5.11 PAPER THICKNESS SENSOR
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the RIGHT UPPER COVER & RIGHT ROLL COVER. (p95)
6. Remove the two screws, and remove the Paper Thickness Sensor Assy while
sliding in the direction of the arrow.
A) Silver M3x8 P-tite screw with built-in washer: 2 pcs

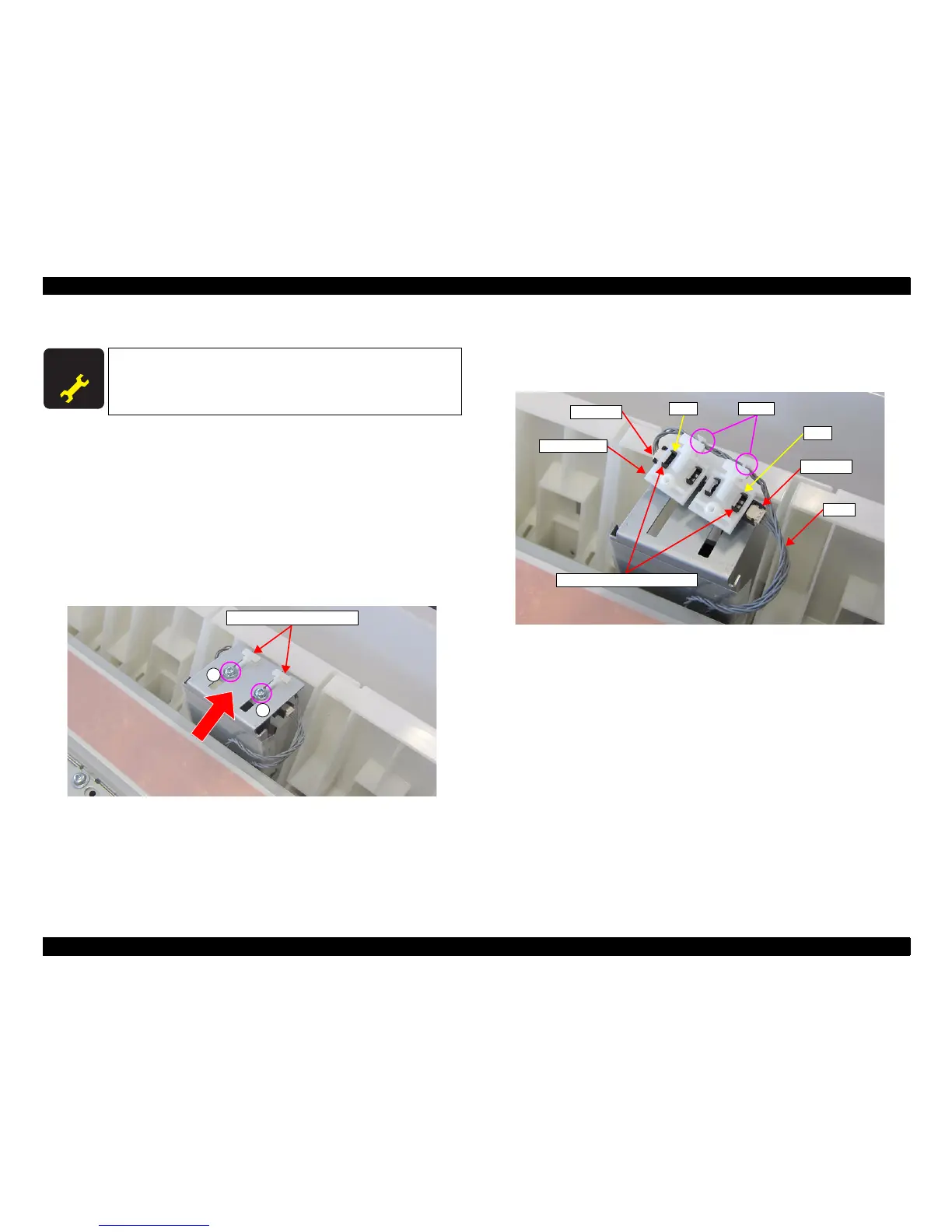

Figure 3-141. Removing the Paper Thickness Sensor Assy
7. Disengage the hook, and remove the PAPER THICKNESS SENSOR.
8. Disconnect the cable from the PAPER THICKNESS SENSOR.
9. Release the cable from the hook of the Sensor Holder.
Figure 3-142. Removing the PAPER THICKNESS SENSOR
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p199) and make sure to
perform the specified operations including required adjustment.
A
A
Paper Thickness Sensor Assy
Cable
Connector
Connector
Hooks
Sensor Holder
PAPER THICKNESS SENSOR
Hook
Hook
