3.4.2.12 LEFT LOWER COVER
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the FRONT COVER. (p86)
6. Remove the LEFT UPPER COVER & LEFT ROLL COVER. (p101)
7. Remove the REAR LEFT LOWER COVER. (p104)
8. Remove the two screws, and LEFT LOWER COVER.
A) Silver M3x10 P-tite screw with washer: 1 pcs
B) Silver M4x12 P-tite screw with washer: 1 pcs

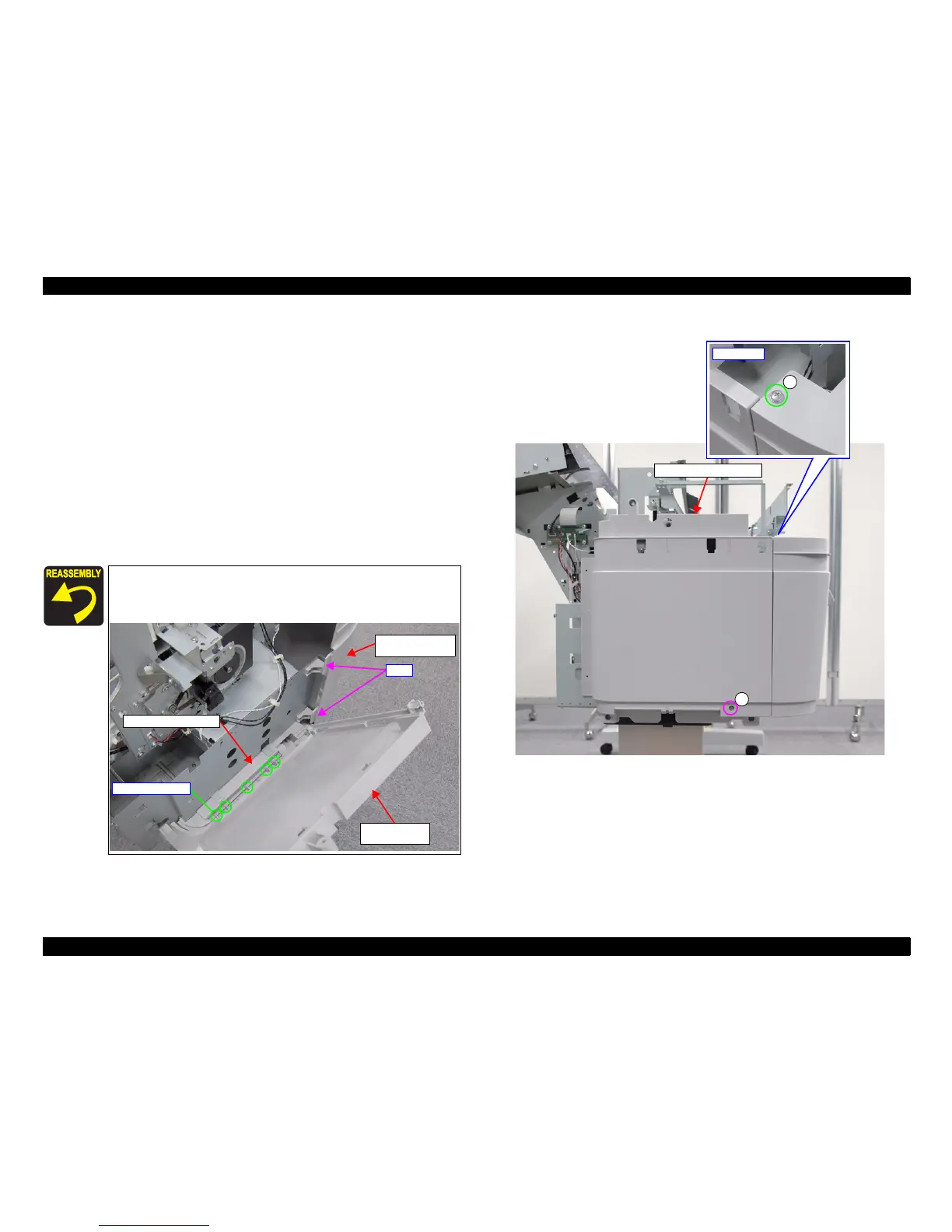

Figure 3-25. Removing the LEFT LOWER COVER
 Insert the two tabs of the FRONT LEFT LOWER COVER to
the two holes on the LEFT LOWER COVER.
 Pay attention to the positioning points (See below figure).
LEFT LOWER
COVER
FRONT LEFT
LOWER COVER
LEFT BASE COVER
Tabs
Positioning points
A
LEFT LOWER COVER
B
Upper side
