3.4.2.8 UPPER SUPPORT R COVER
1. Remove the two screws, and remove the UPPER SUPPORT R COVER.
A) Silver M3x8 S-tite screw with built-in washer: 2 pcs
Figure 3-21. Removing the UPPER SUPPORT R COVER

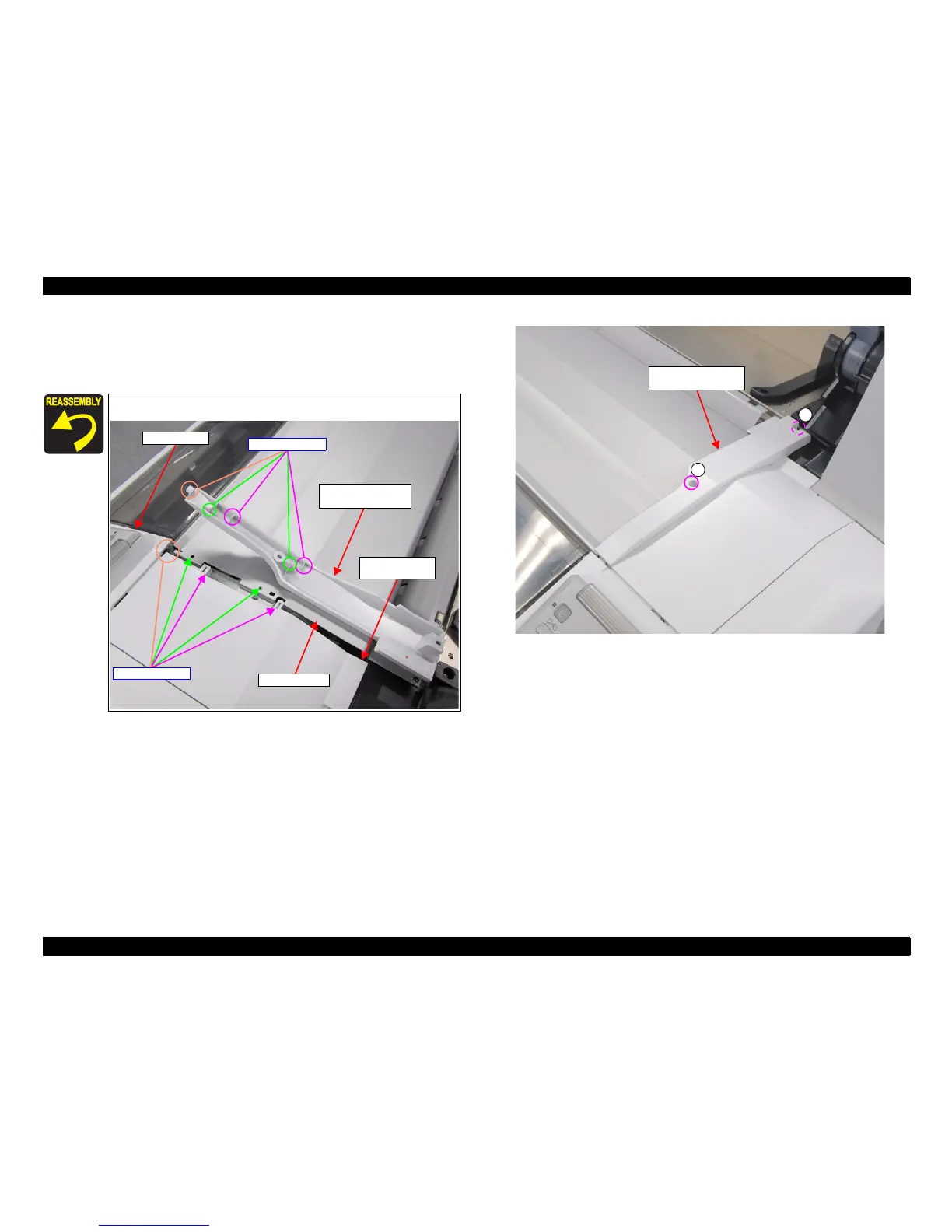

Pay attention to the positioning points. (See below figure)
UPPER SUPPORT R
COVER
Panel Housing
RIGHT LOWER
COVER
TOP COVER
Positioning points
Positioning points
A
A
UPPER SUPPORT R
COVER
To Next Page
