3.4.8.7 TAKE-UP REEL MAIN BOARD
1. Remove the Flange from the Auto Take-up Reel.
2. Remove the TAKE-UP REEL COVER.
(p185)
3. Disconnect the connector (CN1) on the TAKE-UP REEL MAIN BOARD.
4. Remove the four screws that secure the Power Supply Unit, and remove the Power
Supply Unit.
A) Black, Phillips, Bind S-tite M3x6: 4 pcs

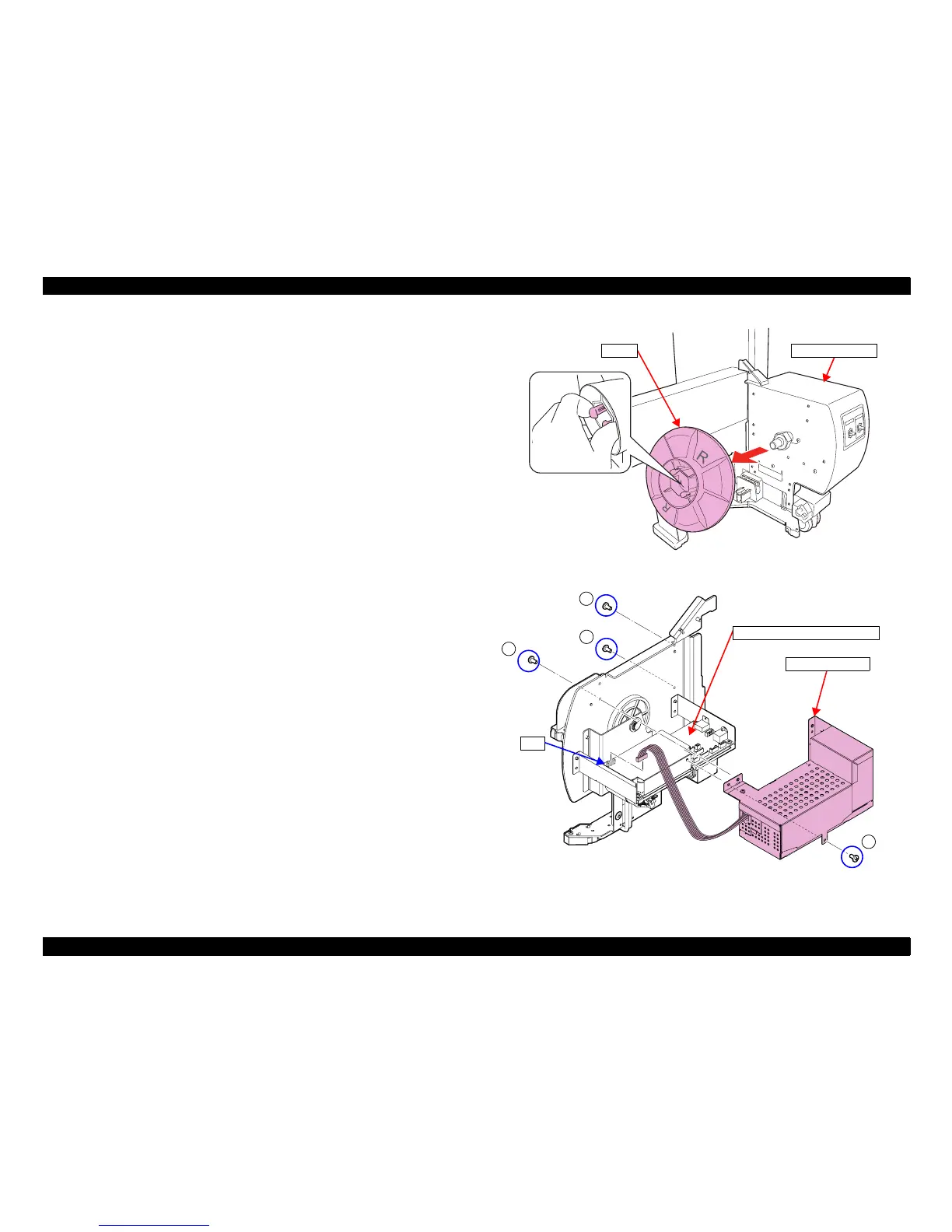

Figure 3-166. Removing the Flange
Figure 3-167. Removing the Power Supply Unit
Flange
Auto Take-up Reel
CN1
Power Supply Unit
A
A
A
A
TAKE-UP REEL MAIN BOARD
