Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 190
Confidential
3.4.8.5 TAKE-UP REEL PS BOARD
1. Remove the Flange from the Auto Take-up Reel.
2. Remove the TAKE-UP REEL COVER.
(p185)
3. Remove the two screws that secure the Plate A, and remove the Plate A.
A) Black, Phillips, Bind S-tite M3x6: 2 pcs
4. Remove the two screws that secure the Plate B, and remove the Plate B.
B) Black, Phillips, Bind S-tite M3x6: 1 pcs
C) Black, Phillips, Bind S-tite M4x8: 1 pcs

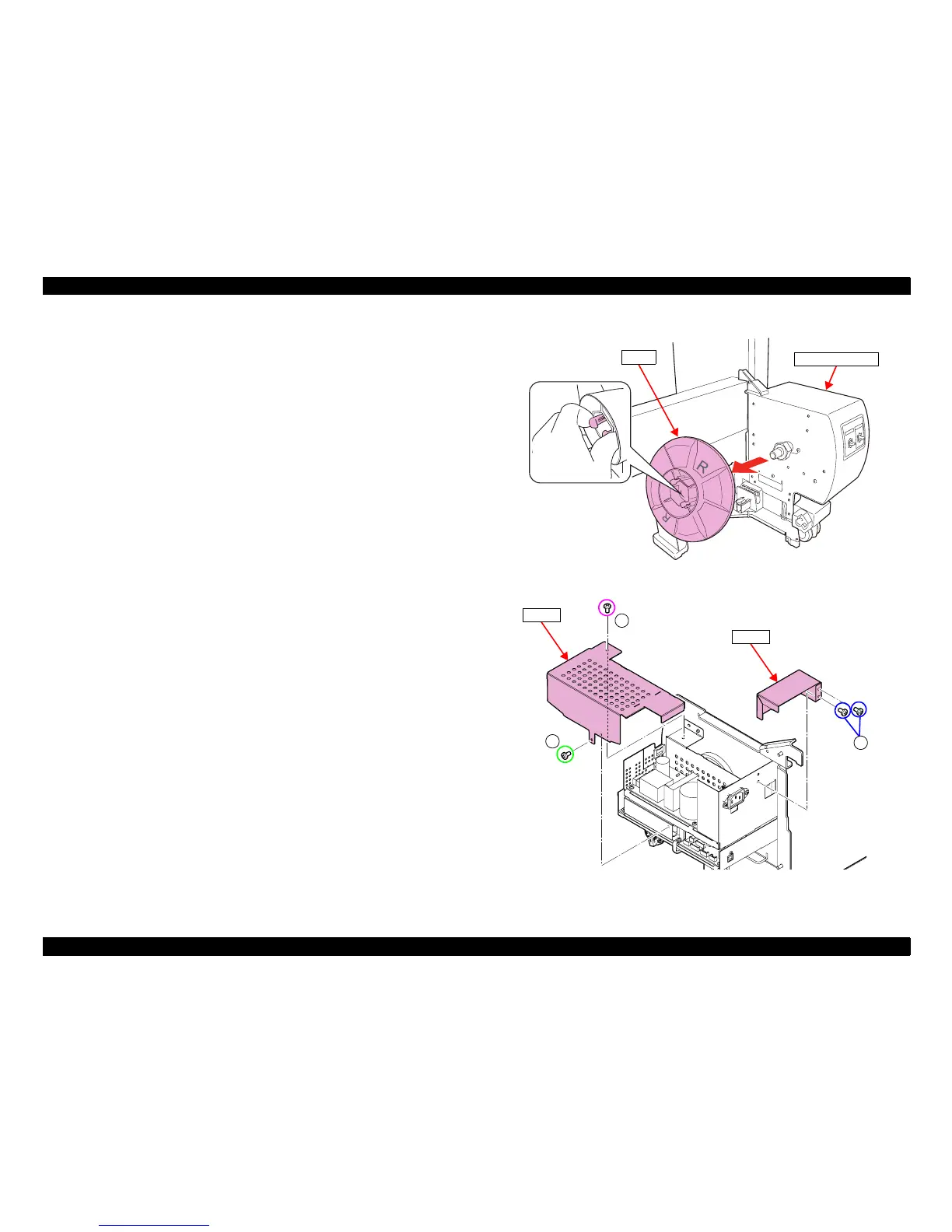

Figure 3-158. Removing the Flange
Figure 3-159. Removing the Plate A/B
Flange
Auto Take-up Reel
Plate A
Plate B
C
A
B
