Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 178
Confidential
3.4.5.10 PE SENSOR (THICK PAPER)
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the FRONT COVER. (p86)
6. Remove the REAR ROLL COVER FRAME. (p105)
7. Remove the two screws, and remove the Rear Paper Guide in the direction of the
arrow.
A) Silver M3x6 S-tite screw with built-in washer: 2 pcs

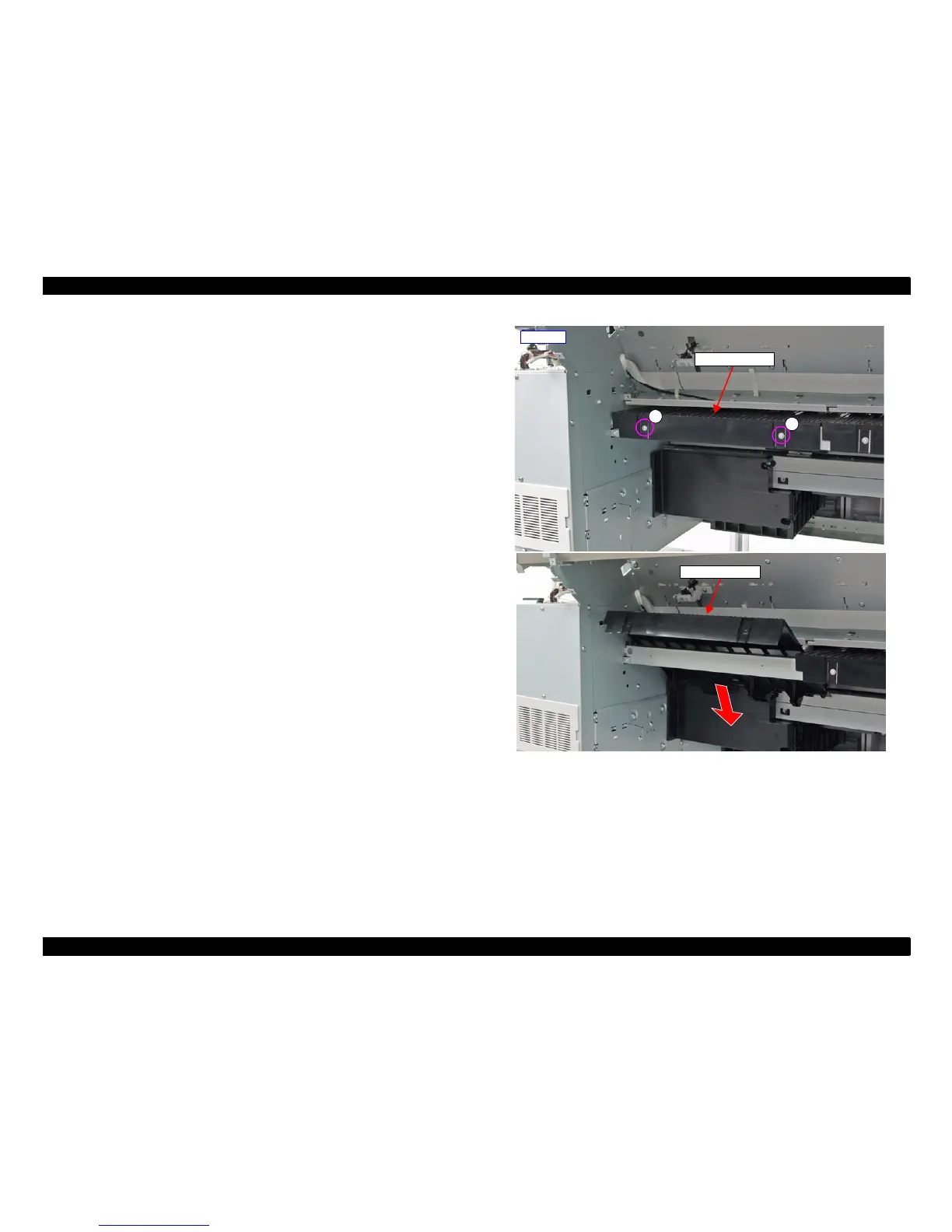

Figure 3-138. Removing the Rear Paper Guide
Rear Paper Guide
A
A
Back side
Rear Paper Guide
