3.4.2.11 RIGHT BASE COVER
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the RIGHT UPPER COVER & RIGHT ROLL COVER. (p95)
6. Remove the RIGHT LOWER COVER. (p96)
7. Remove the two screws, and remove the RIGHT BASE COVER.
A) Silver M3x8 S-tite screw with built-in washer: 2 pcs

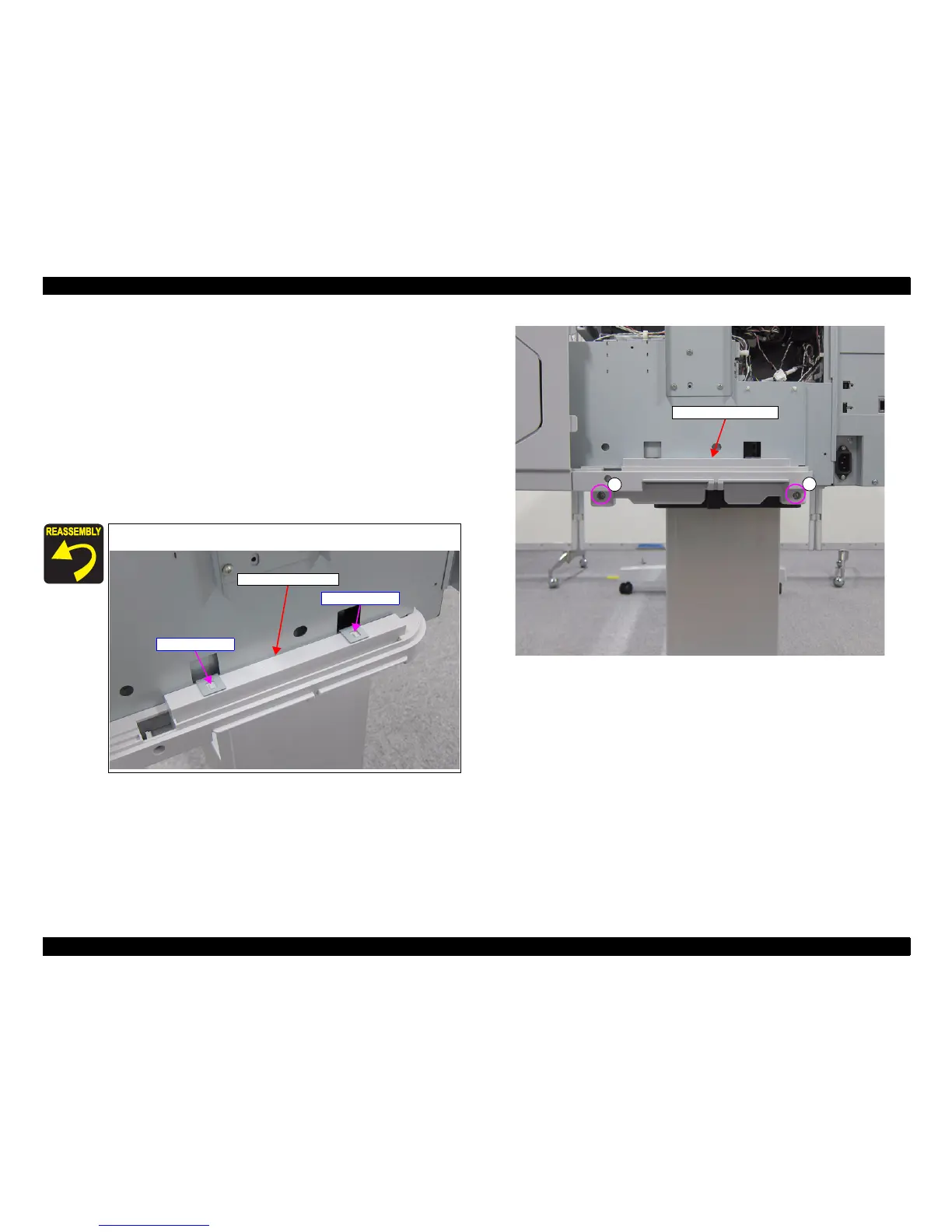

Figure 3-24. Removing the RIGHT BASE COVER
Pay attention to the positioning points (See below figure).
RIGHT BASE COVER
Positioning point
Positioning point
A
A
RIGHT BASE COVER
