4.11.5.2 Head Inclination Manual Adjustment (CR direction)
1. Turn the printer ON.
2. Load the paper into the printer.
3. Start the Service Program and select Head inclination manual adjustment (CR
direction).
4. Click [Run].
The adjustment pattern will be printed.

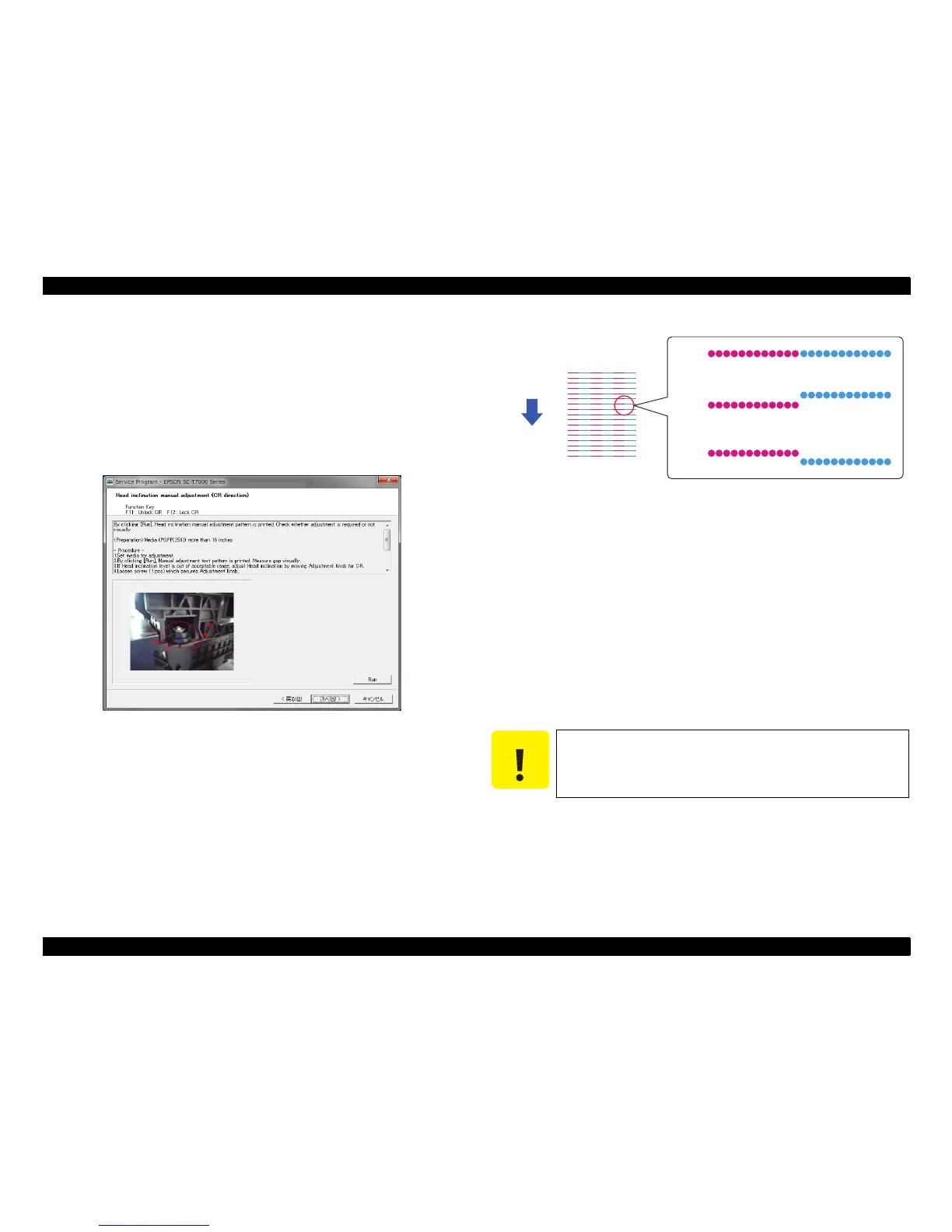

Figure 4-45. [Head inclination manual adjustment (CR direction)] Screen
5. Examine the printed pattern visually.
6. Make the adjustment referring to 4.11.5.3Correcting Head Inclination (CR
direction) (Page 254).
Figure 4-46. Judgement
4.11.5.3 Correcting Head Inclination (CR direction)
1. Press the F11 key of the keyboard to unlock the CR UNIT.
2. Move the CR UNIT to the left end of the printer.
3. Remove the CR COVER. (P. 122)
4. Loosen the three screws (A, B, C) that secure the DAMPER KIT.
5. Loosen the three screws (D, E, F) that secure the head holder.
6. Loosen the screw (G) (Bit No. 1) that secures the adjustment knob.
7. Turn the adjustment knob to correct the head inclination. See Figure 4-47 for
which direction to move the knob.
C A U T I O N
Be careful not to completely remove the screw that secures the
adjustment knob.
OK
NG
NG
Paper feed
direction
Misalignment within one-dot's width is OK.
To Next Page
