Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 104
Confidential
3.4.2.18 REAR LEFT LOWER COVER
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the FRONT COVER. (p86)
6. Remove the LEFT UPPER COVER & LEFT ROLL COVER. (p101)
7. Loosen the screw that secures the REAR LEFT LOWER COVER.
A) Silver M3x8 S-tite screw with built-in washer: 1 pcs
8. Remove the three screws, and remove the REAR LEFT LOWER COVER.
B) Silver M4x12 P-tite screw with washer: 1 pcs
C) Silver M3x8 S-tite screw with built-in washer: 2 pcs

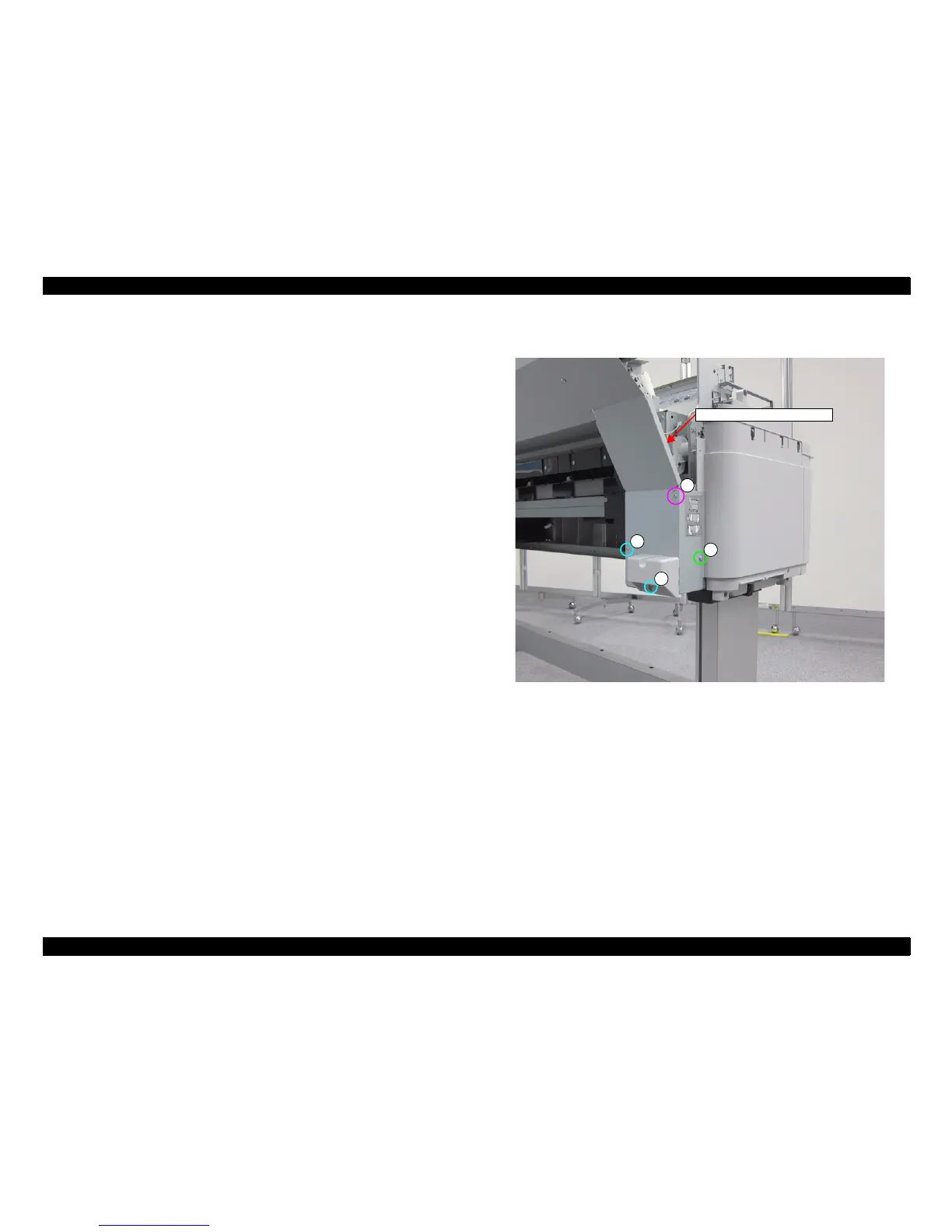

Figure 3-31. Removing the REAR LEFT LOWER COVER
A
REAR LEFT LOWER COVER
B
C
C
