Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 117
Confidential
3.4.3.5 SUB-B BOARD
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the FRONT COVER. (p86)
6. Remove the LEFT UPPER COVER & LEFT ROLL COVER. (p101)
7. Disconnect all cables and FFCs connected to the SUB-B BOARD.
8. Remove the four screws, and remove the SUB-B BOARD.
A) Silver M3x8 S-tite screw with built-in washer: 4 pcs

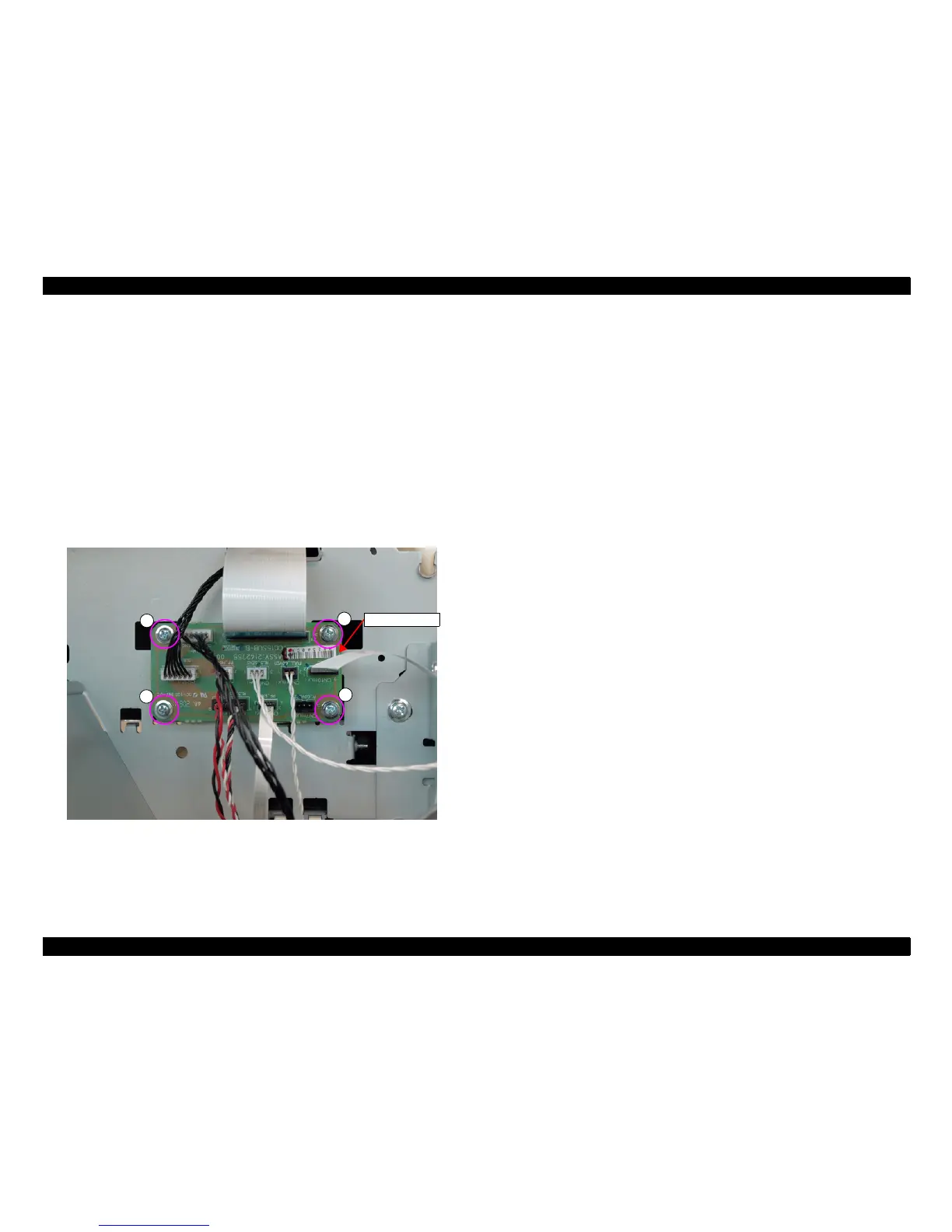

Figure 3-47. Removing the SUB-B BOARD
SUB-B BOARD
A
A
A
A
