3.4.8.2 TAKE-UP REEL SENSOR
1. Remove the screw that secures the TAKE-UP REEL SENSOR.
A) Black, Phillips, Bind P-tite M3x10: 1 pcs
2. Remove the TAKE-UP REEL SENSOR from the Auto Take-up Reel.
3. Disconnect the connector from the TAKE-UP REEL SENSOR.

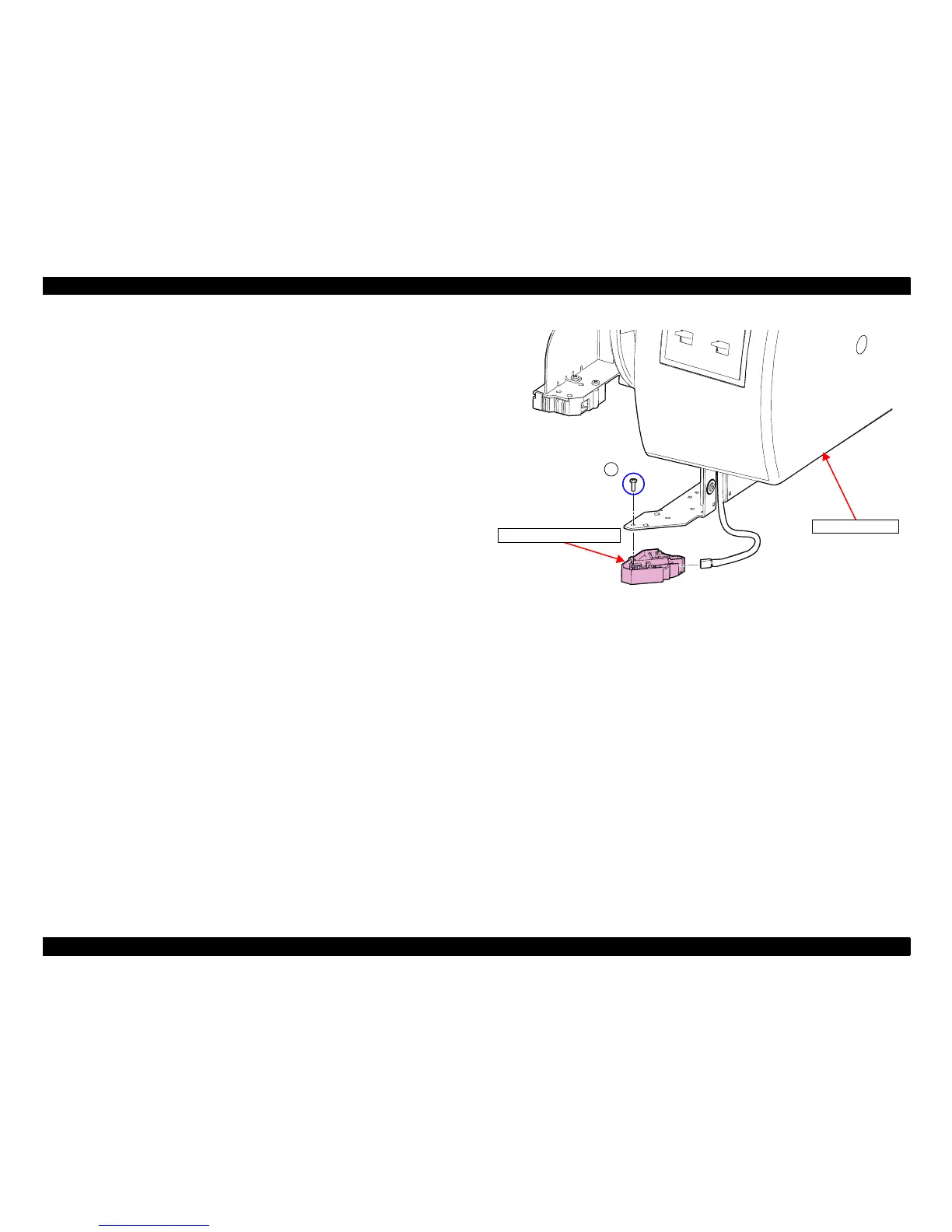

Figure 3-151. Removing the TAKE-UP REEL SENSOR
TAKE-UP REEL SENSOR
A
Auto Take-up Reel
