Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 120
Confidential
3.4.3.7 PANEL BOARD
1. Remove the UPPER SUPPORT R COVER. (p94)
2. Remove the two screws that secure the Panel Housing.
A) Silver M3x8 S-tite screw with built-in washer: 2 pcs
3. Disconnect the cable and FFC from the connectors (CN1, CN5) of the PANEL
BOARD.

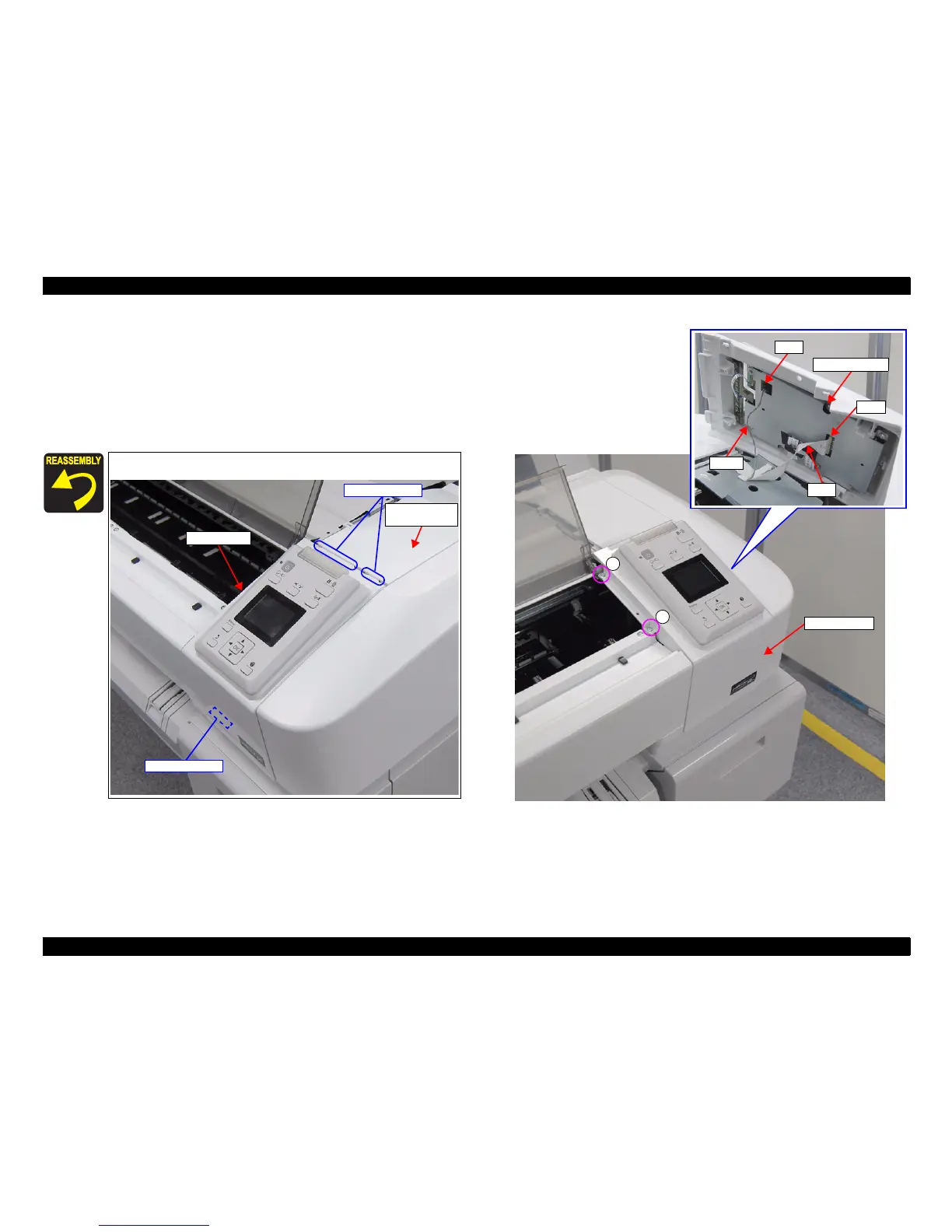

Figure 3-51. Removing the Panel Housing
Pay attention to the positioning points (See below figure).
RIGHT UPPER
COVER
Panel Housing
Positioning points
Positioning point
FFC
Cable
CN5
PANEL BOARD
CN1
A
A
Panel Housing
