SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
ADJUSTMENT Media Feed Related Checks and Adjustments 266
Confidential
4.13.4 Cut Position Check & Adjustment
REQUIRED TOOLS
 Calibrated Loupe
PAPER USED
 Type: Roll paper (any type is OK)
 Size:
îš„ SC-T7000 Series: 44 inches
îš„ SC-T5000 Series: 36 inches
îš„ SC-T3000 Series: 24 inches
STANDARD VALUE
 15 ± 0.3 mm
EXECUTION MODE
Normal mode
PROCEDURE
1. Turn the printer ON.
2. Start the Service Program and select Cut position check and adjustment.
3. Click [Print].
The adjustment pattern will be printed.
4. Measure the distances of three points, Home, Center, and Full shown in Figure
4-65.
5. Check if the average of the maximum value and the minimum value is within the
standards.
îš„ Within the standards: Go to Step 8
îš„ Out of the standards: Go to Step 6
6. Input the maximum value and the minimum value from the values measured in
Step 4.
7. Click [Write] and return to Step 3.
8. Click [Finish].
9. Turn the printer OFF to finish the adjustment.

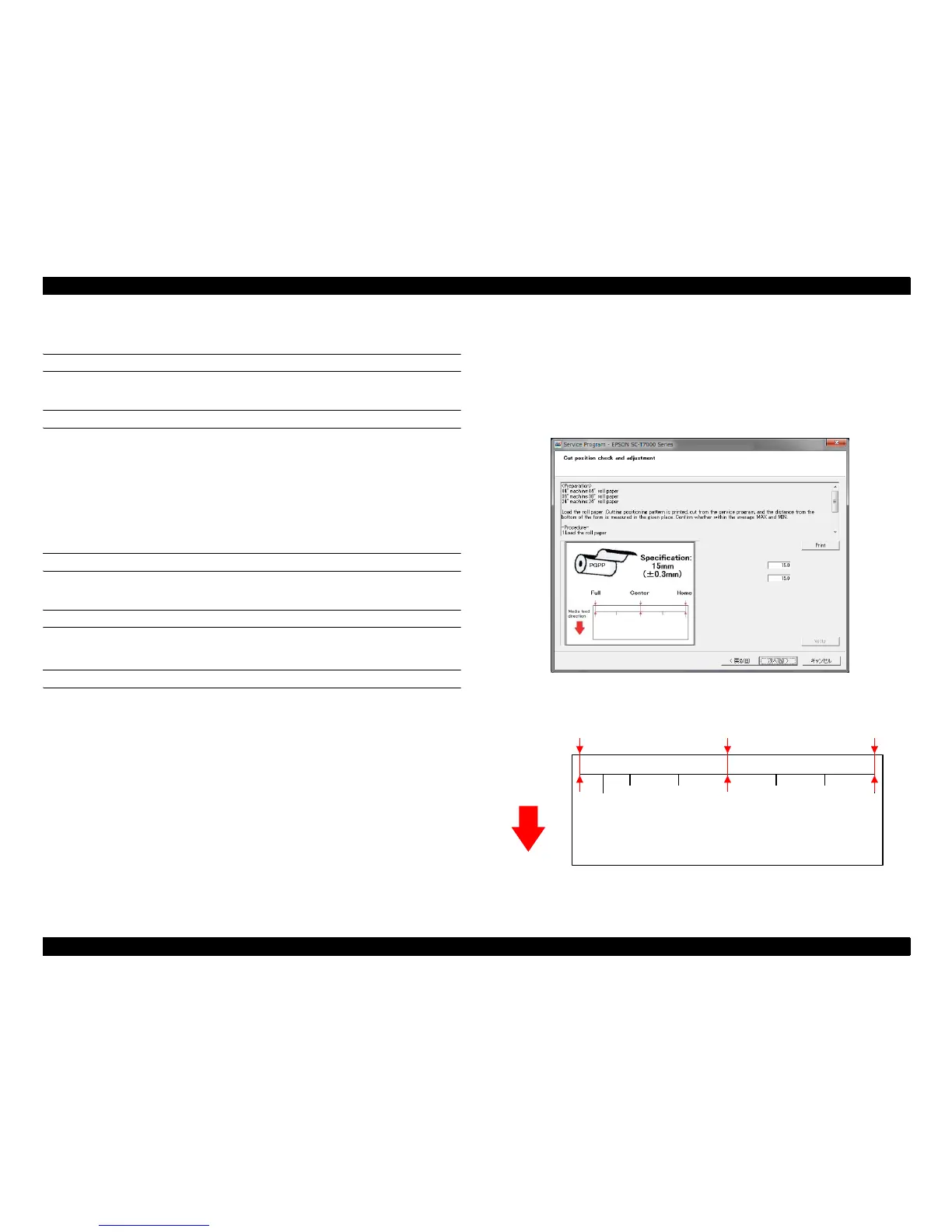

Figure 4-64. [Cut position check and adjustment] Screen
Figure 4-65. Adjustment Pattern
Paper feed
direction
Center HomeFull
To Next Page
