Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 107
Confidential
3.4.2.21 R WASTE INK COVER SENSOR
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the RIGHT UPPER COVER & RIGHT ROLL COVER. (p95)
6. Remove the REAR RIGHT LOWER COVER. (p99)
7. Remove the LOWER PAPER GUIDE. (p87)
8. Remove the LOWER PAPER GUIDE B. (p88)
9. Remove the RIGHT LOWER COVER. (p96)
10. Remove the IH COVER. (p89)
11. Remove the RIGHT LOWER COVER. (p96)
12. Remove the screw that secures the R WASTE INK COVER SENSOR.
A) Silver M1.7x6 Pan machine screw with S.W: 1 pcs
13. Pull out the cable from the groove of the Maintenance Box Holder.
14. Release the cable from the four clamps at front side.
15. Remove the pieces of acetate tape, and release the cable.
16. Release the cable from the two hooks of the CR Spacer.
17. Release the cable from the three clamps at right side.
18. Disconnect the Cable from the Relay Connector (No.9), and remove the R
WASTE INK COVER SENSOR.

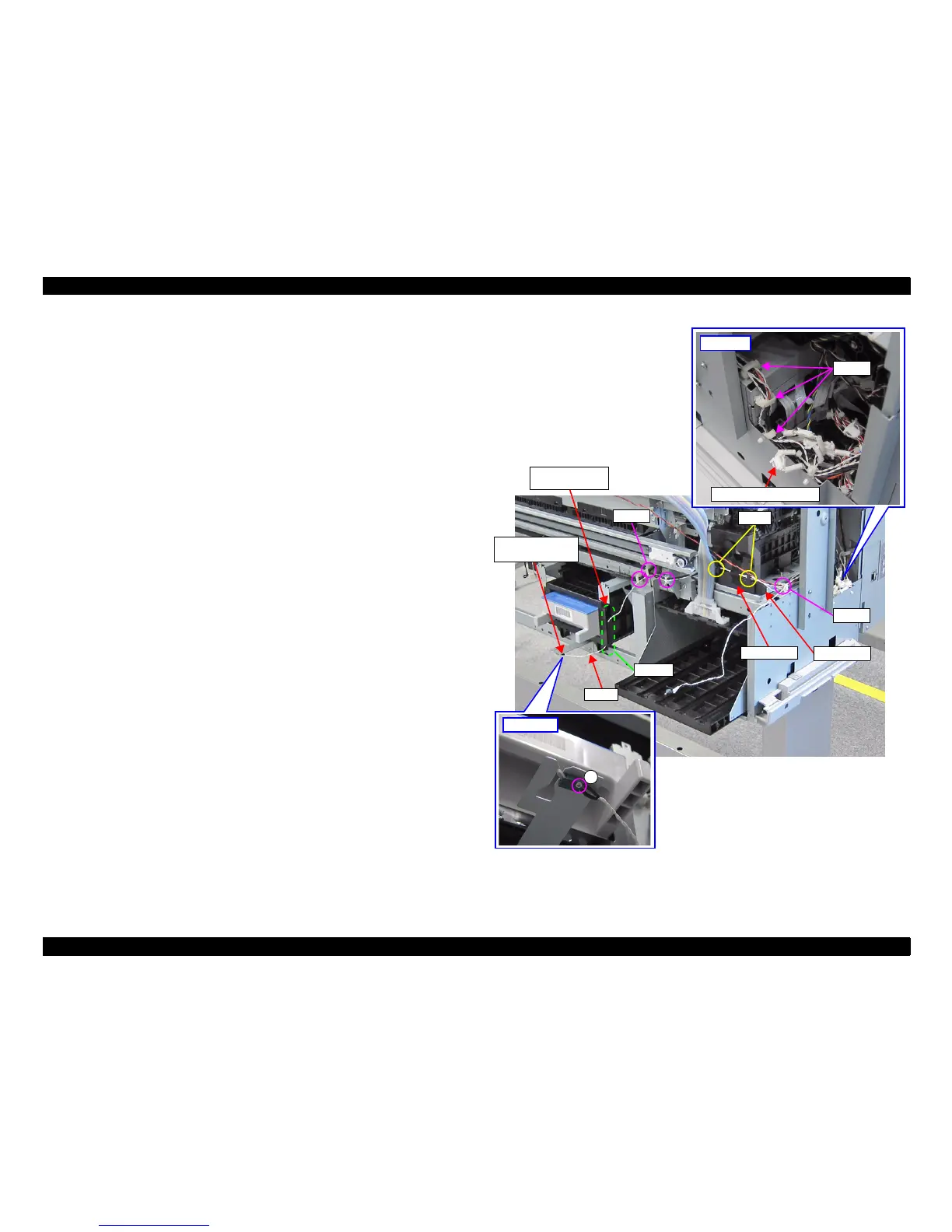

Figure 3-34. Removing the R WASTE INK COVER SENSOR
Clamps
Relay Connector (No.9)
Right side
A
Bottom side
R WASTE INK
COVER SENSOR
Maintenance Box
Holder
Cable
Groove
Clamp
Hooks
CR Spacer
Acetate tape
Clamp
