SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 122
Confidential
3.4.4 Carriage Mechanism / Ink System Mechanism
3.4.4.1 CR COVER
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the FRONT COVER. (p86)
6. Remove the LEFT UPPER COVER & LEFT ROLL COVER. (p101)
7. Remove the RIGHT UPPER COVER & RIGHT ROLL COVER. (p95)
8. Unlock the CR UNIT.(p83)
9. Move the CR UNIT on the Platen.
10. Remove the two screws, and remove the CR COVER.
A) Silver M3x8 P-tite screw with built-in washer: 2 pcs

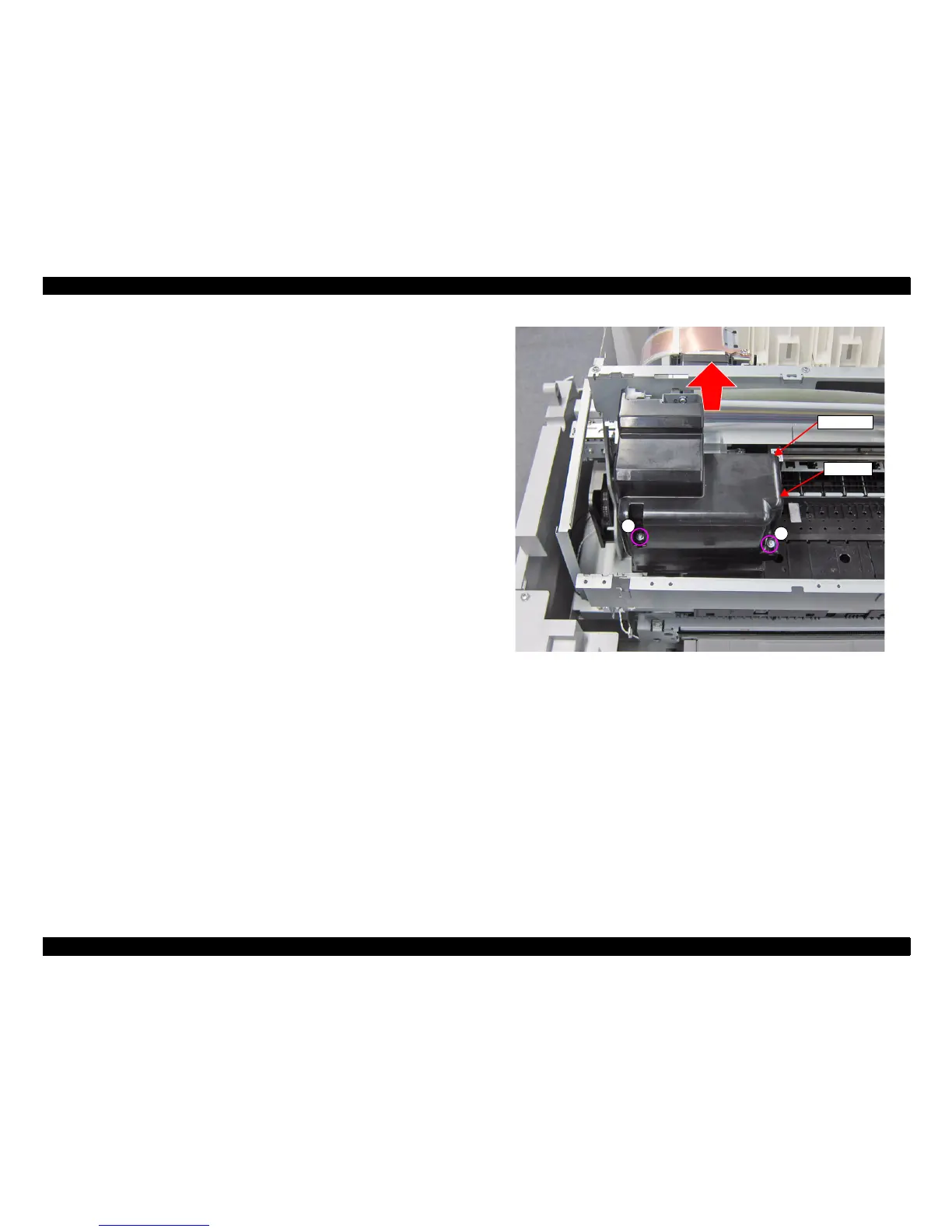

Figure 3-53. Removing the CR COVER
A
A
CR COVER
CR UNIT
