SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 135
Confidential
3.4.4.6 CR SCALE
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the FRONT COVER. (p86)
6. Remove the LEFT UPPER COVER & LEFT ROLL COVER. (p101)
7. Remove the RIGHT UPPER COVER & RIGHT ROLL COVER. (p95)
8. Unlock the CR UNIT. (p83)
9. Remove the two screws, and remove the CR Rear Frame.
A) Silver M3x6 S-tite screw with built-in washer: 2 pcs

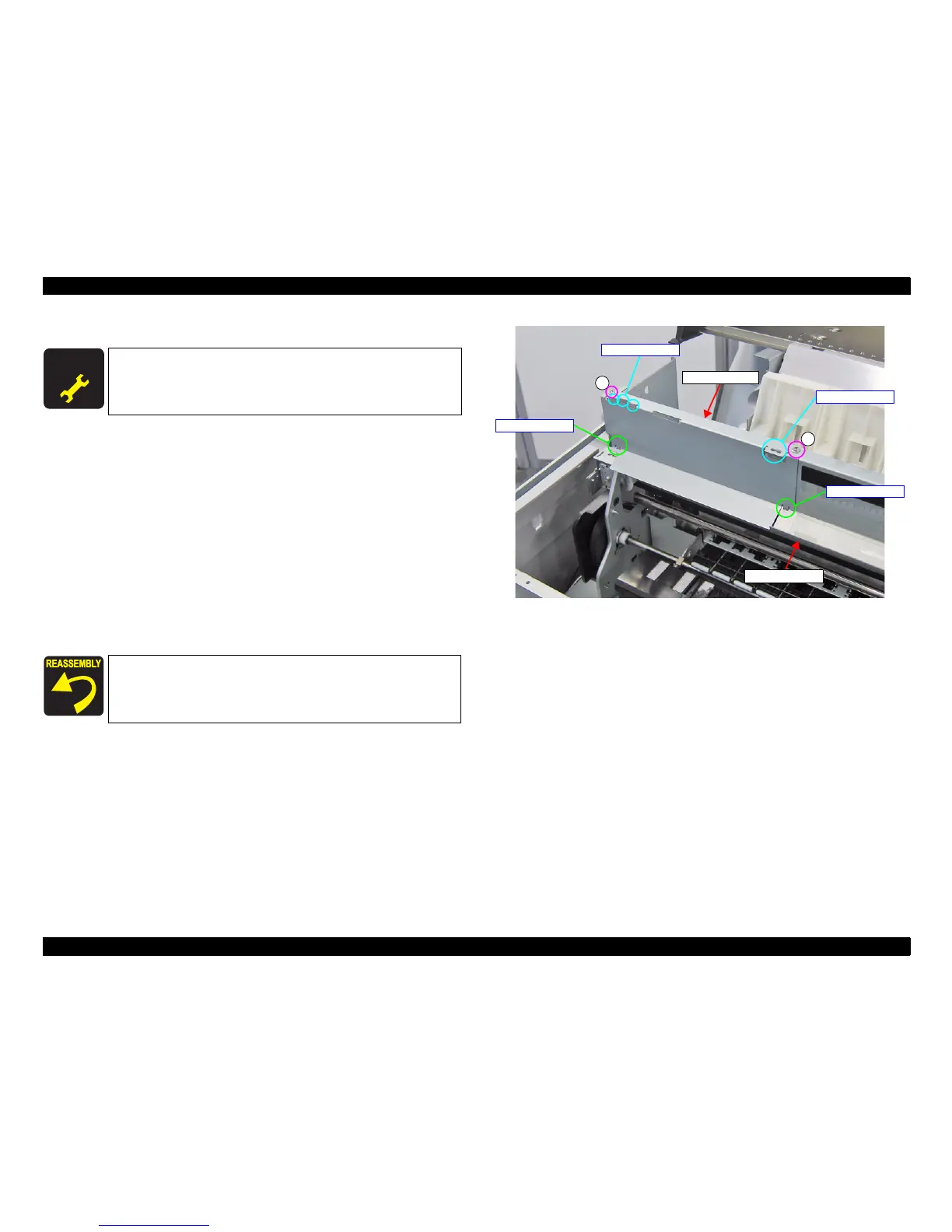

Figure 3-76. Removing the CR Rear Frame
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p199) and make sure to
perform the specified operations including required adjustment.
Pay attention to the positioning points (See Figure 3-76).
A
CR Rear Frame
A
Rear Tube Guide
Positioning point
Positioning point
Positioning point
Positioning point
