DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 183
Confidential
3.4.7 Fans
3.4.7.1 BOARD BOX FAN
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the RIGHT UPPER COVER & RIGHT ROLL COVER. (p95)
6. Remove the REAR RIGHT LOWER COVER. (p99)
7. Remove the PSH BOARD. (p118)
8. Remove the MAIN-B BOARD. (p113)
9. Remove the MAIN BOARD. (p111)
10. Release the cable from the three clamps.
11. Remove the two screws, and remove the Board Box Fan.
A) Silver M3x20 screw: 2 pcs

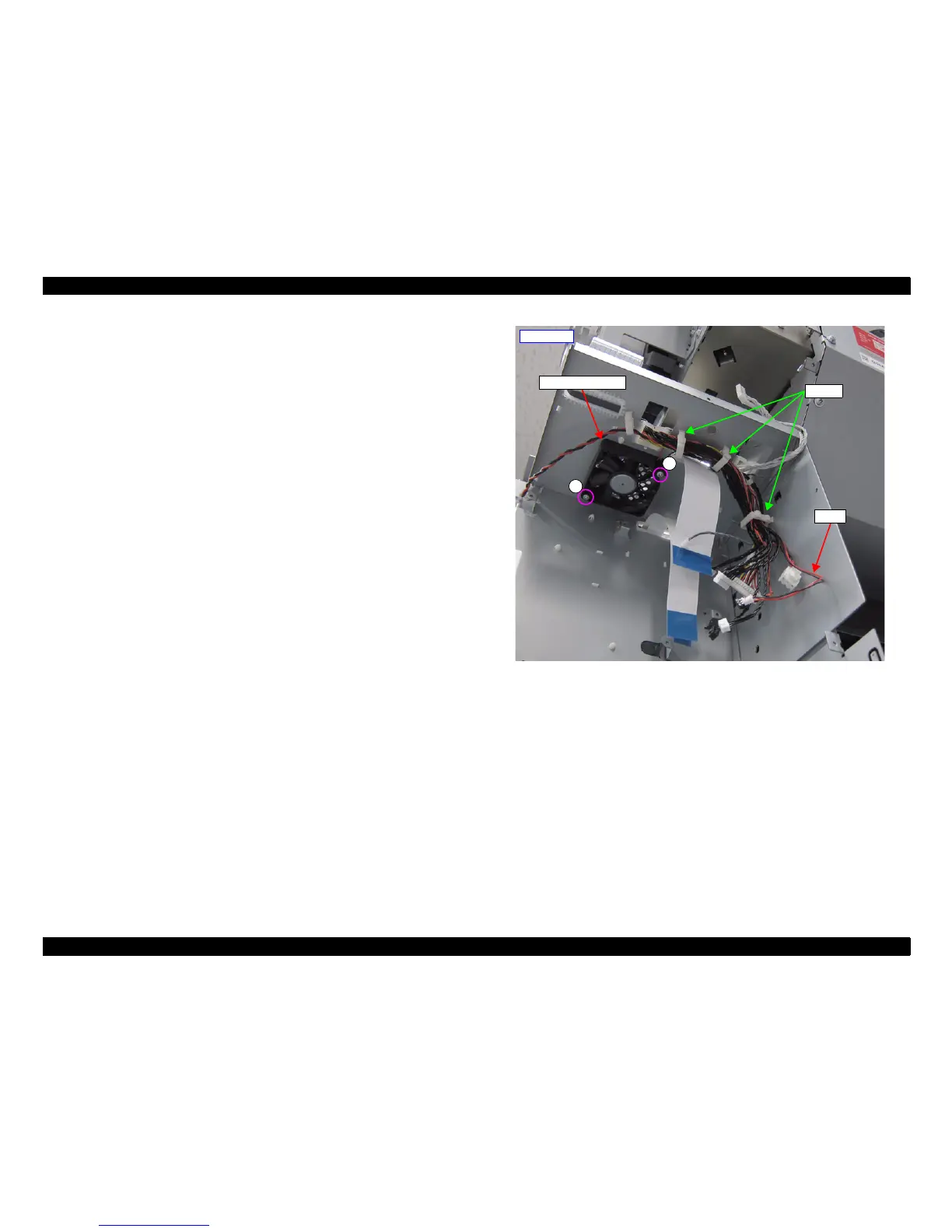

Figure 3-146. Removing the BOARD BOX FAN
Bottom side
A
A
BOARD BOX FAN
Cable
Clamps
