SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
ADJUSTMENT Head Related Checks and Adjustments 253
Confidential
4.11.5 Head Inclination Adjustment (CR direction)
The following two methods are provided.
 Automatic adjustment: An adjustment pattern is printed and scanned by the IM
SENSOR, and required adjustment level is displayed.
 Manual adjustment: Visually check the printed adjustment pattern, and determine
the required adjustment level.
The way to actually correct the head inclination according to the result obtained by any
of the above methods is the same.
PAPER USED
 Type: Premium Glossy Photo Paper (250)
 Size: 24 inches or longer
EXECUTION MODE
Normal mode
4.11.5.1 Head Inclination Auto Adjustment (CR direction)
1. Turn the printer ON.
2. Load the paper into the printer.
3. Start the Service Program and select Head inclination auto adjustment (CR
direction).
4. Click [Run].
The adjustment pattern will be printed.
5. The printed pattern is scanned by the IM SENSOR and the required adjustment
level (how much the adjustment knob should be turned) is displayed when the
adjustment is required.
6. Make the adjustment referring to 4.11.5.3Correcting Head Inclination (CR
direction) (Page 254).

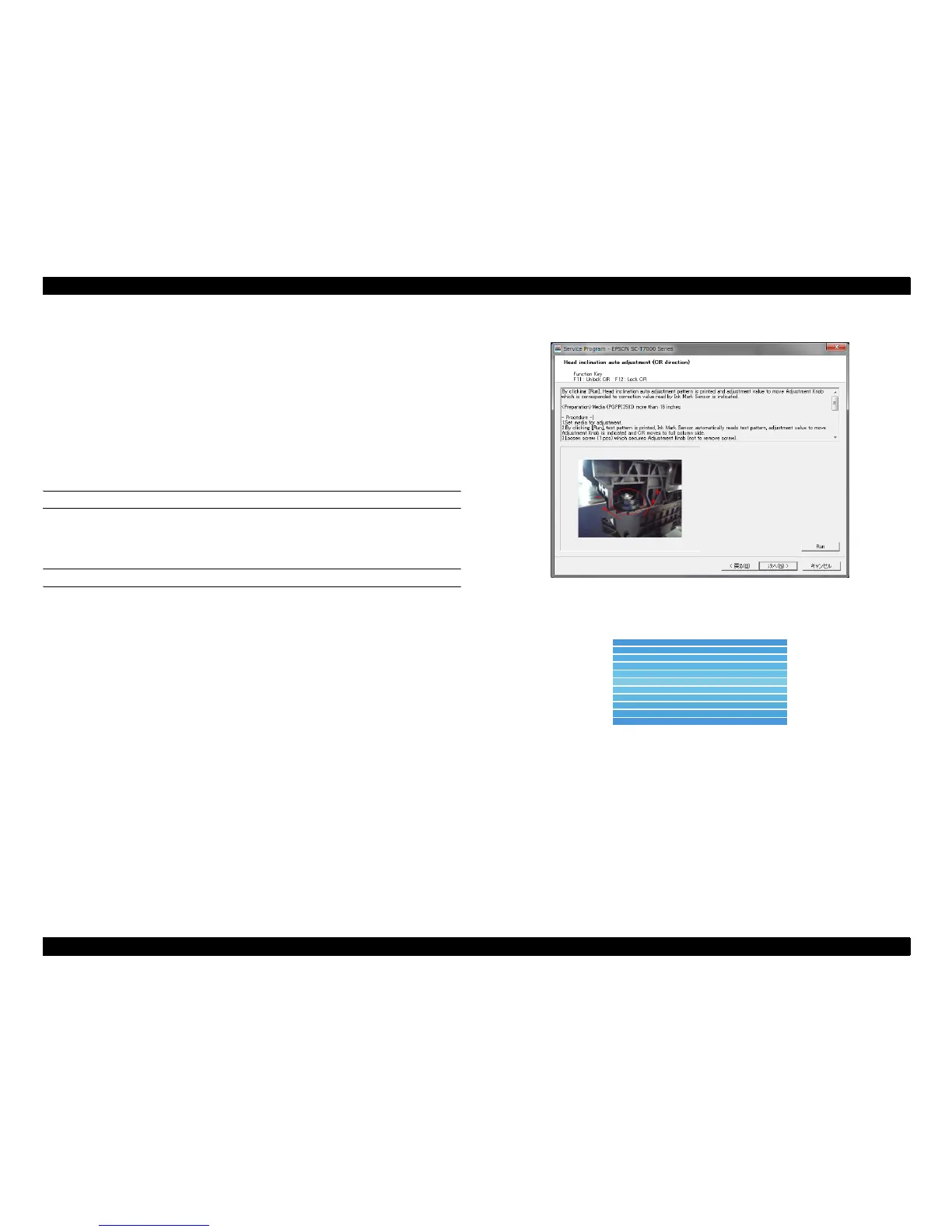

Figure 4-43. [Head inclination auto adjustment (CR direction)] Screen
Figure 4-44. Auto adjustment pattern
To Next Page
