SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
ADJUSTMENT Media Feed Related Checks and Adjustments 262
Confidential
4.13 Media Feed Related Checks and Adjustments
4.13.1 PF Belt Tension Check
REQUIRED TOOLS
 Sonic tensimeter U-507
 Any tools to flip the timing belt
STANDARD VALUE
 10 ± 3.5 N
EXECUTION MODE
Normal mode
PROCEDURE
1. Remove the following parts in advance.
îš„ LEFT UPPER COVER (P. 101)
îš„ LEFT LOWER COVER (P. 98)
2. Loosen the two screws that secure the PF motor mounting plate.
3. Move the mounting plate back and forth three times to soften the PF TIMING
BELT.
4. Tighten the two screws to secure the mounting plate.

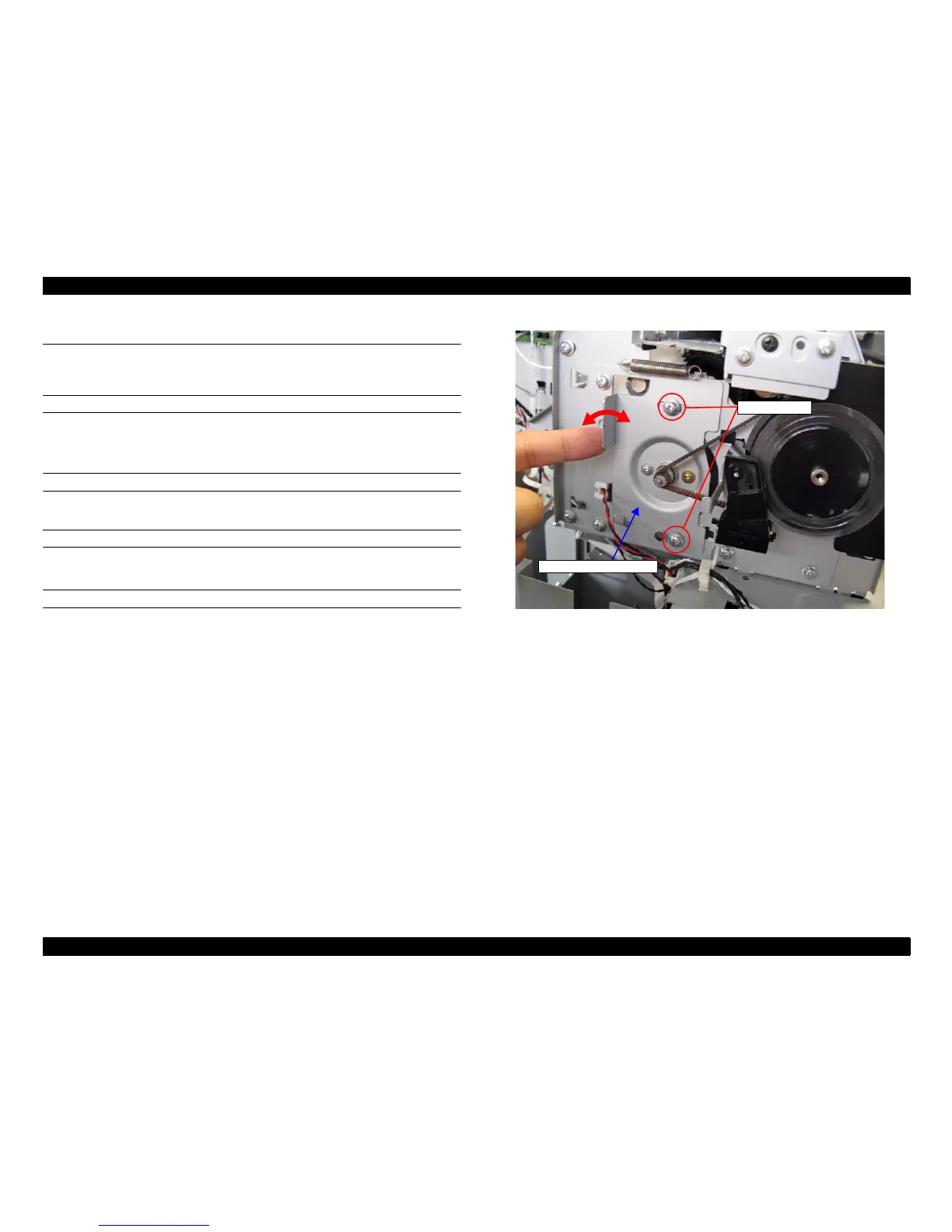

Figure 4-57. Softening the PF TIMING BELT
PF motor mounting plate
Fixing screws
To Next Page
