4.10 CR Related Adjustments
4.10.1 CR Belt Tension Check
REQUIRED TOOLS
 Sonic tensimeter U-507
 Something to flip the belt
STANDARD VALUE
 SC-T7000 Series/SC-T5000 Series
23 ± 2 N
 SC-T3000 Series
13 ± 2 N
EXECUTION MODE
Normal mode
PROCEDURE
1. Remove the following part in advance.
îš„ RIGHT UPPER COVER (P. 95)
îš„ LEFT UPPER COVER (P. 101)
2. Turn the printer ON.
3. When any paper is loaded, remove it.
4. Start the Service Program and select CR Belt Tension Check.
5. Click [Run]. The CR UNIT moves left and right three times, and then moves to
the adjustment position.

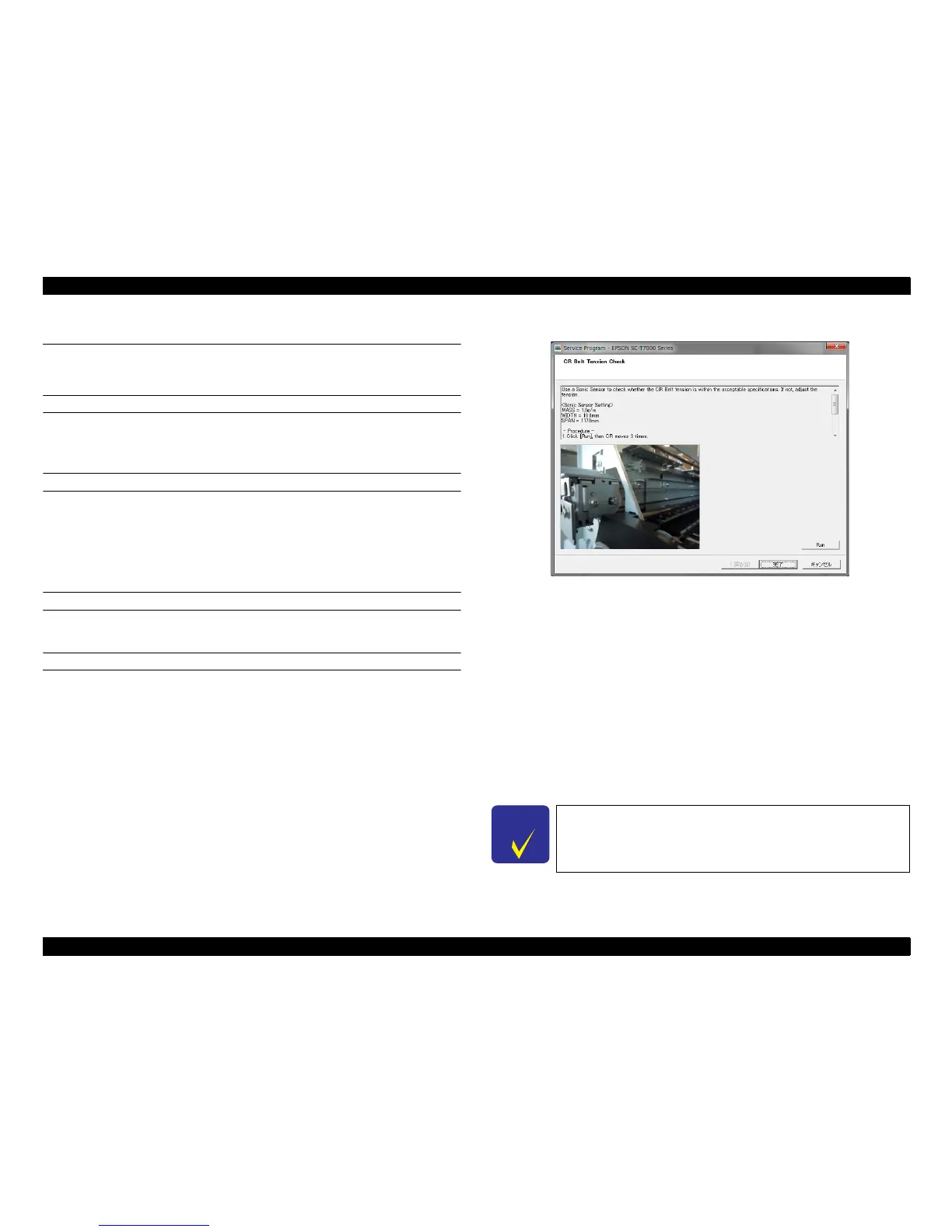

Figure 4-14. [CR Belt Tension Check] Screen
6. Input the following values to the tensimeter.
îš„ SC-T7000 Series/SC-T5000 Series
z MASS: 1.0 g/m
z WIDTH: 8.0 mm/R
z SPAN: 300 mm
îš„ SC-T3000 Series
z MASS: 1.0 g/m
z WIDTH: 5.5 mm/R
z SPAN: 300 mm
7. Bring the microphone of the tensimeter closer to the position shown in Figure
4-15.
C H E C K
P O I N T
Bring the microphone within 5 mm from the belt but do not let it
touch the belt.
