Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 95
Confidential
3.4.2.9 RIGHT UPPER COVER & RIGHT ROLL COVER
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the six screws, and remove the RIGHT UPPER COVER & RIGHT
ROLL COVER.
A) Silver M4x12 P-tite screw with washer: 1 pcs
B) Silver M3x10 P-tite screw with washer: 2 pcs
C) Silver M3x8 S-tite screw with built-in washer: 3 pcs

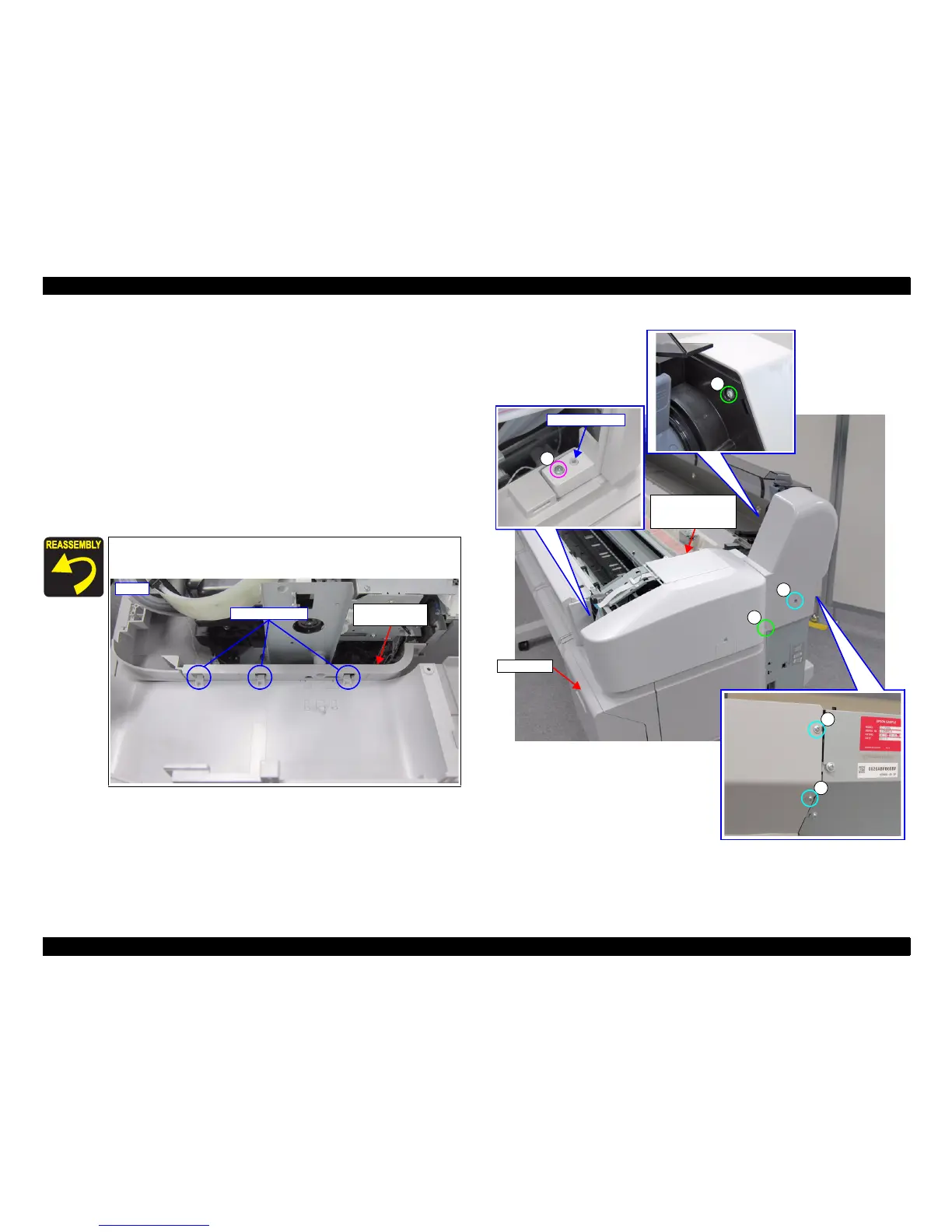

Figure 3-22. Removing the RIGHT UPPER COVER & RIGHT ROLL COVER
Pay attention to the positioning points (See below figure, Figure
3-22).
RIGHT LOWER
COVER
Inside
Positioning points
B
A
Positioning point
C
C
RIGHT UPPER
COVER & RIGHT
ROLL COVER
C
B
IH COVER
