DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 150
Confidential
17. Remove the four screws that secure the IC HOLDER.
B) Silver M3x6 S-tite screw with built-in washer: 4 pcs
18. Pull the IC holder slightly toward you.

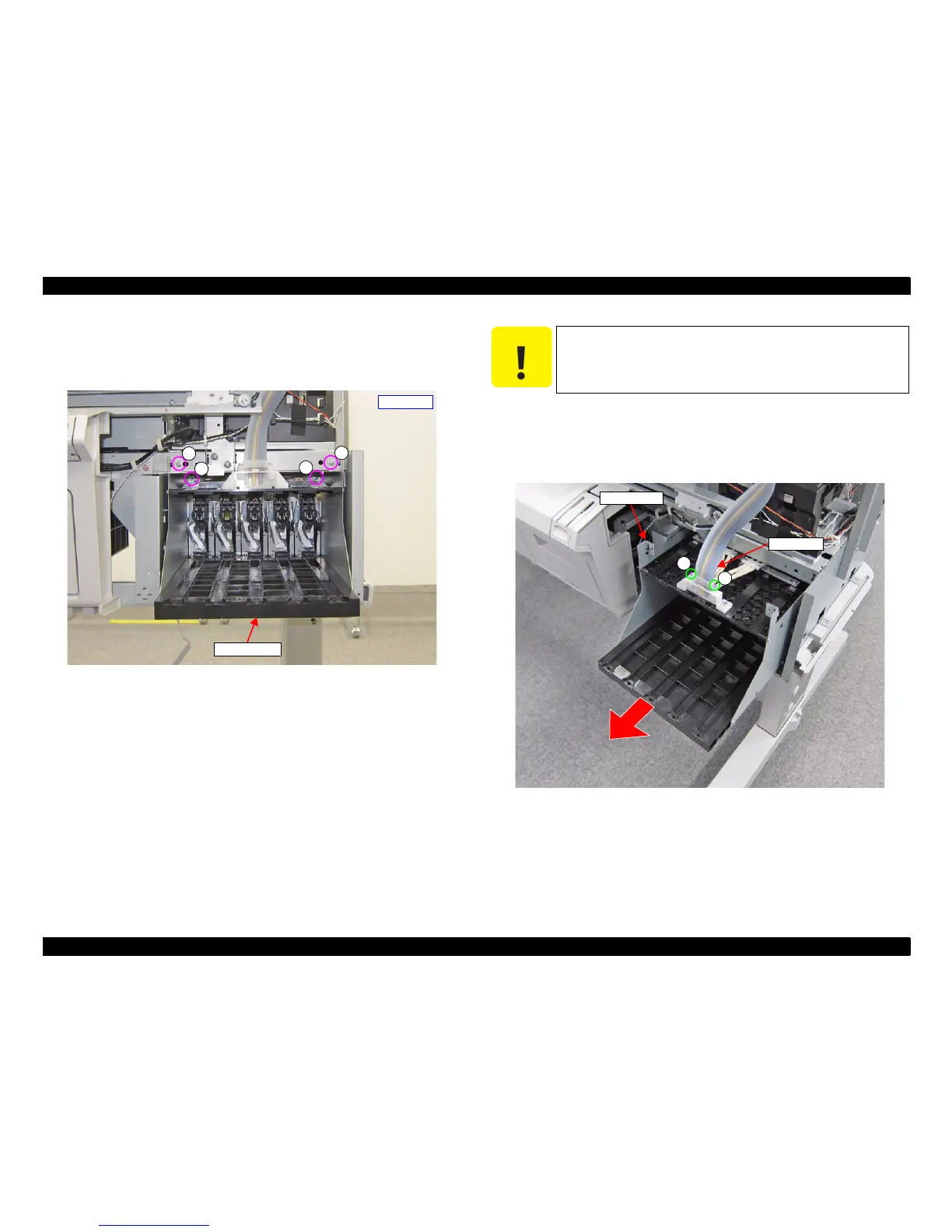

Figure 3-99. Removing the IC HOLDER (1)
19. Remove the two screws, and remove the INK TUBE from the IC HOLDER.
C) Silver M2.5x16 Machine screw: 2 pcs
20. Remove the IC HOLDER while pulling out the FFC.
Figure 3-100. Removing the IC HOLDER (2)
B
B
B
B
IC HOLDER
Front side
C A U T I O N
When the INK TUBE is removed at the following step, ink may
drip off from the tube. Prepare a waste cloth or the like in advance
and be careful not to contaminate the surroundings.
IC HOLDER
INK TUBE
C
C
