Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 153
Confidential

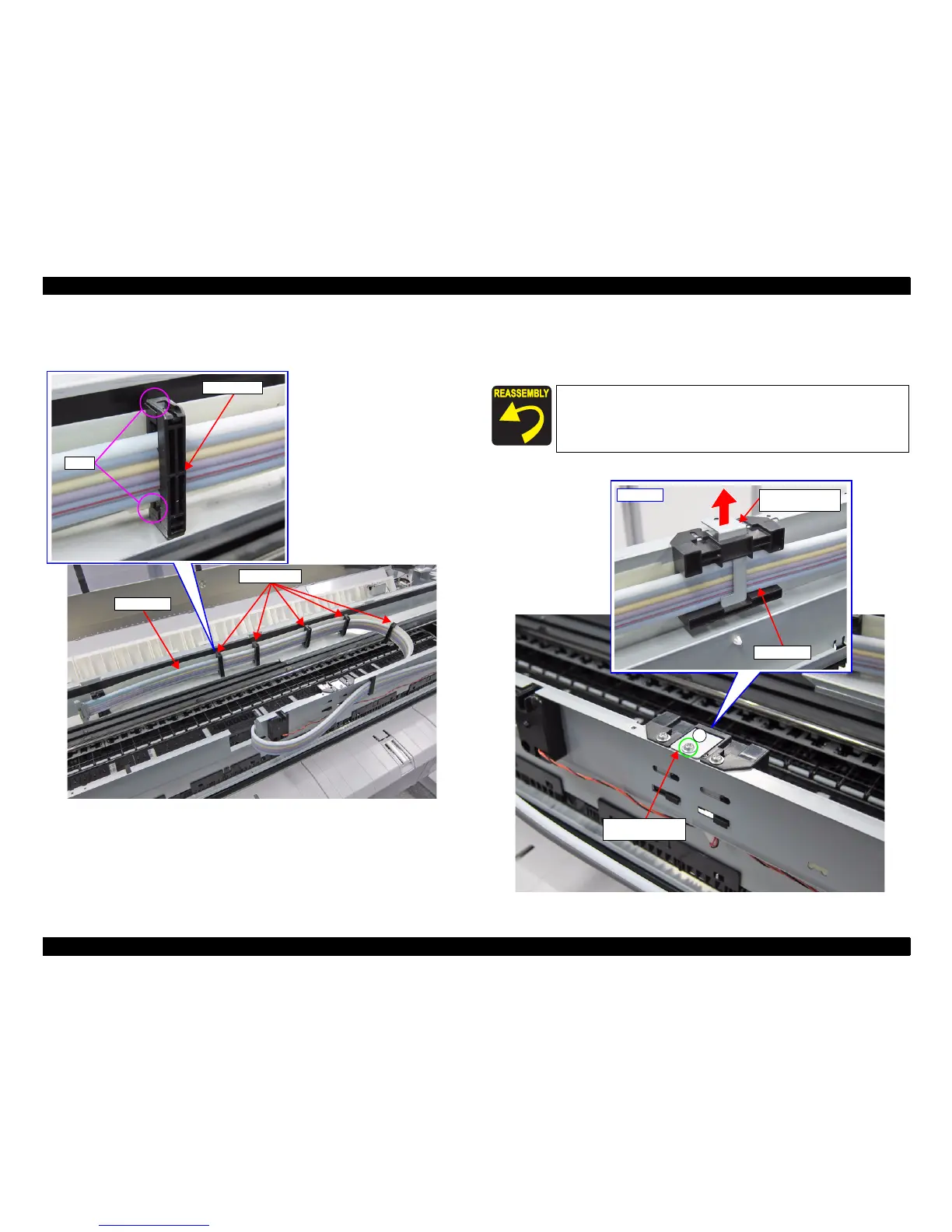

16. Disengage the two each hooks on the five Tube Holders, and release the INK
TUBE.
Figure 3-102. Removing the INK TUBE (Left side)
17. Remove the screw and release the INK TUBE by lifting the Front Tube fixing
Plate.
B) Silver M3x6 S-tite screw with built-in washer: 1 pcs
Figure 3-103. Releasing the INK TUBE (Front side)
Tube Holder
Hooks
Tube Holders
INK TUBE
Take care not to press the INK TUBE flat with the Front Tube
fixing Plate.
INK TUBE
Back side
Front Tube fixing
Plate
B
Front Tube fixing
Plate
