SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
ADJUSTMENT CR Related Adjustments 236
Confidential

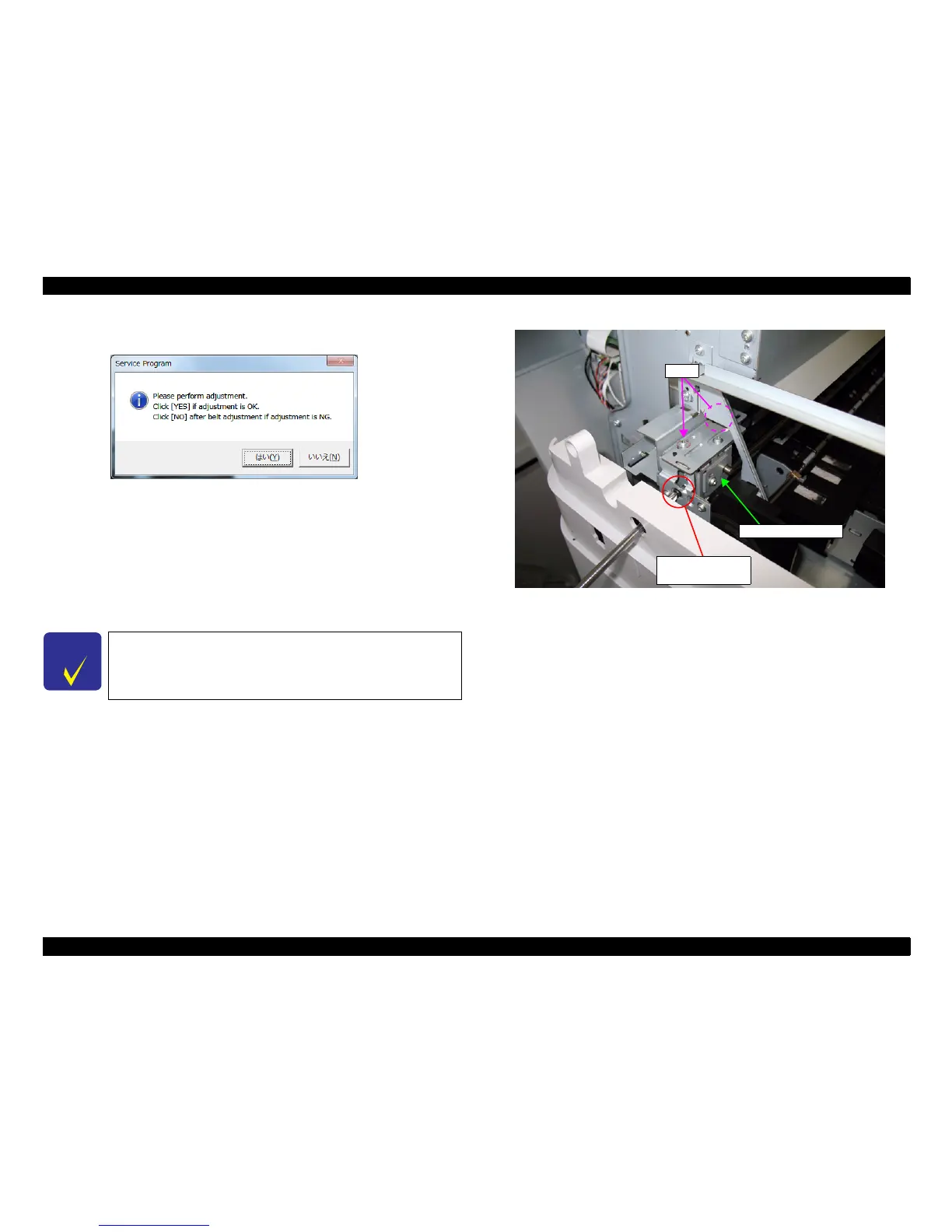

12. Click [No] on the program screen.
Figure 4-16. Adjustment message
13. Loosen the two screws that secure the driven pulley holder.
14. Turn the adjustment screw to adjust the belt tension.
îš„ If larger than standard value: Turn the screw counterclockwise.
îš„ If smaller than standard value: Turn the screw clockwise.
After adjusting the tension, tighten the screws loosened in Step 12, and then back
to Step 7.
Figure 4-17. Tension adjustment screw
C H E C K
P O I N T
The tension is changed about 1.5N by turning the adjusting screw
for a quarter turn.
Driven pulley holder
Tension adjustment
screw (black)
Screws
To Next Page
