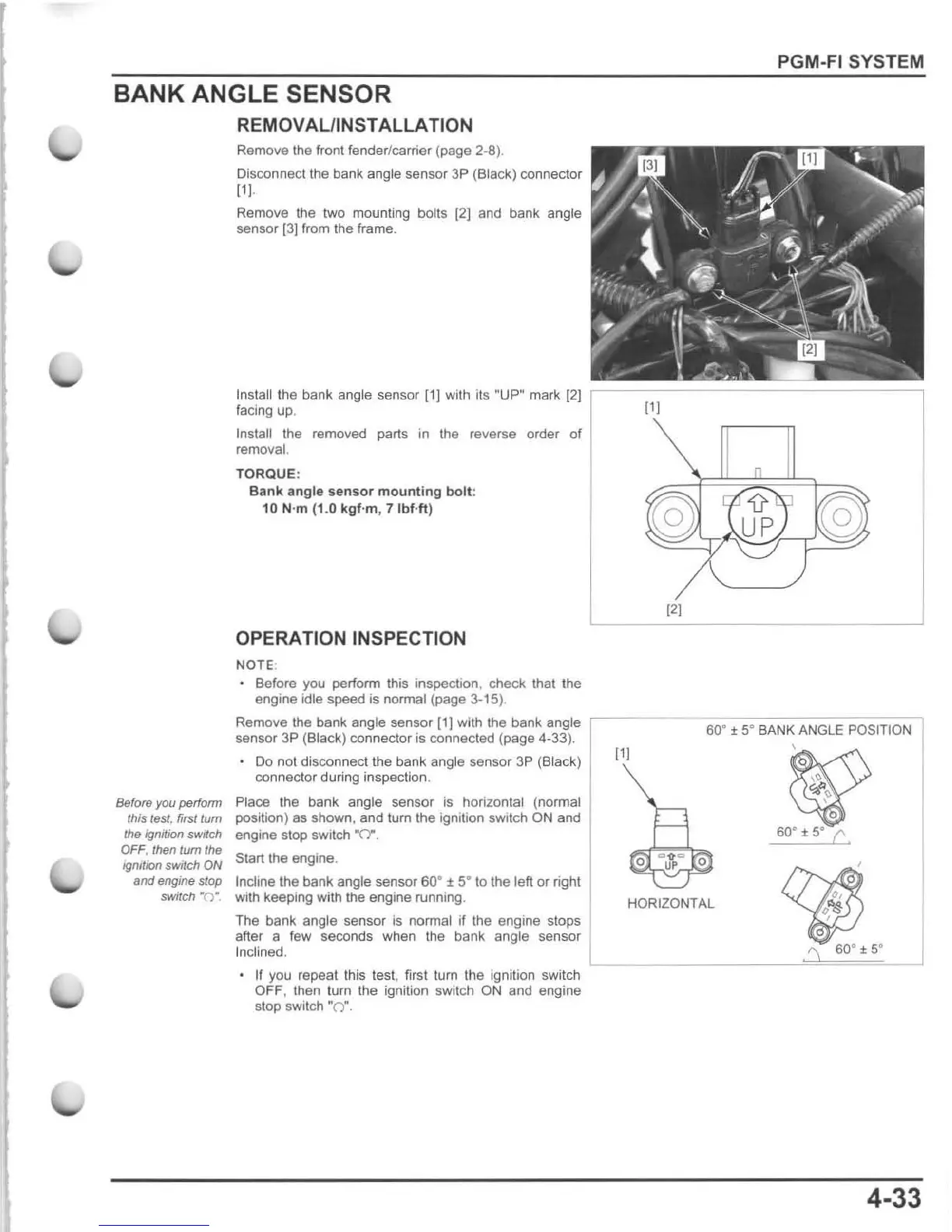

BANK ANGLE SENSOR
REMOVAL/IN
STALLA
n
ON
Befora you perform
this test. first tum
the Ignition switch
OFF, then tum Ihe
Ignition
switch ON
Remove the front fender/carrier (page 2·6).
Disconnect the
bank
angle
sensor
3P (Black)
connector
[1
1·
Remove the two mounting bolts [2] and bank angle
sensor
[3J
from the frame.
Inslalilhe
bank angle sensor [1] with its
MUpM
mark [2]
facing
up
. It I
Install the removed parts in the reverse order
of
removal.
TORQUE:
Bank
angle
sensor
mounting
bolt
:
10 N·m (1.0
kgf
·m ,
7lbHt)
OPERAT[ON INSPECTION
NOTE
• Before you perform this inspectJon. ch
eck
that the
engine idle speed is normal (page
3·15)
.
Remove the
bank
angle
sensor
[1) with the bank angle
,--
sensor
3P
(Black) connector is connected (page
4-33
).
• Do
not
disconnect the bank angle sensor 3P (Black)
connector during inspection.
Place the bank angle sensor
is
horizontal (normal
position)
as
shown, and turn the ignition
SWitch
ON and
engine stop switch
orr.
Start the engine.
Incline the bank angle sensor 60- ± 5- to the left or right
[lJ
PGM·
FI
SYSTEM
[21
60· ± 5° BANK ANGLE POSITION
and
engine stop
swirch ·0 ·
with keeping wi
th
the engine running. l
HORIZONTAL
9/!
' '
.
"Ii
The bank angle sensor is normal if the engine stops
after a few seconds when the bank
angle sensor
Inclined.
If
you repeat this test, first turn the ignition switch
OFF, then turn the ignition switch
ON
and engine
stop
SWi
t
ch
RO
".
,
'\
60· ± 5·
4·33
