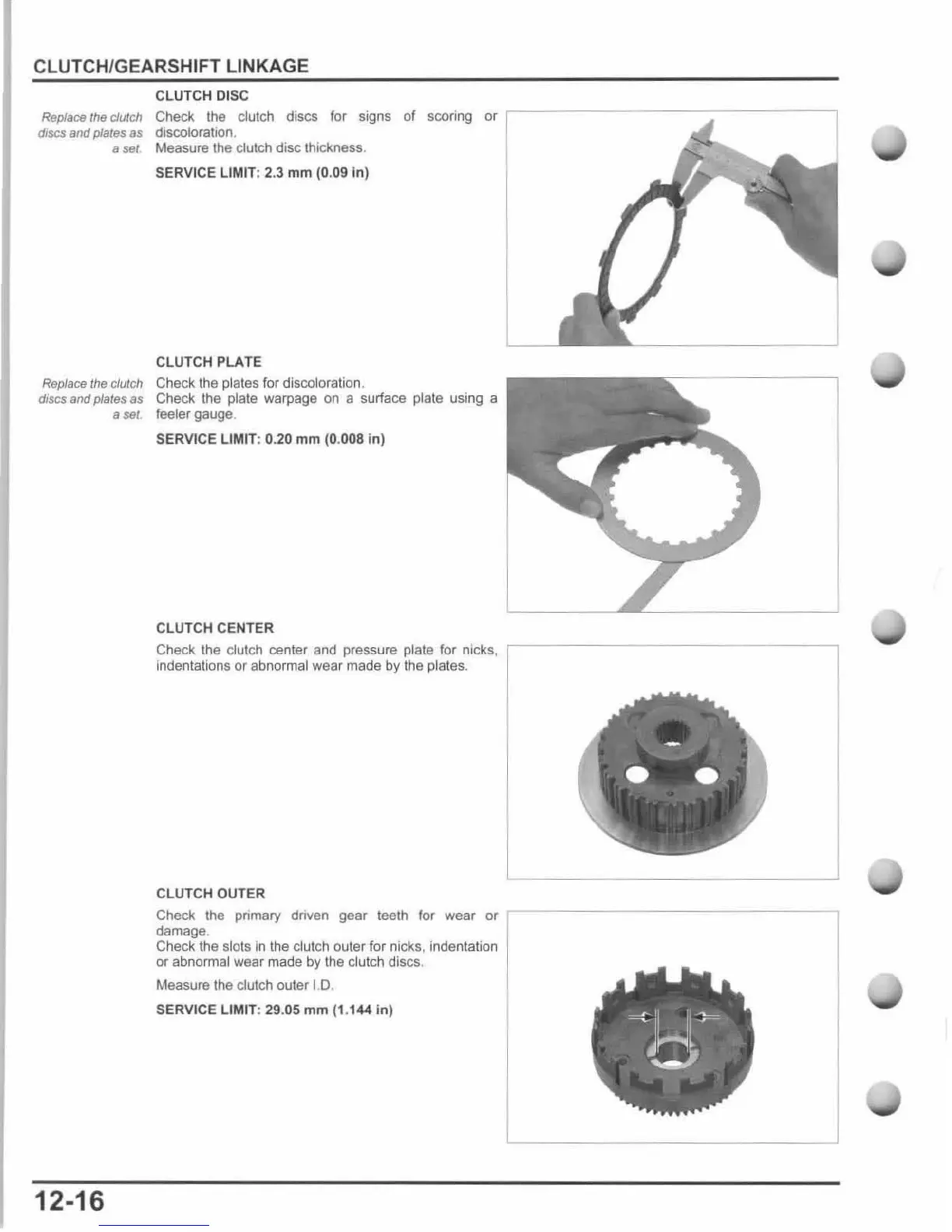

CLUTCH/GEARSHIFT LINKAGE
CLUTCH DISC
Replace
the
clutch Check the clutch discs for signs of scoring
discs and plales
as
discoloration.
0'
I
s set Measure the clutch disc thickness.
SERVICE LIMIT: 2.3
mm
(0.09 in)
CLUTCH
PLATE
Replace the clutch Check the plates for discoloration.
diSCS
and
plates
as
Check the plate warpage
on
a surface plate using a
a
sel
feeler gauge.
12-16
SERVICE LIMIT: 0.20 mm (0.008
in)
CLUTCH
CENTER
Check the clutch center and pressure plate for nicks,
Indentations or abnormal wear made by the plates.
CLUTCH
OUTER
Check the pnmary driven gear teeth for wear
or
r--
-
----------
-
---,
damage.
Check the slots in the
du
t
ch
ou
ter for nicks, indentation
or
abnormal wear made
by
the clutch discs.
Measure the clutch outer I D.
SERVICE LIMIT: 29.05
mm
(1
.144 in)
