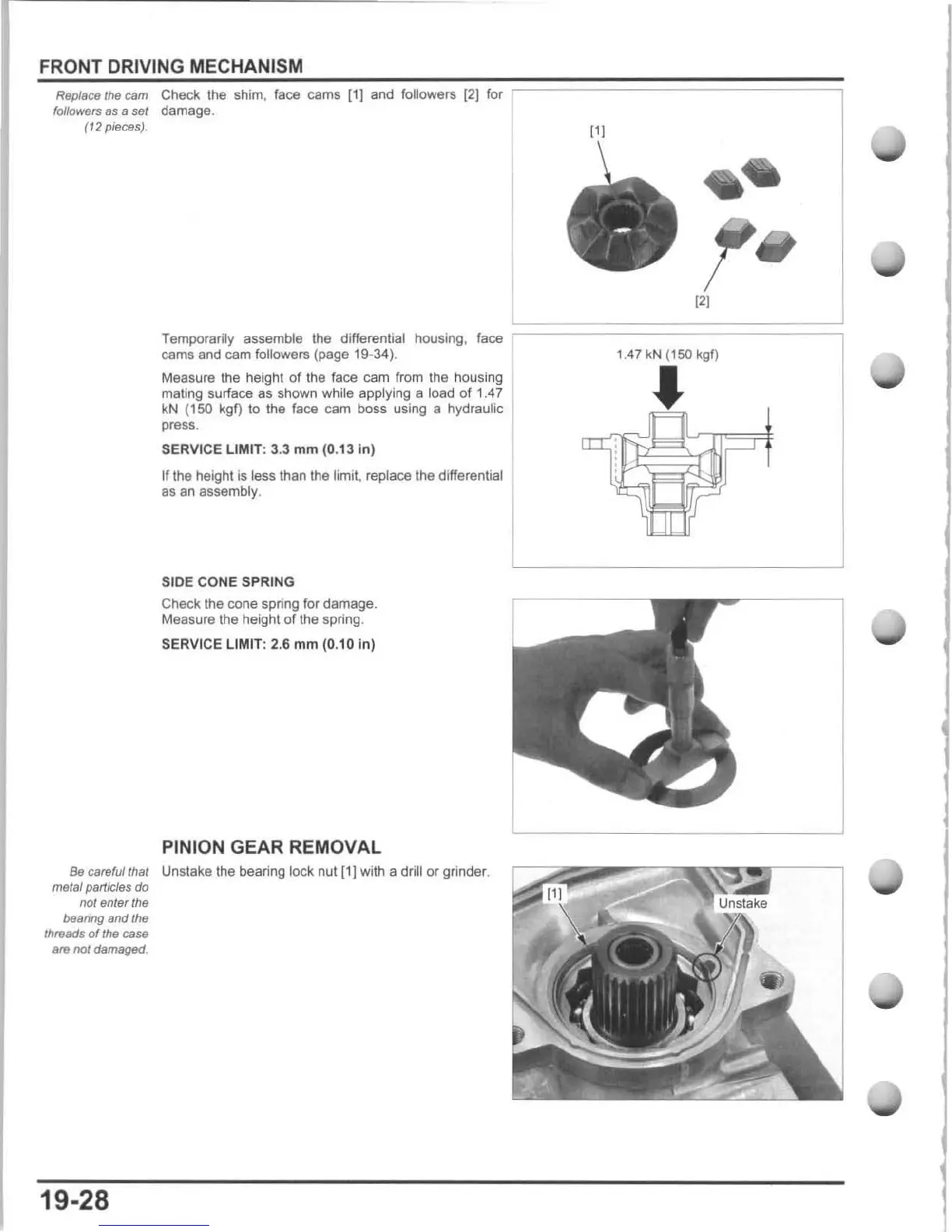

FRONT DRIVING MECHANISM
Rep/ace
the
cam
Check
the
shim, face cams (1] and followers
[21
for
followers
as
a set
damage
.
(12 pieces).
Temporarily assemble the differential housing, face
cams and cam followers (page 19-34
).
Measure
the
height of the face cam from the housing
mating surface as shown while applying a load
of
1.4 7
kN
(150 kgf)
to
the
face cam boss using a hydraulic
press.
SERVICE LIMIT: 3.3
mm
(0.13 in)
If the height is less than the limit, replace the differential
as an assembly.
SIDE CONE SPRING
Check
the cone spring for damage.
Measure the height
of
the spring.
SERVICE LIMIT: 2.6
mm
(0.
10
in)
PINION GEAR REMOVAL
Be
careful
that
Unslake the bearing lock nut [1] with a drill or grinder.
me/al particles
do
not
enter
the
bearing
and
/he
threads
of
the case
are not damaged.
19-28
12J
1.47
kN
(1sa kgf)
•
To Next Page
